Summary of Contents for Asuka BK-302
- Page 1 BK-302/301 Star Vision Driving Recorder User Manual...
-
Page 2: Table Of Contents
Table of Contents I. Product Overview: ....................3 II. Contents of Package: ....................3 III. Unit Description: ..................... 4 III.1 Main Unit ......................4 III.2 Rear Camera (Optional accessory) ..............5 IV. System Overview: ....................5 V. Installation: ......................5 VI. -
Page 3: Product Overview
I. Product Overview: Thanks for choosing BK-301 Star Vision Driving Recorder. BK-301 is a high- performance automotive driving recorder, offering full HD high resolution at both front and rear cameras, allowing you to record the evidence of an unexpected accident. It features with very high dynamic range (HDR) and ultra-high ISO from Sony Starvis CMOS sensor, rendering it can achieve outstanding day &... -
Page 4: Unit Description

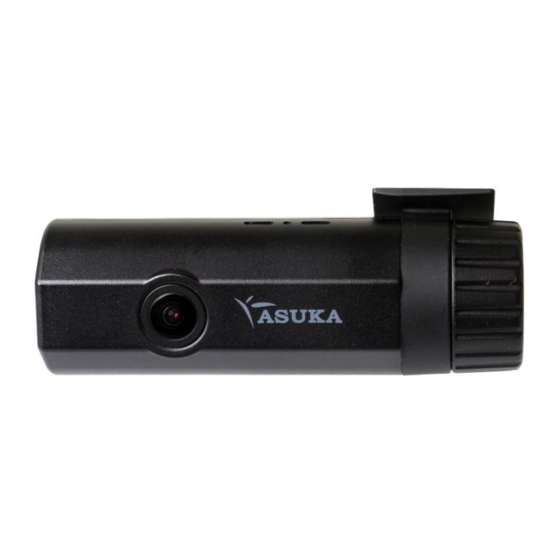

III. Unit Description: III.1 Main Unit Adjustable Stand Rear Camera input port Front Lens Power & A/V port Button Keys Micro-SD Card slot Start/Stop Emergency Recording Mode 2-color LED Buttons description: Press for 3 Seconds to format the SD Card Swift on/off the Sound Recording Press to turn on the time-lapse recording LED status indicators:... -
Page 5: Iii.2 Rear Camera (Optional Accessory)

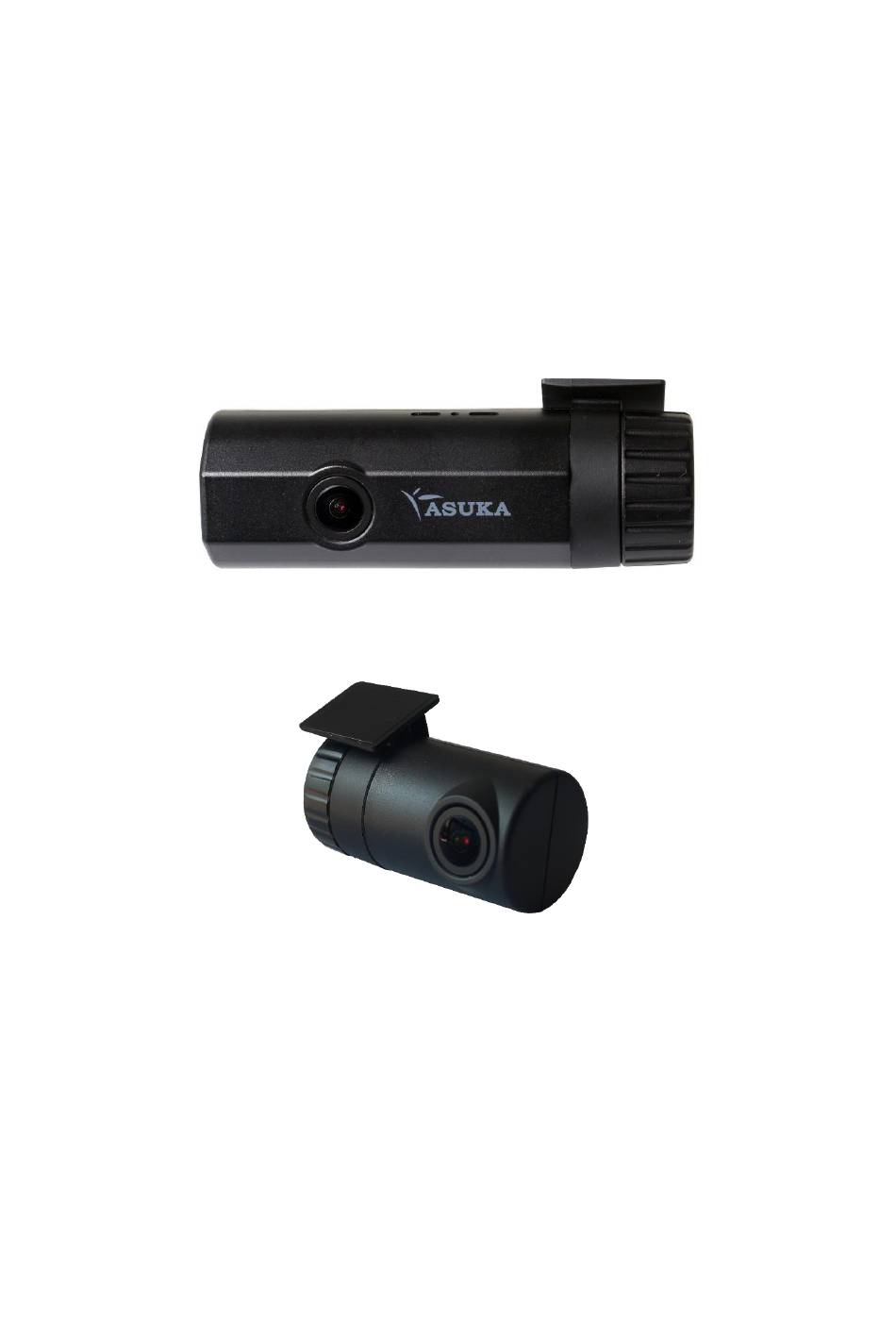

III.2 Rear Camera (Optional accessory) Rear Lens Adjustable Stand Camera output port IV. System Overview: This BK-301 intends to work in adjunction with any in-car head unit that provides USB port. The system configuration is illustrated below, in which the BK-301 output is connected to the USB port of the target head unit. - Page 6 Step 2. Assemble BK-301. 1. Assemble BK-301 first. 2. Remove the yellow paper of double-sided tape and paste it with BK-301. 3. Insert SD memory card. Micro-SD Card slot Step 3. Stick BK-301 on the target area. Remove the other side of double-sided tape and stick it onto the windshield. Windshield Note: As the double-sided tape cannot be re-pasted, please make sure the position before you paste the...
-
Page 7: Installation Of The App
Step 1. Download the Drive Recorder APP. Download the drive recorder APP from ASUKA official website to the USB. Step 2. Install the APP. Insert the USB with drive recorder APP, press “download” to install the APP. -
Page 8: User Interface Description
VII. User Interface description: Back View Front View ① ② ③ ④ ⑤ ⑨ ⑥ ⑦ ⑧ Current record time Display length of the current recording. The number of emergency recording file/ Total number of emergency recording files Voice recording indicator Indicates if voice recording is on or off. -
Page 9: System Setting
VIII. System Setting: Resolution Set the resolution to: 1080p 30fps; or 720p 30fps. Microphone ON/OFF Turn voice recording function on/off. Watermark ON/OFF Turn watermark on/off. Time-lapse emergency recording Turn time-lapse emergency recording on/off. Normal emergency recording Turn normal emergency recording on/off. G-sensor sensitivity Set the collision detection level to High, Middle, or Low. - Page 11 Features: 1. Suitable for all personal vehicle. 2. Small size, easy installation, and dismount, it does not affect the driver’s line of sight. 3. Insert the card and power on to start recording without additional operating. 4. Recording driving condition and display on the screen directly. 5.
