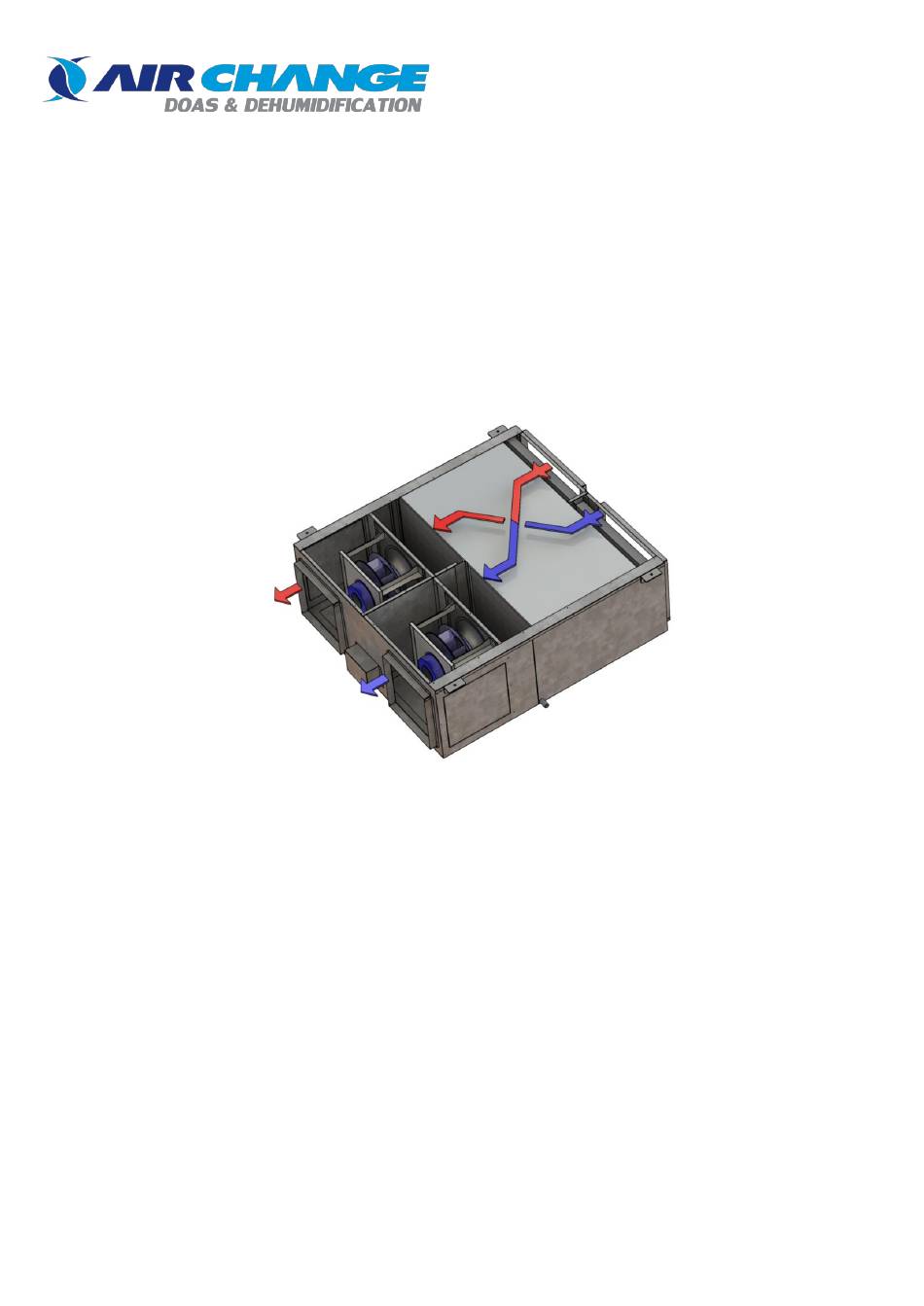

INSTALLATION AND MAINTENANCE MANUAL
In-Ceiling Energy Recovery Ventilator
with EC Plug Fans
Model: ERV-IC ECP
VERSION 2021
1
Cooke Industries - Phone: +64 9 579 2185
Email: sales@cookeindustries.co.nz
Web: www.cookeindustries.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERV-IC ECP and is the answer not in the manual?

Questions and answers

Summary of Contents for Air Change ERV-IC ECP

  • Page 1 Air Change Australia Pty Ltd ABN 53 121 537 620 2 Ashford Avenue, Milperra NSW 2214 PO Box 252, Milperra NSW 1891 Phone (02) 8774 1400 (02) 8774 1490 Email sales@airchange.com.au Website www.airchange.com.au INSTALLATION AND MAINTENANCE MANUAL In-Ceiling Energy Recovery Ventilator...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS 4.1 Schematic Dimensional Data 4.2 Electrical Diagrams SERVICE & MAINTENANCE 5.1 Heat Exchangers - Air Change Enthalpy Heat exchangers 5.1.1 Enthalpy Heat exchanger Maintenance 5.2 Fan Access and Filter Access Cooke Industries - Phone: +64 9 579 2185 Email: sales@cookeindustries.co.nz...
  • Page 3 Air Change Australia Pty Ltd ABN 53 121 537 620 2 Ashford Avenue, Milperra NSW 2214 PO Box 252, Milperra NSW 1891 Phone (02) 8774 1400 (02) 8774 1490 Email sales@airchange.com.au Website www.airchange.com.au 5.3 Maintenance Schedule 5.3.1 General 5.3.2 Monthly Maintenance Schedules.
  • Page 4 Improper installation, service, maintenance or use can cause fire, electrical shock or other conditions which may cause personal injury or property damage and will void the warranty. Check with Air Change or nearest Air Change dealer for any information required on this equipment.
  • Page 5 • The unit should be inspected upon delivery for possible external damage incurred during transport. If damage is evident it should be noted on the freight docket and the Air Change sales office contacted. A claim should be lodged with shipping company within three (3) days if shipment is damaged or incomplete.

  • Page 6: Installation

    Air Change Australia Pty Ltd ABN 53 121 537 620 2 Ashford Avenue, Milperra NSW 2214 PO Box 252, Milperra NSW 1891 Phone (02) 8774 1400 (02) 8774 1490 Email sales@airchange.com.au Website www.airchange.com.au • For further guidance on safe lifting, see the National Occupational Health and Safety Commission Manual Handling documentation.
  • Page 7 Air Change Australia Pty Ltd ABN 53 121 537 620 2 Ashford Avenue, Milperra NSW 2214 PO Box 252, Milperra NSW 1891 Phone (02) 8774 1400 (02) 8774 1490 Email sales@airchange.com.au Website www.airchange.com.au • Unit inlet and outlet connections are as follows. The unit can be handed either way.
  • Page 8 Air Change Australia Pty Ltd ABN 53 121 537 620 2 Ashford Avenue, Milperra NSW 2214 PO Box 252, Milperra NSW 1891 Phone (02) 8774 1400 (02) 8774 1490 Email sales@airchange.com.au Website www.airchange.com.au • Mains cables and control circuit wires are to be connected as per wiring diagram and all wiring must comply with relevant local wiring rules.
  • Page 9 Air Change Australia Pty Ltd ABN 53 121 537 620 2 Ashford Avenue, Milperra NSW 2214 PO Box 252, Milperra NSW 1891 Phone (02) 8774 1400 (02) 8774 1490 Email sales@airchange.com.au Website www.airchange.com.au 2.4 Ducting • Ducts should be fitted to the Supply Air, Exhaust Air, Return Air and Fresh Air inlet.

  • Page 10: System Components

    80% on the cost of heating or cooling the outdoor air. 3.4 Filters • Air Change ERV-IC ECP units incorporate internal panel filters for the outdoor air and the return air. Refer to the separate unit drawings for filter sizes.

  • Page 11: Service And Maintenance

    Any tampering with the heat exchanger may invalidate our warranty and Air Change will not be held responsible for lack of performance or pressure drop.
  • Page 12 Air Change Australia Pty Ltd ABN 53 121 537 620 2 Ashford Avenue, Milperra NSW 2214 PO Box 252, Milperra NSW 1891 Phone (02) 8774 1400 (02) 8774 1490 Email sales@airchange.com.au Website www.airchange.com.au 5.2 Fan Access and Filter Access WARNING: Always disconnect line voltage before servicing electrical equipment.

  • Page 13: Maintenance Schedule

    • Preventative maintenance programs will vary according to actual working conditions and location and hours of usage by the client. • Air Change will be pleased to provide expert advice on special service requirements for particular installations. IMPORTANT: Failure to carry out regular maintenance may render warranty claims invalid if faults have been caused by lack of proper maintenance.

  • Page 14: Troubleshooting Guide

    Your equipment is a major investment and will last for many years if properly maintained and serviced. Air Change Australia Pty Ltd will only accept a completed warranty card [issued in each manual] or a copy of the original invoice complete with matching serial numbers as proof of purchase.

  • Page 15: Warranty Claim Form

    Air Change Australia Pty Ltd ABN 53 121 537 620 2 Ashford Avenue, Milperra NSW 2214 PO Box 252, Milperra NSW 1891 Phone (02) 8774 1400 (02) 8774 1490 Email sales@airchange.com.au Website www.airchange.com.au 7.1 Warranty Claim Form All warranty claims are subject to sale/service terms & conditions...
  • Page 16 Air Change Australia Pty Ltd ABN 53 121 537 620 2 Ashford Avenue, Milperra NSW 2214 PO Box 252, Milperra NSW 1891 Phone (02) 8774 1400 (02) 8774 1490 Email sales@airchange.com.au Website www.airchange.com.au Please remember to send “Details of Ser vicing Report” with this page if warranty is required.
  • Page 17 1.2 This Warranty Policy is also subject to the Terms and Conditions for the sale and supply of Products from Air Change (“Terms and Conditions”), a copy of which is available on the web site www.airchange.com.au and forms part of any Quotation or Order Confirmation from, and any Contract with, Air Change.
  • Page 18 Air Change within 21 days of the date of commissioning. 3.4 Unless prior agreed by Air Change in writing, any cost or expense incurred by any persons removing or refitting or rebuilding the replacement part(s) shall be borne by the Purchaser except where Labour warranty has been specifically included in the sale.
  • Page 19 5.11 The warranty is subject to inspection of the Product(s) or potentially defective parts of the Product(s) by Air Change, although Air Change may in its sole discretion waive the requirement for inspection. 5.12 The source of all part(s) supplied by Air Change pursuant to the Parts Warranty shall be sourced from or through Air Change and at the sole discretion of Air Change.
  • Page 20 (including but not limited to fire, flood, power blackout, earthquake, war or delays in deliveries by sub-contractors) it shall be regarded as a case for relief and Air Change will not be liable for any damages or any other relief or remedies.
