CPN MF-500 Installation Manual

Iot satellite bridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

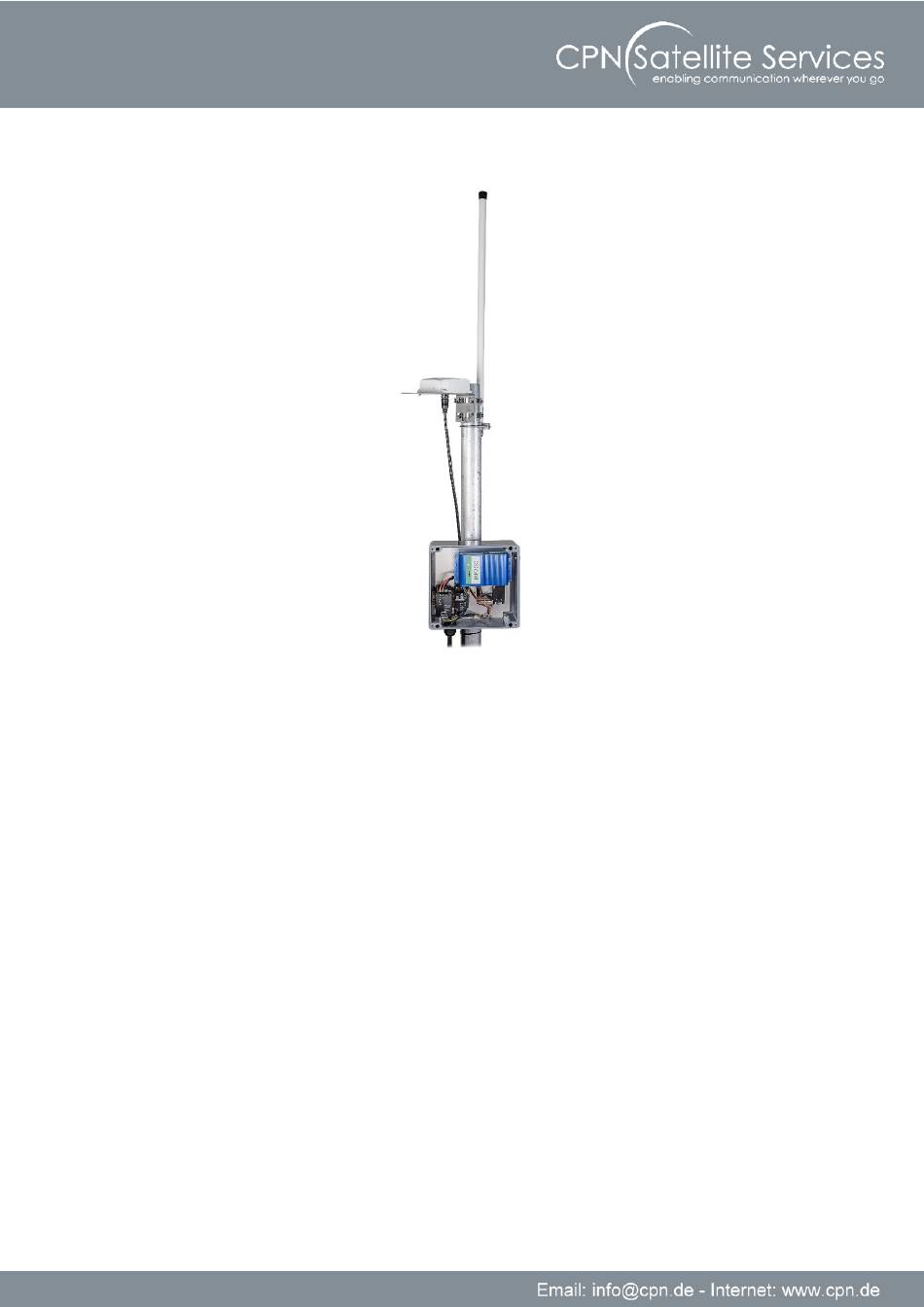

Installation Manual MF-500 IoT Satellite Bridge
Version 1.1 – Date: 17 Aug 2021
Copyright © 2021 CPN Satellite Services GmbH
All rights reserved. This publication and its contents are proprietary CPN Satellite Services GmbH. No part
of this publication may be reproduced in any form or by any means without the written permission of
CPN Satellite Services GmbH, Adalbert-Stifter-Str. 15, 65375 Oestrich-Winkel, Germany.
CPN Satellite Services GmbH has made every effort to ensure the correctness and completeness of the
material in this document CPN Satellite Services GmbH shall not be liable for errors contained herein. The
information in this document is subject to change without notice. CPN Satellite Services GmbH makes no
warranty of any kind with regard to this material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Trademarks
CPN Enclosure are trademarks of CPN Satellite Services GmbH. All other trademarks are the property of
their respective owners.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MF-500 and is the answer not in the manual?

Questions and answers

Related Manuals for CPN MF-500

Summary of Contents for CPN MF-500

  • Page 1 CPN Satellite Services GmbH has made every effort to ensure the correctness and completeness of the material in this document CPN Satellite Services GmbH shall not be liable for errors contained herein. The information in this document is subject to change without notice. CPN Satellite Services GmbH makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 2: Table Of Contents

    Terminology and Abbreviations ....................3 Required Tools ..........................3 Technical overview ........................4 1. Mount the CPN Enclosure to the pole ................5 2. Mount the antenna to the pole .................... 6 3. Mount the IDP-Terminal to the pole ................... 7 4.

  • Page 3: Preliminary Note

    Preliminary note Please read manuals of the installed systems to make sure that all safety requirements are fulfilled at any time. Safety Instructions An external fuse or circuit breaker (max. 20A) must be provided in the onsite installation as an interrupt facility for the Enclosure system. – Only applicable for AC powered systems! WARNING Risk of electrical shock, fire, personal injury or death.

  • Page 4: Technical Overview

    The MF 500 IoT Satellite Bridge supports LoRaWAN™ version 1.0.2. The MF 500 IoT Satellite Bridge is compatible with a very wide range of commercial off the shelf (COTS) LoRaWAN™ sensors. Both the MF-200 LoRaWAN Gateway and the power supply are installed in IP67 rated CPN enclosures for harsh environments.

  • Page 5: Mount The Cpn Enclosure To The Pole

    1. Mount the CPN Enclosure to the pole Mount the Enclosure to the pole by using the pole mount located at the backside of the Enclosure.

  • Page 6: Mount The Antenna To The Pole

    2. Mount the antenna to the pole Plug the antenna cable into the antenna and use its pole mount to secure it onto the top of the pole. Please make sure that your installation matches antenna cable requirements!

  • Page 7: Mount The Idp-Terminal To The Pole

    3. Mount the IDP-Terminal to the pole Plug the IDP cable into the IDP terminal and use its pole mount to secure it onto the Pole. We recommend using zip ties to fix the cables to the pole. Please make sure that your installation matches cable requirements!

  • Page 8: Open The Cpn Enclosure

    4. Open the CPN Enclosure Loosen the 4 marked screws of the cover and remove it from the Enclosure...

  • Page 9: Ensure All Circuit Breakers Are Switched Off / Not Plugged In

    5. Ensure all circuit breakers are switched off Make sure all circuit breakers are switched off and pointing down.

  • Page 10: Insert The Antenna Cable And Connect It

    6. Insert the antenna cable and connect it Insert the antenna cable into Enclosure and connect to the connector located on the bottom left of the MF 200 (RF). (depending on the cable you might need to use an SMA adapter)

  • Page 11: Switch On / Plug In All Circuit Breakers Inside The Enclosure

    7. Switch on all circuit breakers inside the Enclosure Connect the AC Power Cable to the main 110 to 240 V AC power source. Switch on all circuit breakers.

  • Page 12: Check If The System Is Operating Properly

    8. Check if the system is operating properly Check if the LED on the power supply and MF-200 LoRaWAN Gateway glows green. Please check whether data form the MF-200 LoRaWAN Gateway are received by the MinFarm Portal properly.

  • Page 13: Close The Cpn Enclosure

    9. Close the CPN Enclosure Screw in the 4 marked screws of the cover to reinstall it to the Enclosure.

  • Page 14: Any Questions Or Suggestions

    Any questions or suggestions? Do not hesitate to contact us! Version 1.1 – Date: 17 Aug 2021 Created by Christian Nicolai | info@cpn.de | +49 6723 913480 https://www.cpn.de...
