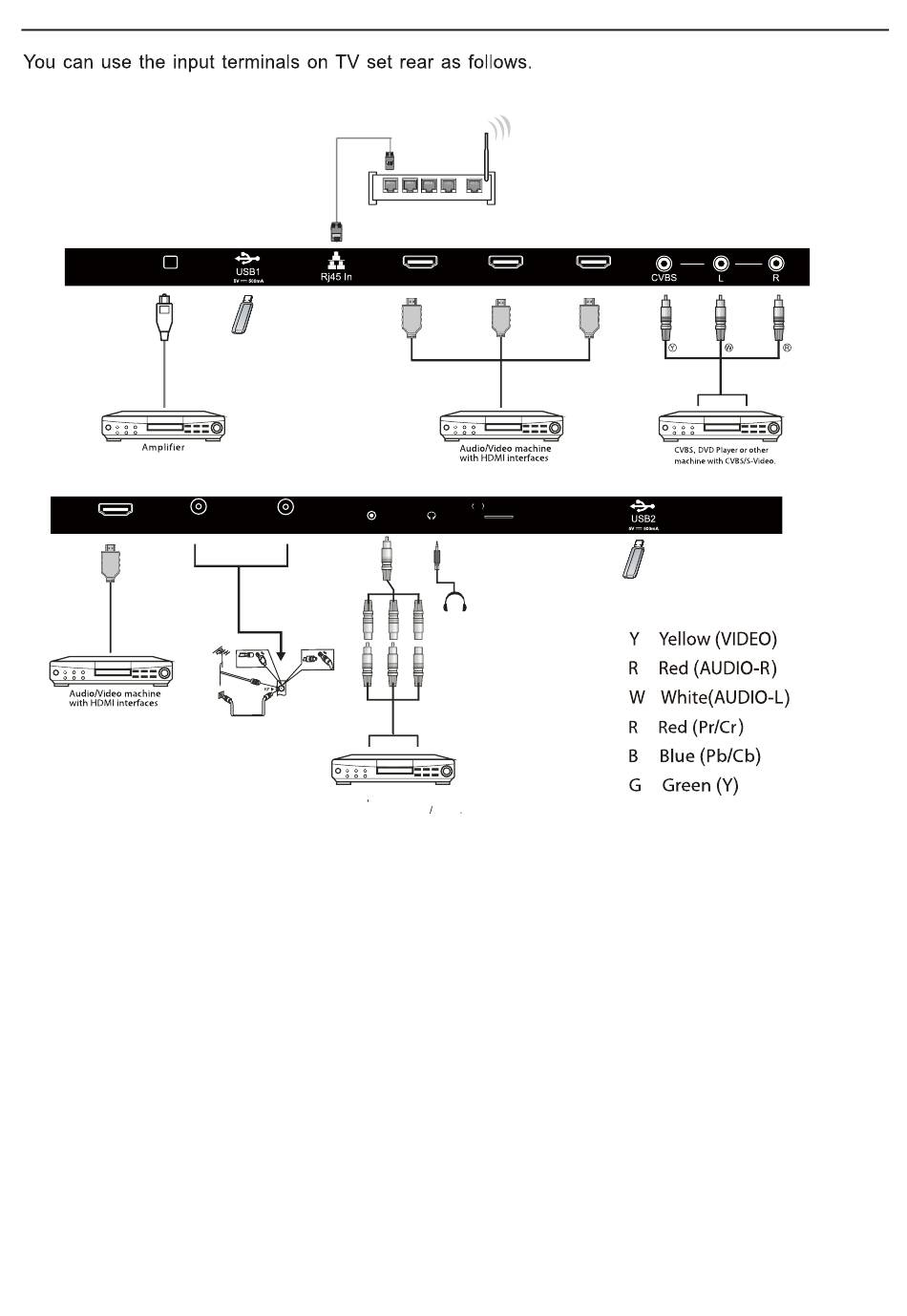

MAKING CONNECTIONS

OPTICAL
LNB IN
HDMI 4 (ARC)
(SATELLITE)
1. RF: Antennal/close circuit TV
2. YPbPr: Component input terminal.
3. HEADPHONE: Headphone output.
4. USB: Connect USB device.
5. HDMI: Connect to High-definition multimedia signal resource.
6. AV INPUT: Video input/Audio input.
Note:Video And YPbPr share one audio channel.
4 3
HDMI1
COMMON
ANT IN
MINI YPbPr EARPHONE
(ANTENNA/CABLE)
CVBS DVD Player or other
machine with YPbPr YCbCr
2 1 N A W
HDMI2 HDMI3
INTERFACE CI
TF
5
