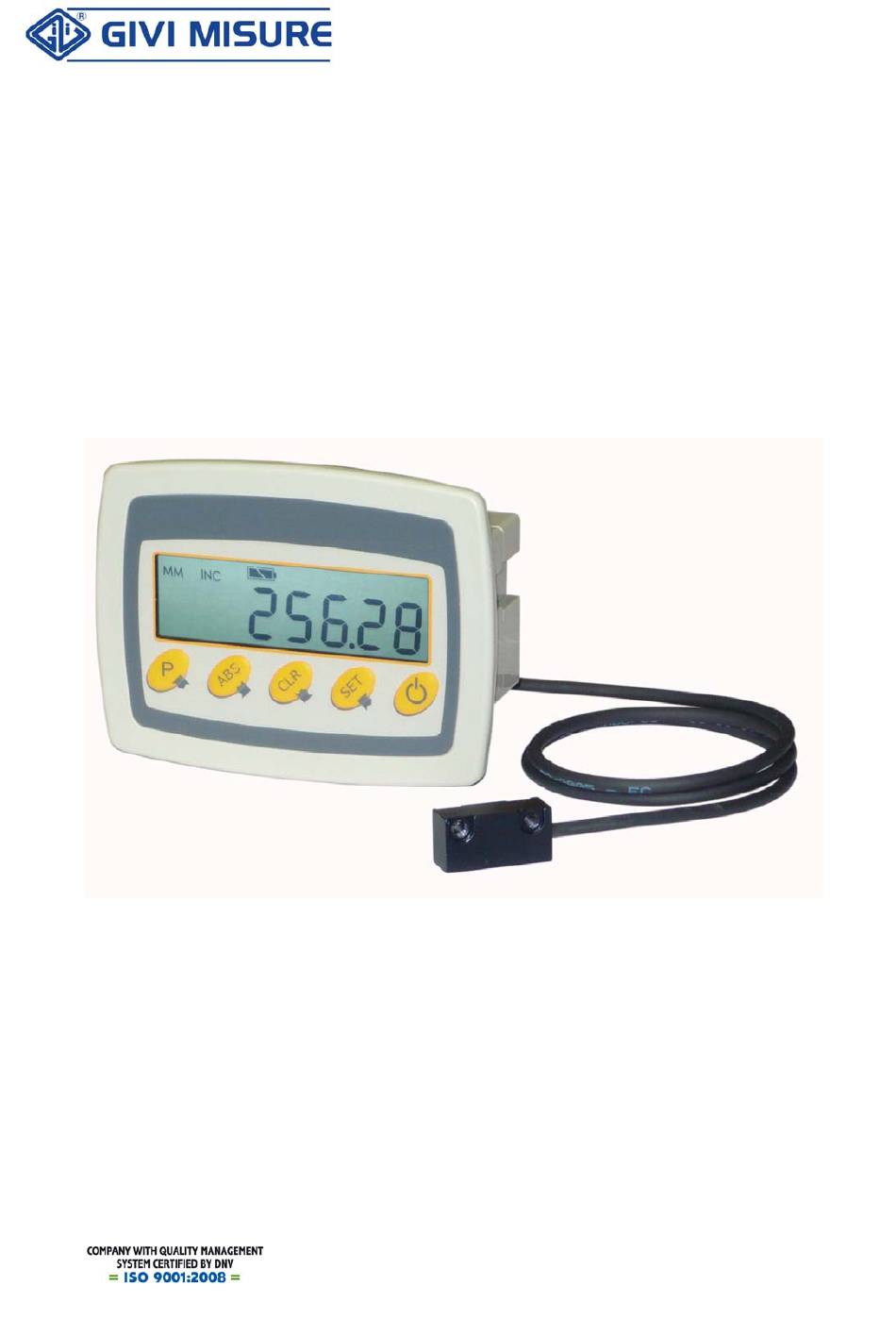

OPERATION MANUAL DIGITAL READOUT

WITH MAGNETIC SENSOR

VISION 110L

MICROCOMPUTER

One-axis

version

GIVI MISURE S.R.L. A SOCIO UNICO

C.F. e Iscrizione al Reg. Imprese di Monza e Brianza n° 04355540156 - Cap. Soc. € 51.480,00 I.V.

Table of Contents

Need help?

Do you have a question about the VISION 110L and is the answer not in the manual?

Questions and answers

Summary of Contents for Givi Misure VISION 110L

Page 1 Tel. +39 0362 366126 Fax +39 0362 366876 www.givimisure.it sales@givimisure.it OPERATION MANUAL DIGITAL READOUT WITH MAGNETIC SENSOR VISION 110L MICROCOMPUTER One-axis version GIVI MISURE S.R.L. A SOCIO UNICO C.F. e Iscrizione al Reg. Imprese di Monza e Brianza n° 04355540156 - Cap. Soc. € 51.480,00 I.V.
Page 2: Table Of Contents
CONTENTS INTRODUCTION ............................2 DECLARATION OF CONFORMITY ......................3 INSTALLATION ............................. 3 DIMENSIONS VISION 110L ........................4 BATTERY INSERTION ..........................4 FIXING OF MAGNETIC STRIP MP100/MP200 ..................5 SENSOR MOUNTING ..........................7 LEGEND - MESSAGES AND SIGNALS ....................8 STORING OF PROGRAMMES AND DATA ..................... 9 SETTING CONFIGURATION ........................
Page 3: Declaration Of Conformity
DECLARATION OF CONFORMITY The Manufacturer declares that the product DIGITAL READOUT Model VISION 110L Conforms to the standard 2004/108/EC re ELECTROMAGNETIC COMPATIBILITY regulations including the latest modifications and to relative national legislation. YEAR OF AFFIXING OF LABELLING: 04 PIERLUIGI GUERRA...
Page 4: Dimensions Vision 110L
DIMENSIONS VISION 110L DRILLING TEMPLATE (X) = Standard drilling template 92x44 mm - FLAPS (A1, A2) REMOVED. (Y) = Drilling template 92x66 mm. BATTERY INSERTION Open the door of battery case and insert two batteries Alkaline size AA 1.5V, taking care about the polarity (see the drawing). Close the door before switching on the device.
Page 5: Fixing Of Magnetic Strip Mp100/Mp200
FIXING OF MAGNETIC STRIP MP100/MP200  In order to make the system more precise, magnetic strip  must be 80 mm (40 mm for each side) longer than the machine run, i.e. L = Run + 80mm. Tape shall be centered on the run. ...
Page 6 Carry out the gluing of magnetic strip as follows: - Clean carefully the fixing surface from oil, fat or any kind of dirt, using trace-free solvents. - Raise up a few centimetres of adhesive protection  and place magnetic strip, lightly pushing on the initial adhesive zone. - Proceed with the placing of the strip, removing progressively the adhesive protection and applying an even pressure.
Page 7: Sensor Mounting
SENSOR MOUNTING - Proceed to fix magnetic sensor using the M4 threaded holes. - As an alternative you can use them as passing holes for socket head cap M3x18 screws. The sensor can be mounted in any position, keeping the active side, marked by arrows, toward the surface of magnetic strip.
Page 8: Legend - Messages And Signals
LEGEND - MESSAGES AND SIGNALS The following symbols are used in this manual: SELECTION OF VALUES KEY (SETTING DATA MODE). SELECTION OF DIGIT KEY (SETTING DATA MODE). AXIS CLEAR KEY (ALSO USED TO CANCEL THE SETTINGS). CONFIRMING KEY. ON/OFF. ● FIXED AXIS LED ...
Page 9: Storing Of Programmes And Data
STORING OF PROGRAMMES AND DATA The programming of counter is carried out by the Manufacturer who VISION 110 knows the access codes and the procedures (configuration). The operator can carry out all operations. All the information is stored permanently and can be only modified by reforming it all from the beginning.
Page 10 Example of selection of a parameter: 1 2 3 . 4 5 quota displayed press the display will show “P” 0 0 0 0 0 (parameter configuration) press if a password value matches the P 0 1 manufacturer’s code display will show or press to input a new password XXXXX...
Page 11 All settings for the configuration of device are hereafter described: Parameter 01 – CHOICE OF AXIS RESOLUTION It is possible to set up the following resolutions: 1 – 0.1 – 0.05 – 0.01 in millimetres  0.01 – 0.001 – 1/16 – 1/32 – 1/64 in inches ...
Page 12 Example for setting a resolution 0.1° in angular mode : press To enter the configuration and P 0 1 select the parameter press To confirm the selection and 0 . 0 1 enter its setting press Up to Angular resolution A n g more press...
Page 13 Example setting : press To enter the configuration and P 0 2 select the parameter press To confirm the selection and enter d i r - its setting press The display will show - d i r press To confirm the value and return to P 0 2 the parameters press...
Page 14 Parameter 03 – LINEAR CORRECTION Note: Working resolution displayed must be of linear type (selected by parameter 01). Sensitive machining errors can derive from bad machine tool trim through wear or guides out of line, imperfect Carriage-guide coupling, badly distributed parts, etc...
Page 15 Example for setting the value of CF based on the real displacement of the axis: press to enter the configuration and P 0 3 select the parameter C o r r . press the display will show to select the way of calculation of 1 2 3 .
Page 16 Parameter 04 - ENABLE AND SET THE REF VALUE OF INCREMENTAL QUOTA It is an absolute reference value (physical reference point) of the measuring system, recallable when the device is in incremental counting mode. Example of setting value of REF = 10.00 mm : press To enter the configuration and P 0 4...
Page 17 Parameter 05 - ENABLE AND SET THE REF VALUE OF ABSOLUTE QUOTA It is an absolute reference value (physical reference point) of the measuring system, recallable when the device is in absolute counting mode. Example of setting value of REF = 5.00 mm: press To enter the configuration and P 0 5...
Page 18 Parameter 06 – ENABLE AND SET TIME FOR DEVICE SELF-SWITCHING OFF It is possible to enable and program a stand-by time for an automatic switching off of the device. Time is displayed in seconds and maximum programmable time is 12 hours. To switch on again the device press the button ON/OFF. Example of setting a time of 30 minutes (1800 seconds): press To enter the configuration and...
Page 19 Parameter 08 - ENABLE RESET/PRESET OF ABSOLUTE QUOTA If enabled it allows to reset/preset of quota in absolute counting mode. Example of setting: press To return the configuration and P 0 8 select the parameter The display will show “yes / no” to press indicate the set mode y e s...
Page 20 Parameter 10 – ENABLE FREE CALCULATION PARAMETER Note: the reading mode must be “linear”(select it through parameter 01). In order to make special measurements which do not correspond to the real linear displacement of the axis (for instance diagonal cuts), it is possible to use a Free Calculation Parameter which corresponds to the ratio between the desired value to be displayed and the real valued shown on the display.
Page 21 To recall it before starting: press To enter the configuration and P 1 0 select the parameter s t o r e press display will show To recall the parameter, display will r e c a l l press show F C L 0 press display will show...
Page 22 Parameter 80 – MODIFY PASSWORD TO ENTER INTO PARAMETERS Password to enable the access into parameters is initially set in our factory to the value “000000”. It is possible to modify that password to avoid the free access into the configuration.
Page 23: Self - Test
Parameter 89 – DEVICE DIAGNOSTICS It is possible to carry out a diagnostic test of the LCD display, through parameter 89, in order to verify the correct operation of every segment. For example: press To enter the configuration and P 8 9 select the parameter display will show each available - 1 8 8 8 8 8 8...
Page 24: Incremental/Absolute Counting
INCREMENTAL/ABSOLUTE COUNTING The display always indicates the current counting mode:  ABS = ABSOLUTE COUNTING  INC = INCREMENTAL COUNTING SWITCHING ONE COUNTING MODE TO ANOTHER TAKES PLACE BY PRESSING THE ABS KEY. THE POINT WILL FLASH (OR SWITCH OFF) INDICATING THAT THE AXIS IS IN ABS MODE (OR IN INC MODE).
Page 25: Resetting/Presetting Of A Datum
RESETTING/PRESETTING OF A DATUM To make this operation enabled, set the corresponding parameter 07 (Incremental mode) or parameter 08 (Absolute mode). Quite apart from the counting system selected, ABS or INC mode, zero resetting of a quota (reset) is obtained as follows: example : 1 2 3 .
Page 26: Setting "Ref" Quota
SETTING “REF” QUOTA “REF”quota is a pre-fixed value which has to be set and enabled through parameters P04, in case of INC or counting mode, or P05, if in ABS counting mode. Apart from the selected counting mode, it is possible to recall the corresponding “REF”quota through: example : 1 2 3 .
Page 27: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL: VISION 110L 1 LCD DISPLAY: 6 ½ DIGIT h = 13 mm and negative sign INPUT SIGNAL: MAGNETIC SENSOR COUNTING SPEED: 4 m/sec POWER SUPPLY: 3V (2 batteries type AA)-medium current consumption external 1.5  5 V MEMORY: PERMANENT FOR CONFIGURATION AND “USER”...
Page 28: Warranty Terms
WARRANTY TERMS The digital readout mod. is fully warranted for a period of 12 (twelve) VISION 110 months from the forwarding date against manufacture faults. The Manufacturer is not responsible for any damage due to transport, loss or any other uncontrollable event. Repairs are carried in the Manufacturer’s factory and the customer shall provide for consignment free destination.
Page 29: Special Functions On Customer's Request
SPECIAL FUNCTIONS ON CUSTOMER’S REQUEST 22/06/2010 MT04_A30_B_VI110L_GIVI_ENG REV.B 2932...
