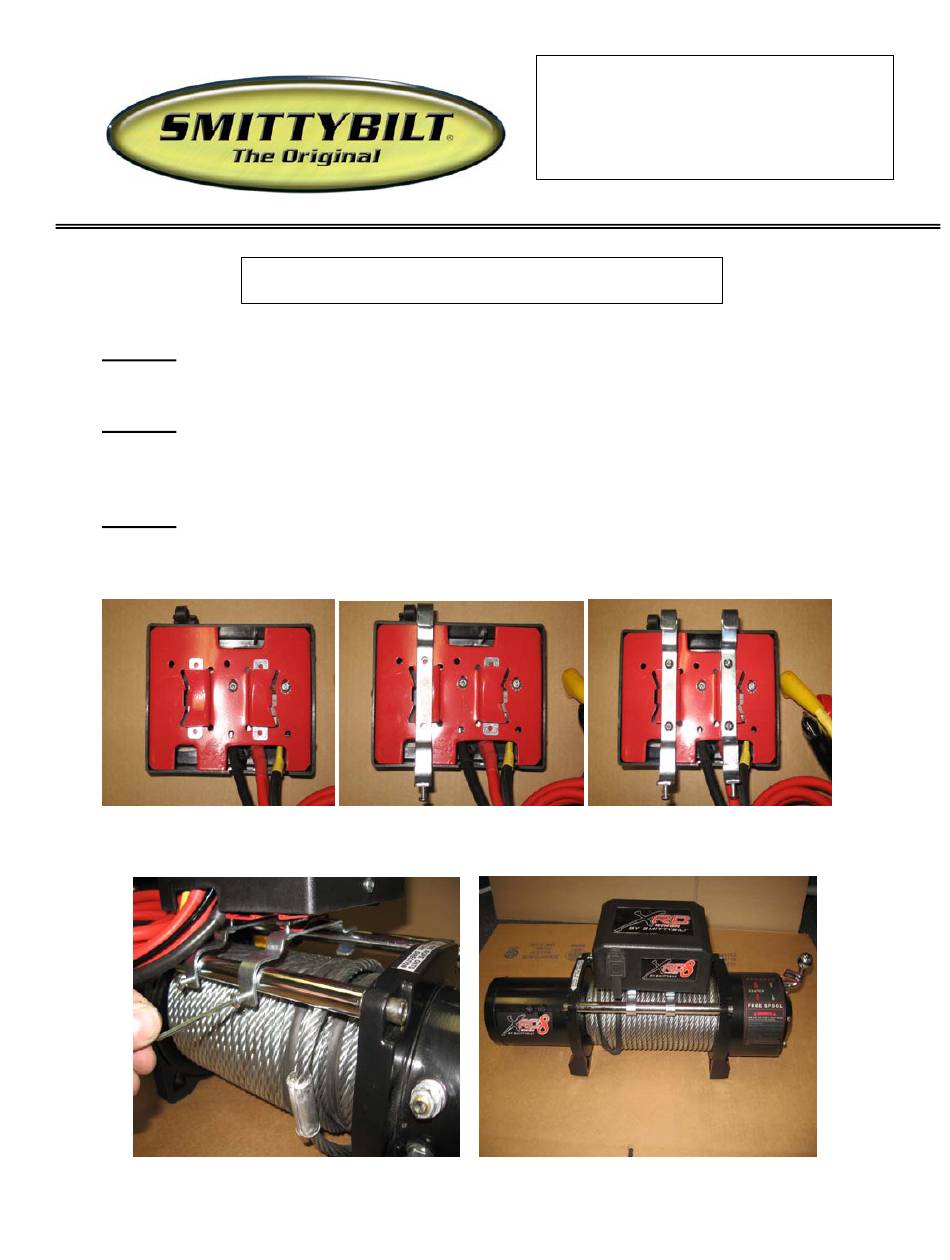

Tie-Rod (over cable) Mounting Instructions
STEP 1: Insert the small metal brackets on the bottom of the solenoid bracket. (Fig A)
STEP 2: Place long mounting brackets on top (hook facing forward) and secure with
included bolts. (Fig B, C)
STEP 3: Place solenoid on top of tie-rods with hooks facing forward in desired location.
Secure by tightening the screws in the rear. (Fig D,E) Installation is now
complete. Use the wiring diagram in instruction manual for further assembly.
(Fig A)
(Fig D)
SOLENOID MOUNTING
(Fig B)
97281/972810
SUPPLEMENT
(Fig C)
(Fig E)
Advertisement
Table of Contents

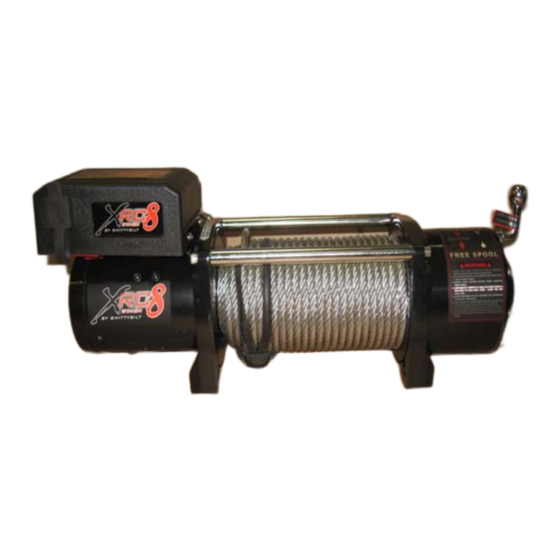

Summary of Contents for Smittybilt 97281
- Page 1 97281/972810 SOLENOID MOUNTING SUPPLEMENT Tie-Rod (over cable) Mounting Instructions STEP 1: Insert the small metal brackets on the bottom of the solenoid bracket. (Fig A) STEP 2: Place long mounting brackets on top (hook facing forward) and secure with included bolts. (Fig B, C) STEP 3: Place solenoid on top of tie-rods with hooks facing forward in desired location.
- Page 2 Over Motor Mounting Instructions STEP 1: Locate and identify the location for the mounting bracket. (Fig A) STEP 2: Attach the rear part of the bracket to the winch by removing the rear tie rod bolt. Place the bracket over the hole and re-install tie rod bolt. Do not tighten completely.
- Page 3 STEP 4: Lower down the solenoid box and attach the front of the bracket securely to the mounting location on the front of the winch with the included bolt. (Fig E) STEP 5: Tighten the rear tie rod bolt completely now. (Fig F, G) Installation is now complete.
