Domotime GSMC2G Manual

Hide thumbs Also See for GSMC2G:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual

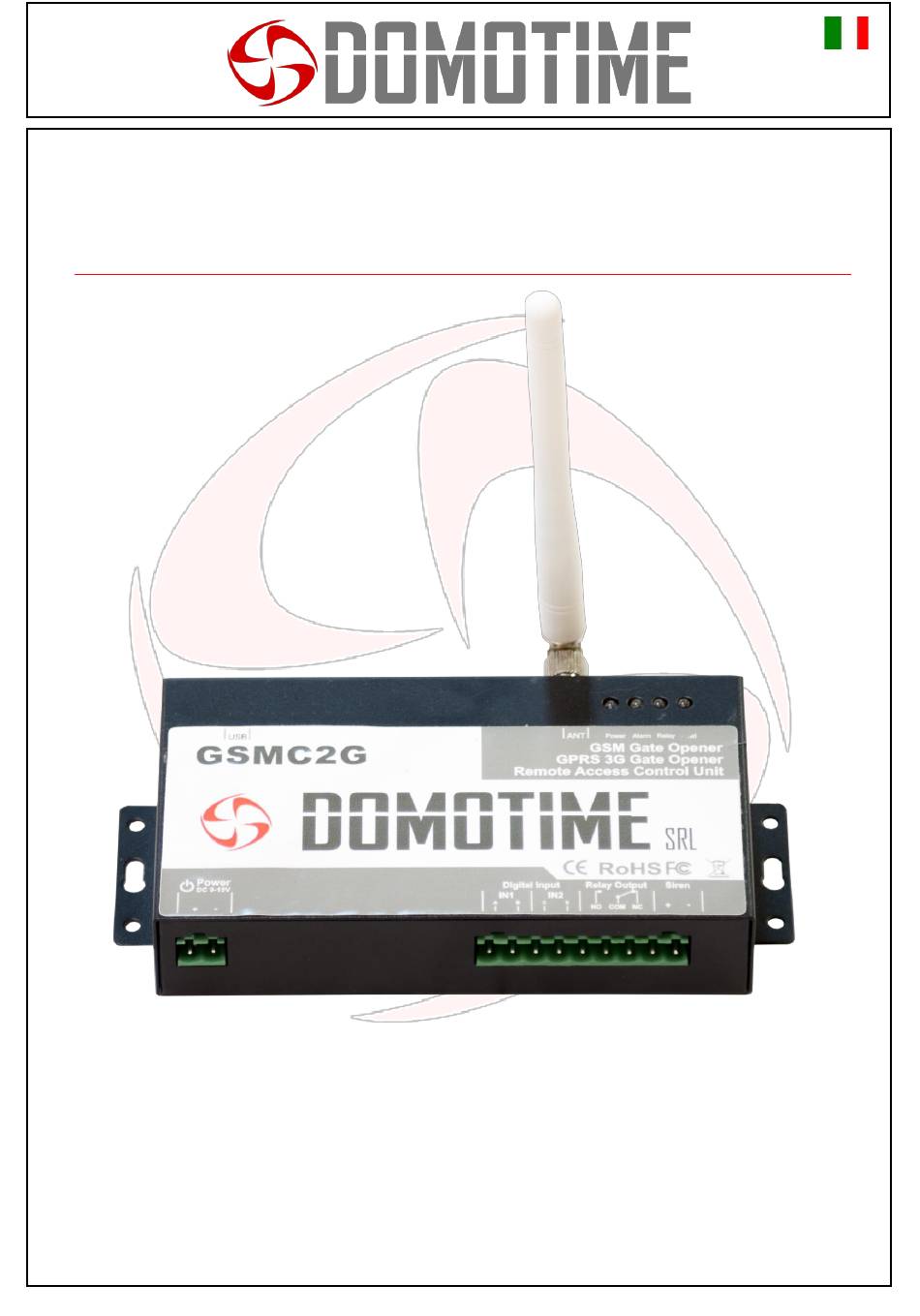

MANUALE D'ISTRUZIONI
GSMC2G
Ricevitore GSM 1 relè – 2
ingressi – batteria a tampone
Manuale GSMC2G - Ver. 11.17
Pagina 1

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSMC2G and is the answer not in the manual?

Questions and answers

Related Manuals for Domotime GSMC2G

Summary of Contents for Domotime GSMC2G

  • Page 1 MANUALE D’ISTRUZIONI GSMC2G Ricevitore GSM 1 relè – 2 ingressi – batteria a tampone Manuale GSMC2G - Ver. 11.17 Pagina 1...
  • Page 2 NOTE ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ Manuale GSMC2G - Ver. 11.17 Pagina 2...

  • Page 3: Table Of Contents

    Cambio password Aggiungere un numero di un utente autorizzato Cancellare un numero utente Opzioni controllo relè Controllare il relè tramite sms Sms di avviso per apertura/chiusura relè Input digitali Altri comandi Reset dispositivo Manuale GSMC2G - Ver. 11.17 Pagina 3...

  • Page 4: Avvertenze Importanti

    Evitare che l’acqua entri nel GSMC2G. Non utilizzare il GSMC2G in situazioni in cui il GSM è proibito o può causare interferenze o pericolo. Il GSMC2G può essere disturbato da altri segnali wireless di altre apparecchiature in prossimità, e non funzionare correttamente.

  • Page 5: Presentazione Del Prodotto

    Numeri di telefono registrabili: fino a 999. PRESENTAZIONE DEL PRODOTTO Il GSMC2G è un controllore GSM a distanza. E’ un apparecchio molto semplice e può essere utilizzato per controllare l’accesso a porte, cancelli, il controllo a distanza di apparecchi elettronici, il tutto semplicemente tramite una chiamata gratuita dal tuo cellulare.

  • Page 6: Applicazioni D'uso

    APPLICAZIONI D’USO GSMC2G è molto versatile e si presta a qualsiasi utilizzo e in qualsiasi campo in cui è necessario accendere o spegnere macchinari a distanza. Solo a titolo esemplificativo, GSMC2G può essere impiegato con porte, cancelli, basculanti, ventole elettriche, forni microonde, controllo aria condizionata, luci stradali, alimentatori solari, motori, inverter, PLC, pompe, pannelli elettronici, cartelloni luminosi, segnali LED, ecc.

  • Page 7: Descrizione Componenti

    DIN/GND IN2, da connettere al sensore/detector, con porte a contatti puliti. Uscita relè Porta normalmente aperta Porta comune Porta normalmente chiusa Connetti al GSM/3G antenna Manuale GSMC2G - Ver. 11.17 Pagina 7...

  • Page 8: Esempi Di Connessione

    La serratura si attiva tramite chiamata telefonica. GSMC2G per controllo remoto La pompa viene attivata/disattivata tramite una chiamata telefonica. La pompa viene alimentata dalla rete elettrica e il GSMC2G da l’alimentatore AC/DC. Manuale GSMC2G - Ver. 11.17 Pagina 8...
  • Page 9  Il GSMC2G va programmato e gestito da parte dell’amministratore con comandi di testo SMS scritti in MAIUSCOLO;  Se non si riesce a chiamare il GSMC2G oppure se non si riceve alcuna risposta tramite SMS (se abilitata), aggiungere il prefisso nazionale al numero della SIM card del GSM (es. +39 per l’Italia);...
  • Page 10 GSM dal 5 febbraio 2016 alle ore 8:00 al 6 febbraio 2016 alle ore 10:50. Il GSMC2G invierà un messaggio di risposta: “003: 3472345*** From:16-02-05,08:00 To: 16-02-06,10:50”.  La posizione 1 nel GSM dovrebbe essere sempre riservata ad un numero di servizio.
  • Page 11 è necessario che il numero di telefono del dispositivo dal quale si vuole fare la chiamata sia inserito in memoria, tramite la procedura descritta precedentemente. Effettuare la chiamata al numero della SIM card inserita nel GSMC2G: il dispositivo rifiuterà la chiamata senza rispondere e contestualmente azionerà il relè (che si comporterà a seconda delle impostazioni effettuate, come più...

  • Page 12: Cancellare Un Numero Utente

     ALL = comando per dare autorizzazione a qualsiasi numero telefonico chiamante Il GSMC2G invierà un messaggio di risposta: “Allow all numbers can call to control the Relay”.  Attenzione: qualsiasi numero di telefono potrà ora comandare (aprire o chiudere il cancello) il GSM, anche se non inserito/autorizzato.
  • Page 13  pwd = password corrente  EE = comando per richiedere stato relè Il GSMC2G invierà un messaggio di risposta con OFF o ON, a seconda dello stato. Esempio “Relay OFF; GSM Signal Value: 26”.  Signal Value è la potenza del segnale GSM (campo): 31 = segnale massimo, < 14 = segnale debole.
  • Page 14 Resettare ai dati di fabbrica Per resettare ai dati di fabbrica, è necessario tenere premuto il pulsante di reset (situato vicino allo slot per la scheda SIM) per almeno 6 secondi, quindi rilasciarlo. La password del GSMC2G sarà quella di default “1234”.

  • Page 15: Input Digitali

    1234M2#Allarme finestra aperta!# Interroga lo stato di attivazione di DIN1/DIN2: pwdMQ# DICHIARAZIONE DI CONFORMITA’ Domotime Srl dichiara che il ricevitore GSMC2G è conforme ai requisiti essenziali fissati dalle Direttive Europee. Manuale GSMC2G - Ver. 11.17 Pagina 15...
  • Page 16 LISTA NUMERI AUTORIZZATI Autorizz. Tempo Posizione Numeri telefono autorizzati Nome utilizzatori illimitata autorizzazione Numero di servizio … … Manuale GSMC2G - Ver. 11.17 Pagina 16...
  • Page 17 NOTE ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ Manuale GSMC2G - Ver. 11.17 Pagina 17...
  • Page 18 Via Michelangelo, 152/B 25015 Desenzano d/G (BS) – Italy Sede operativa Via Monico, 9 25017 Lonato d/G (BS) – Italy Tel: +39 030 9913901 Fax: +39 030 9901307 Skype: domotime email: info@domotime.com www.domotime.com Manuale GSMC2G - Ver. 11.17 Pagina 18...
  • Page 19 INSTRUCTIONS MANUAL GSMC2G GSM receiver 1 relay – 2 input – backup battery Manuale GSMC2G - Ver. 11.17 Pagina 19...
  • Page 20 NOTES ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ Manuale GSMC2G - Ver. 11.17 Pagina 20...
  • Page 21 Enquiring status of relay at the time of the request (ON or OFF) Enquiring periodically status of relay (self-check report) Enquiring IMEI and firmware version of GSM module Factory resetting Declaration of conformity Manuale GSMC2G - Ver. 11.17 Pagina 21...

  • Page 22: Important Warnings

    IMPORTANT WARNINGS Domotime Srl reserves the right to make any technical changes to the product without prior notice; it also disclaims any liability for damages to persons or property due to improper use or incorrect installation of the GSMC2G receiver.

  • Page 23: Technical Specifications

    PRODUCT PRESENTATION GSMC2G is a GSM receiver capable of operating a relay. It is a very simple appliance and can be used to control access to doors, gates, as well as remote electrical or electronic devices. The device can be used in any circumstance where you need to turn on or off any equipment, by a free (phone call) or by SMS from a mobile phone.

  • Page 24: Fields Of Application

    FIELDS OF APPLICATION GSMC2G receiver is very versatile and can be applied to any use and in any field where you need to turn on or off remote machines. For example, GSMC2G receiver can be used with doors, gates, garage doors, electric fans, microwave ovens, air conditioning control, street lights, solar power supplies, motors, inverters, PLCs, pumps, electronic panels, billboards, LED signals etc.

  • Page 25: Description Of Components

    DIN/GND DIN2, to be connected to the sensor / detector, with doors to dry contacts. Relay output NO port Common port NC Port Connect to GSM / 3G antenna. Manuale GSMC2G - Ver. 11.17 Pagina 25...
  • Page 26 GSMC2G for remote control The pump is activated / deactivated via phone call. The pump is supplied from the electrical network and GSMC2G from the AC / DC power supply. Manuale GSMC2G - Ver. 11.17 Pagina 26...

  • Page 27: Preliminary Operations And Warnings

    PRELIMINARY OPERATIONS AND WARNINGS  Open the SIM card cover on the back side of GSMC2G and insert your SIM card, as for a standard cell phone/smartphone;  Default password is "1234". The word "pwd" in the following instructions means that the password must be entered (1234 if it has not been changed);...

  • Page 28: Storing An Authorized Phone Number

    GSMC2G will send a SMS message: “009:3472345*** From:99-99-99,99:99 To: 99-99-99,99:99”.  Position 1 in GSM should always be destined for service purpose.  If a phone number is stored in a position already occupied, the previous number will be removed and replaced by the new number (the old number will no longer work).

  • Page 29: Use

    To operate the GSM device relay (example for opening a gate) via a telephone call, as a prerequisite, the calling phone number must be stored in the GSMC2G memory through the procedure described above. Place the call to the GSM SIM card number: the device will reject the call without answering and will simultaneously activate the relay (which will work according to chosen settings, as described further on this manual: monostable, bistable, etc.).

  • Page 30: Deleting A Stored Phone Number

     AUT = command for authorizing only the stored phone numbers GSMC2G will send a SMS text message: “Only authorized number can call to control the relay.” This command allows the relay to be activated only by telephone numbers stored in the user list.

  • Page 31: Setting Sms Alert For Opening And/Or Closing Of Relay (On And/Or Off)

     Default setting is that none of the two numbers receive an alert message (ab = 00). Send to GSMC2G SIM card number: pwdGON## - It disables SMS alert when the relay is switched off (OFF). Send to GSMC2G SIM card number: pwdGOFF## - It disables SMS alert when the relay is switched off (OFF).

  • Page 32: Enquiring Periodically Status Of Relay (Self-Check Report)

     pwd = current password  T = command for enquiring self-check status Example: 1234T#. GSMC2G will send a reply SMS text “Report status every 008hours”. Enquiring IMEI and firmware version of GSM module Send to GSMC2G SIM card number: pwdIMEI# ...

  • Page 33: Declaration Of Conformity

    Modificare l’SMS di allerta quando viene inviato l’impulso dell’input (massimo 32 caratteri): pwdM1(2)#smsContenuto# per esempio: 1234M2#Allarme finestra aperta!# Interroga lo stato di attivazione di DIN1/DIN2: pwdMQ# DECLARATION OF CONFORMITY Domotime Srl declares that GSM receiver GSMC2G complies with European directives. Manuale GSMC2G - Ver. 11.17 Pagina 33...
  • Page 34 AUTHORIZED NUMBERS LIST Unlimited Authorization Position Authorized phone numbers Users’ names authoriz. window Numero di servizio … … Manuale GSMC2G - Ver. 11.17 Pagina 34...
  • Page 35 NOTES ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________ Manuale GSMC2G - Ver. 11.17 Pagina 35...
  • Page 36 Via Michelangelo, 152/B 25015 Desenzano d/G (BS) – Italy Sede operativa Via Monico, 9 25017 Lonato d/G (BS) – Italy Tel: +39 030 9913901 Fax: +39 030 9901307 Skype: domotime email: info@domotime.com www.domotime.com Manuale GSMC2G - Ver. 11.17 Pagina 36...
