Summary of Contents for CPAT FLEX IRX1

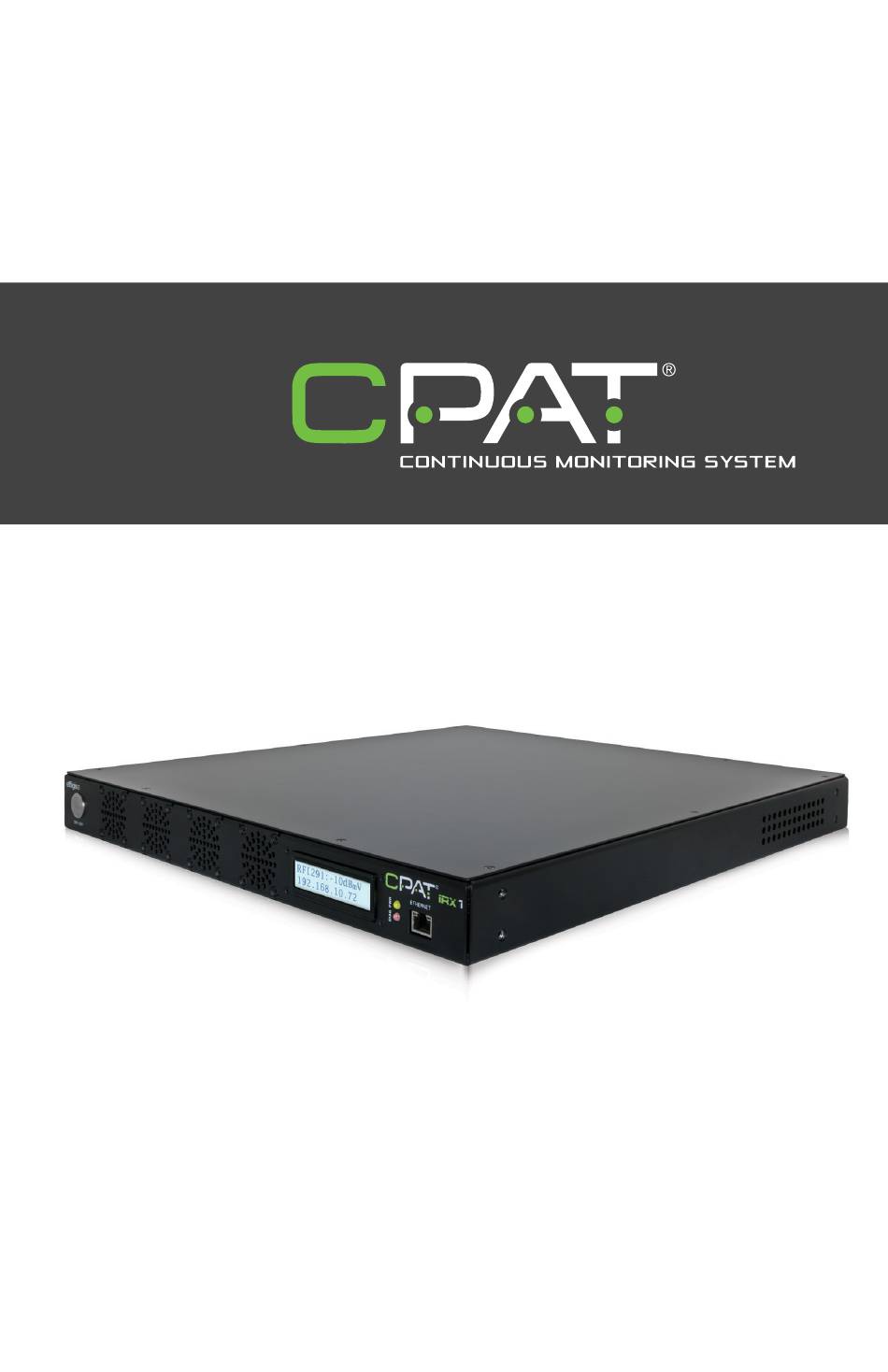

- Page 1 CPAT FLEX Operation Manual (IRX1) v 1.4 / 2014.09.16 © 2014 Effigis. All rights reserved. 006-000020-105...
-
Page 2: Table Of Contents
6.1 Cleaning of the Equipment ..... 13 6.2 Preventative Maintenance ..... 13 CPAT FLEX (IRX1) Operation Manual... -
Page 3: General Information
7.2 Choose the Proper ITX ......15 This manual describes the components, installation and operation of the CPAT FLEX IRX1 8. -
Page 4: Technitial Support
LCD located on the front panel of the unit. Once installed, it requires no further 5:00 PM Eastern Time. intervention to monitor and transmit results through CPAT web interface. Toll free from U.S. and Canada: + 1 888 495-6577 This section describes the IRX1 unit in detail including its accessories, and helps you get started by explaining the features, the powering and data interface on the unit. -
Page 5: Installation
Also, the measured value does not take into account the pads. CAUTION! Levels over this limit can distort the signal or damage the receiver’s RF front- end. Contact the CPAT technical support for more information. CPAT FLEX (IRX1) Operation Manual... -
Page 6: Electrical Installation
The IRX1- needs an access to the internet to transmit received measurement level to the CPAT servers and for automatic firmware update. Transfers vary from less than a 1MBytes to If you want to combine nodes on the same RF entry, be aware that the IRX1 sensitivity... -
Page 7: Communication
To force the IRX1- to power down when it’s running, press in the ON/OFF button on the front panel for 3 seconds. When the unit stops, you can release the button. As it was mention previously this is not the ideal shutdown method. CPAT FLEX (IRX1) Operation Manual... -
Page 8: Real-Time Ingress Monitor (Rim) On Your Smart-Phone
To consult data on the RIM the user must have a smart phone or a laptop with at least an higher the value is, the closer the trouble is. access to the internet. The user must have a CPAT profile, which consist of a username and a password to login on the website www.cpat-solution.com/RIM. -
Page 9: Updates And Recovery
1.75’’ x 16.60’’ x 18.50’’ [H x W x D] 4.5 cm x 42.2 cm x 47.0 cm Weight 4 Kg Maximum relative humidity 80% for temperatures up to 31°C (88°F) decreasing linearly to 50% relative humidity at 40°C (104°F). CPAT FLEX (IRX1) Operation Manual... -
Page 10: Appendix B - Our Services
• Changes to the Customer environment in which Product was installed. The customer should clearly mark the Effigis’ issued RA or reference number on the outside of the package and ship it prepaid and insured to Effigis. CPAT FLEX (IRX1) Operation Manual... -
Page 11: Refurbished Parts And Prior Testing
CLUDING, BUT NOT LIMITED TO, ANY WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT, REGARDLESS OF THE LEGAL THEORY ON WHICH SUCH IMPLIED WARRANTY MAY BE BASED, INCLUDING, WITHOUT LIMITATION, CONTRACT, COURSE OF DEALING, USAGE, OR TRADE PRACTICE. CPAT FLEX (IRX1) - Page 13 effigis.com 1.888.495.6577...
