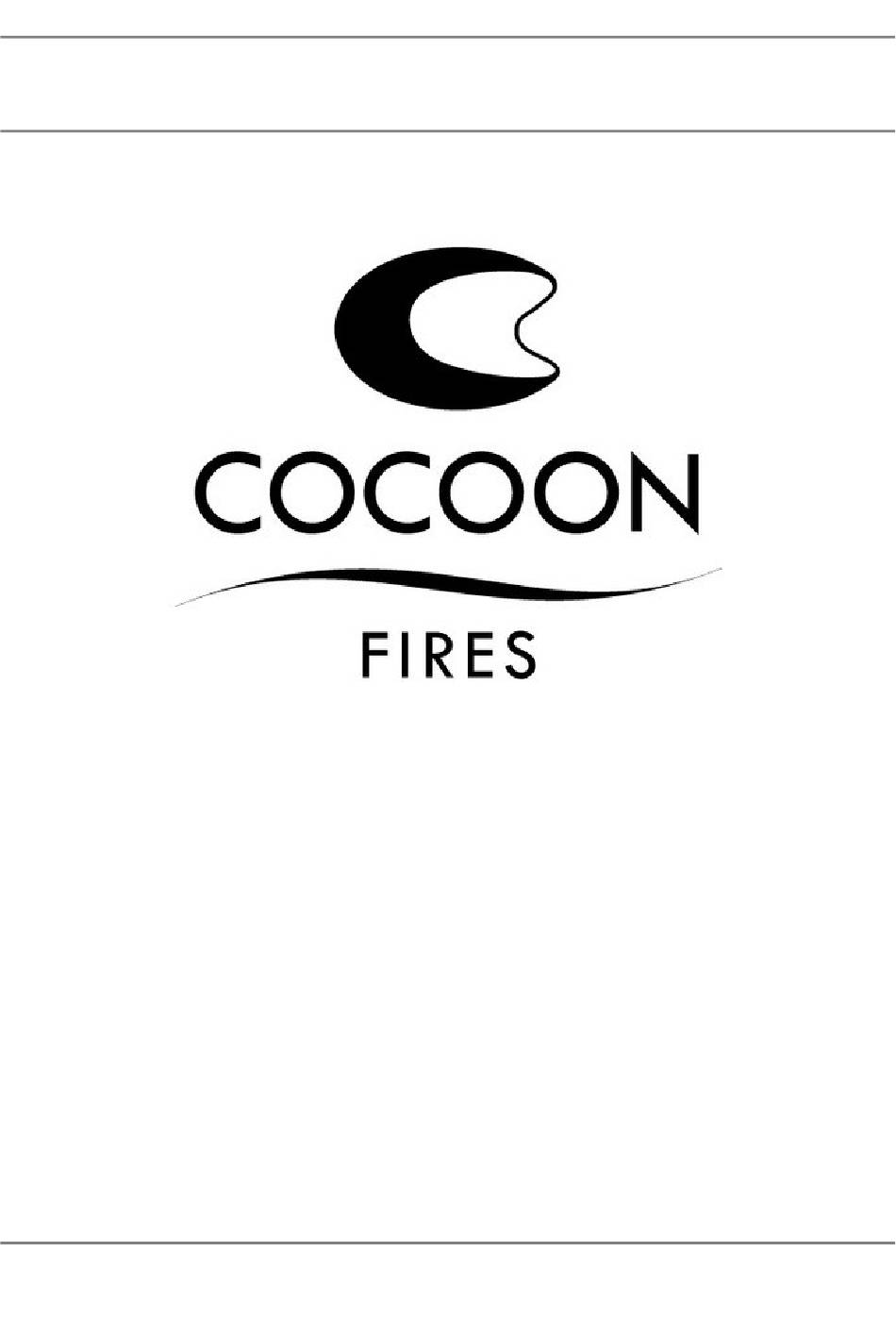

- Page 1 Operating Manual ® • COCOON TERRA • STANDING MODEL Corresponding Model Codes: CFTB, CTSS PLEASE READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE OPERATING THIS PRODUCT...
-
Page 2: Table Of Contents
ADDITIONAL PARTS NAMES AND DESCRIPTIONS Page 5 COMBUSTION CHMABER PARTS NAMES AND DESCRIPTIONS Page 6 SAFETY & CLEARANCE Page 7-8 TERRA - STANDING MODEL INSTALLATION & ADJUSTMENTS Page 9-13 TROUBLESHOOTING AND OPERATIONAL TIPS Page 14 OPERATING THE COCOON BURNER Page 15... -
Page 3: Warnings And Safeguards
• In Australia is it mandatory for all products to be supplied with a Fuel Canister which has a flame arrestor. Cocoon Fires supplies a fuel cannister with a flame arrestor in the Australian market. We recommend in all markets to use a fuel cannister with a flame arrestor. -
Page 4: Parts Names And Descriptions
PARTS NAMES AND DESCRIPTIONS Combustion Combustion chamber Chamber Mount Plate Removable Tray Bracket Main Body Legs For standing model: - 3 security hex nuts to secure legs to main body. info@cocoonfires.com www.cocoonfires.com... - Page 5 PARTS NAMES AND DESCRIPTIONS Main Body or Chimenea Dimensions: 60 cm - 23,6 in Additional Parts & Accessories: The Sliding Lid Handle is used to adjust the intensity of the flame by sliding the Sliding Lid backwards and forwards, and also to extinguish the flame by sliding the Sliding Lid into the closed position.
-
Page 6: Additional Parts Names And Descriptions
PARTS NAMES AND DESCRIPTIONS The Lifting Handle is used to take the Combustion Chamber in and out of the Mount Plate inside the Main Body for filling and cleaning. Step 1 is to join Part A and Part B as shown to the left. -
Page 7: Combustion Chmaber Parts Names And Descriptions
COMBUSTION CHAMBER PARTS NAMES AND DESCRIPTIONS Combustion Chamber: Handle Holes Sliding Lid Top Plate Burner Vent Filling Line Vent Plate Fuel Tank Filling Line info@cocoonfires.com www.cocoonfires.com... -
Page 8: Safety & Clearance
SAFETY & CLEARANCE WARNING: - Aim opening away from flammable objects or surfaces. - Floor mounting surface must be load bearing and be able to support a minimum mass of 150 kg / 330 lb or more. Total product weight is 30 kg / 66.1 lb - Floor surface must be solid, true and level. - Page 9 SAFETY & CLEARANCE NOTE: In all cases, the Chimenea must: • be installed onto load bearing material ONLY; • be installed in low traffic areas to avoid injury to persons moving around and to avoid the Chimenea being bumped which may cause fuel to spill. •...
-
Page 10: Terra - Standing Model Installation & Adjustments
TERRA - STANDING MODEL INSTALLATION & ADJUSTMENTS NOTE: The Cocoon Terra may only be used on a load bearing surface. The standing model may not stand on any movable surfaces and may not be moved while there is a flame present in the Combustion Chamber and may not be moved when in a hot state. - Page 11 TERRA - STANDING MODEL INSTALLATION & ADJUSTMENTS NOTE: adjustment instructions on the following page showing relative positions of (A) and (B) shown above are critical to the airflow inside the Main Body and therefore critical to the proper functioning of the Combustion Chamber.
- Page 12 TERRA - STANDING MODEL INSTALLATION & ADJUSTMENTS NOTE: adjustment instructions on the following page showing relative positions of (A) and (B) shown above are critical to the airflow inside the Main Body and therefore critical to the proper functioning of the Combustion Chamber.
- Page 13 TERRA - STANDING MODEL INSTALLATION & ADJUSTMENTS Mount Plate Hex Nuts Safety Tank Further adjustment to the position of the Mount Plate can be achieved by loosening the 6 hex nuts below the Mount Plate and sliding the Safety Tank front to back slightly. Always make sure that the Safety Tank below the Mount Plate is properly secured after this adjustment.
- Page 14 Plate opening using the Lifting Handles supplied as shown on the previous pages. Your Cocoon Burner is now ready to use, follow the steps on the following pages to correctly and safely fill, ignite, adjust, shut off and refill the Combustion Chamber. Always make sure the Lifting Handles are removed from the Combustion Chamber as shown above when it is not in use otherwise these parts will become too hot to touch and may cause injury.
-
Page 15: Troubleshooting And Operational Tips
TROUBLESHOOTING AND OPERATIONAL TIPS • The first fill will take longer as the material inside the Fuel Tank will absorb the fuel. Subsequent filling should be quicker. Take care to not fill the Combustion Chamber at a faster rate than what the material inside can absorb the fuel. -
Page 16: Operating The Cocoon Burner
OPERATING THE COCOON BURNER NOTE: Overfilling will cause the apparatus to burn at higher temperature rates resulting in the apparatus being difficult to turn off. IMPORTANT: Please ensure the burner is removed from the Main Body before filling with fuel. -
Page 17: Procedure If Burner Is Overfilled And Caution
PROCEDURE IF BURNER IS OVERFILLED: In case of accidental overfilling of the Fuel Tank, follow these steps: • NEVER ignite the Combustion Chamber if it is filled past the "MAX " filling line shown above Remove the Combustion Chamber from the Chimenea, using the lifting Handles. •... -
Page 18: Igniting The Combustion Chamber
IGNITING THE COMBUSTION CHAMBER Once all spilled or residual fuel has been wiped clean, and all other forms of fuel have been sealed and moved to a safe distance from the Combustion Chamber, and the Combustion Chamber has been placed back inside the Chimenea as indicated above, it is safe to consider igniting the Combustion Chamber. -
Page 19: Regulating And Extinguishing The Flame
REGULATING AND EXTINGUISHING THE FLAME To regulate the flame, insert the tips of the Sliding Lid Handle into the holes of the Sliding Lid of the Combustion Chamber and slide backwards or forwards to regulate the flame size. To extinguish the flame, insert the tips of the Sliding Lid Handle into the holes of the Sliding Lid of the Combustion Chamber and slide all the way forward until the flame is extinguished. -
Page 20: To Refill The Combustion Chamber
When refilling the Combustion Chamber, simply follow the same procedure indicated in the section headed “OPERATING THE COCOON BURNER” taking note of the CAUTION and WARNING on this page. It is critical to the proper functioning of the Combustion Chamber that you do not overfill the fuel tank as indicated before. -
Page 21: Warning
WARNING Risk of Explosion: i) Never use any fuel other than the fuel specifically intended for use in the unvented decorative appliance. Never use gasoline. ii) Never refill unvented decorative appliance fuel reservoir when unvented decorative appliance is operating or still hot. iii) Never use unvented decorative appliance where flammable vapours or gas may be present. - Page 22 info@cocoonfires.com www.cocoonfires.com info@cocoonfires.com www.cocoonfires.com...
