Summary of Contents for Rain Soft AIRMASTER ULTRA

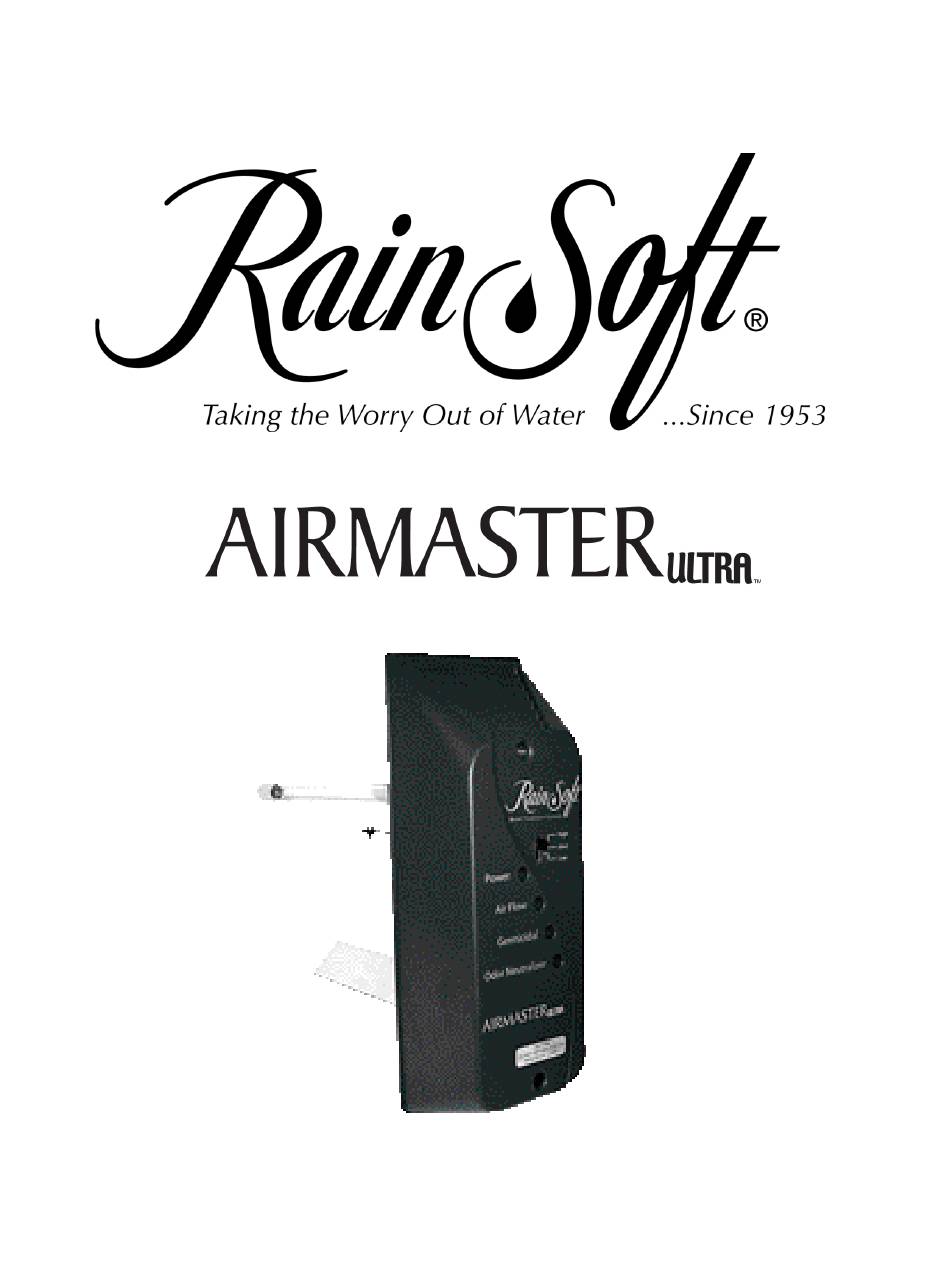

- Page 1 Rainsoft Division of Aquion, Inc. 2080 East Lunt Avenue Elk Grove Village, Illinois 60007 1.847.437.9400 or 1.800.860.7638 www.rainsoft.com REV 091012 LIT1002...
-
Page 2: Warranty
(or, if you prefer, send the entire unit,) directly to the manufacturer, freight prepaid, with proof of purchase and a copy of this warranty. The defective part(s) will either be repaired or new AirMaster Ultra part(s) furnished, for a nominal charge to cover labor, handling, packing and the increase, if any, in the retail price of the part(s) since the date of purchase. -
Page 3: Table Of Contents
TABLE OF CONTENTS Warranty Enjoying Your Airmaster Ultra Unit Important Safety Instructions Unpacking Your Airmaster Ultra Unit Airmaster Ultra Installation Choosing the Appropriate Sensitivity Setting the Appropriate Sensitivity Adjusting the Ozone Output Level Maintenance Requirements Airmaster Ultra Parts List Specifications... -
Page 4: Enjoying Your Airmaster Ultra Unit
WARNING: The ultraviolet light produced by the UV lamps is harmful to the eyes. Do not look directly at the lamps. Should it become necessary to look at the lamps, use UV-protected sunglasses. The AirMaster Ultra may be installed either in the main return duct or main supply duct as shown in the diagram. -
Page 5: Unpacking Your Airmaster Ultra Unit
In case of contact with the lamp, wipe the lamp clean with a soft cloth dampened with rubbing alcohol. 4. Check the parts list below to make sure you have all of the following: • One Airmaster Ultra air treatment system - Main chassis assembly - Cover - Two cover attachment screws •... -
Page 6: Airmaster Ultra Installation
Choosing the Appropriate Sensitivity, page 6, and adjust the sensitivity accordingly. 14. Turn ‘Off’ heating/cooling system; the AirMaster Ultra will shut down within 5 to 30 seconds. After this time the ‘Airflow’ and ‘Odor Neutralizer’ lights will turn off. The ‘Power’ and ‘Germicidal’... -
Page 7: Choosing The Appropriate Sensitivity
CHOOSING THE APPROPRIATE SENSITIVITY The AirMaster Ultra is designed with an installer selected air flow probe sensitivity jumper, to provide proper operation with a wide range of residential air handlers. There are three different settings. Out of the box, the unit will be set to have high sensitivity. -
Page 8: Adjusting The Ozone Output Level
ADJUSTING THE OZONE OUTPUT LEVEL The slide switch on the cover is used to adjust the ozone output level. The settings are low, med and high. LOW – Use in an average-sized home with no pets, no tobacco smoke odors and minimum household odors. -
Page 9: Maintenance Requirements
REPLACING THE LAMPS: Recommended every 24 months NOTE: Use only RainSoft-approved lamps for replacement. Standard off-the-shelf lamps are not compatible with your RainSoft AirMaster Ultra unit. 1. Unplug the transformer from the wall outlet. 2. Remove the two screws from the cover of the unit and remove the cover. -
Page 10: Airmaster Ultra Parts List
AIRMASTER ULTRA PARTS LIST AirMaster Ultra Assembly......................65052 AirMaster Ultra Ozone Lamp....................65501 AirMaster Ultra Germicidal Lamp ...................65048 AirMaster Ultra Fuse.........................65005 AirMaster Ultra Flow Sensor....................65061 AirMaster Ultra Ballast (Board) ....................65062 AirMaster Ultra Transformer....................65000 AirMaster Ultra Display (Board)....................65063 AirMaster Ultra Ribbon Cable....................65064 SPECIFICATIONS Ozone Lamp Ozone lamp is 185 nm, cold cathode. -
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM SOLUTION No power Verify cover is properly mounted (unit will not function without cover installed.) Verify that the transformer is properly plugged into wall outlet and the power cord into the power jack on unit. If the cord is properly connected, test the wall outlet with AC tester to make certain it is functioning properly. -
Page 12: Installation Information
Attention Installer Important Information Regarding the Installation of this Product There are several configurations and many types of installations for AirMaster systems. The AirMaster can be installed in either the return or supply duct, and in some cases, modifications to the incompatible material can be made. It is important that the below guidelines are followed to prevent applications that may cause damage to the structure. -
Page 13: Rectangle Installation Template
RECTANGLE INSTALLATION TEMPLATE 1. Cut out shaded area. 2. Place template on the ductwork of the HVAC system. Trace hole pattern and mark the four mounting holes on ductwork. 3. Cut out the traced hole opening on ductwork with tin snips. 4. -
Page 15: Hole Saw Installation Template
HOLE SAW INSTALLATION TEMPLATE 1. Place the template on the ductwork of the HVAC system. The unit should be mounted lengthwise on the duct. 2. Using a 2 !” hole saw, drill holes at centers as indicated. 3. Mark the four mounting holes on ductwork.
