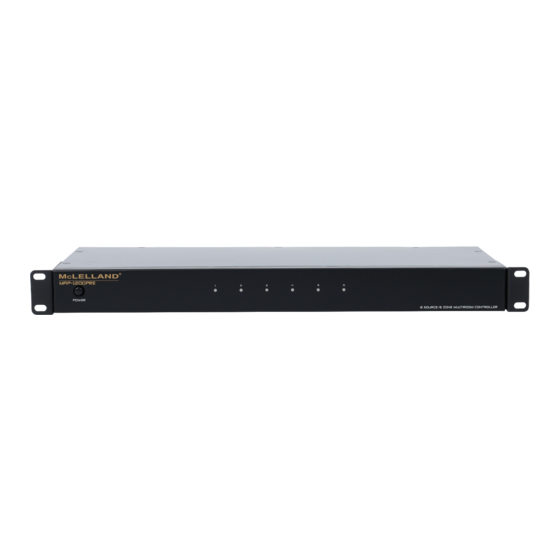

McLelland MAP-1200PRE Owner's Manual

6 source /6 zone multi-room controller
Hide thumbs

Advertisement

Quick Links

Download this manual

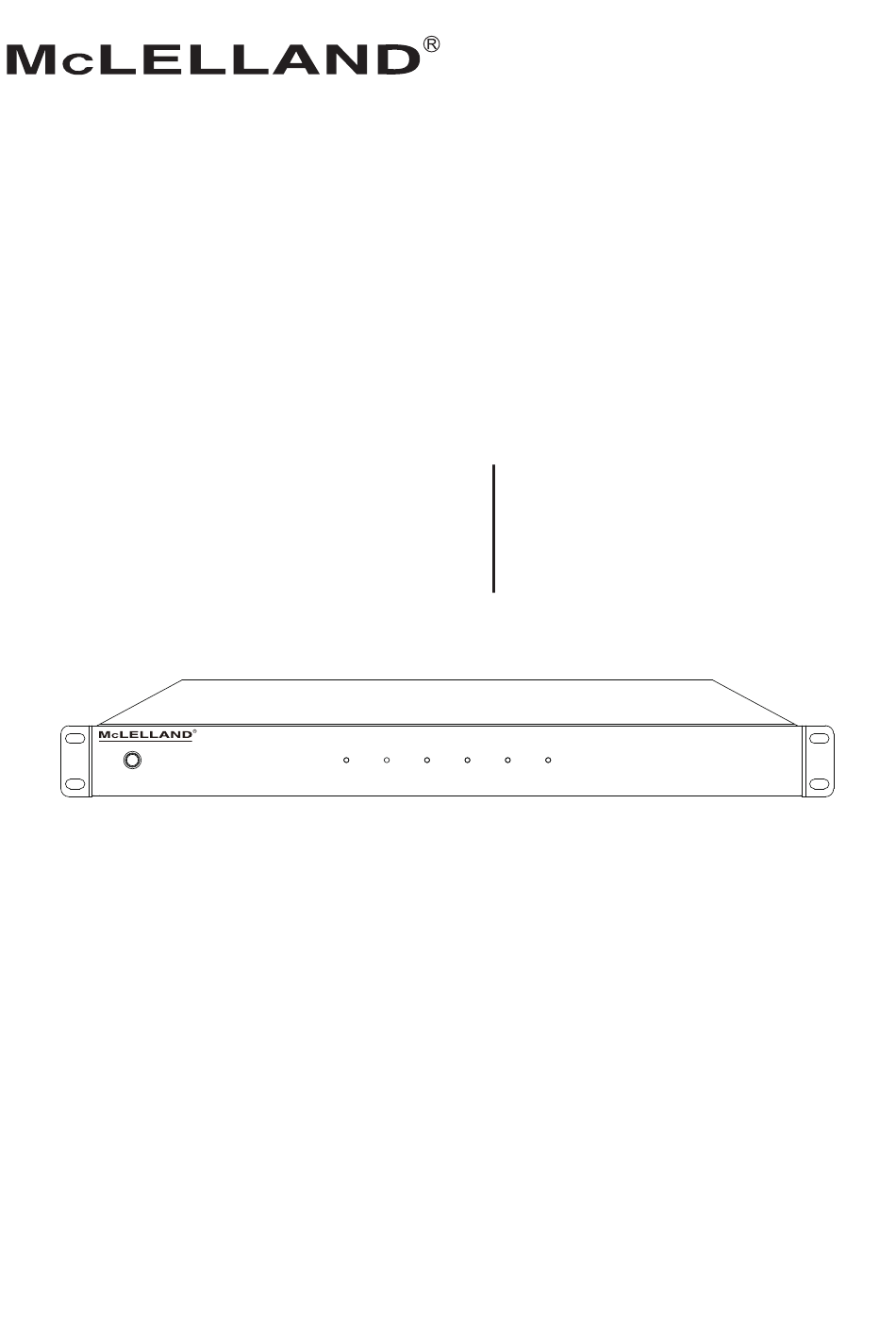

6 Source /6 Zone Multi-room
MAP-1200PRE
Controller
MAP-1200PRE
ZONE 1
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ZONE 6
POWER
6 SOURCE/6 ZONE MUL TIROOM CONTROLLER
OWNERS MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAP-1200PRE and is the answer not in the manual?

Questions and answers

Summary of Contents for McLelland MAP-1200PRE

  • Page 1 6 Source /6 Zone Multi-room MAP-1200PRE Controller MAP-1200PRE ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 POWER 6 SOURCE/6 ZONE MUL TIROOM CONTROLLER OWNERS MANUAL...
  • Page 3 INTRODUCTION McLELLAND MAP-1200PRE is a functional 6x6 matrix controller, easy-to-install, highly compatible, expandable and used-friendly audio distribution system. With few simple steps to install, it provides up to 18 zones which all can be controlled by packaged keypads or IR remote controller.

  • Page 4: Specification

    SPECIFICATION S/N Ratio -110dB 0.05% (1V) Frequency Response 20Hz - 20KHz (-0.5dB) Input Impedance >47 K Ohms Input Sensitivity Crosstalk -75dB (@1kHz) Output Impedance 100Ohms Output Level Trigger Out Voltage DC +12V Infrared Frequency 38kHz Input Connectors RCA, 3.5mm stereo, OPTICAL Output Connectors Terminal Block Network Connector...

  • Page 5: Front Panel

    FRONT PANEL MAP-1200PRE ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 POWER 6 SOURCE/6 ZONE MUL TIROOM CONTROLLER 1. Power ON/OFF/ STANDBY 2.Standby/Zone ON LED Depress the power button to turn on the These six LEDs illuminate to indicate the system.
  • Page 8 Digital Optical input for digital source like TV ARC, DVD and CD players or cable/ satellite boxes. Always use good quality shielded RCA cables to connect sources to the MAP-1200PRE and keep RCA cables as short as possible to avoid RF interfere. controller 3.5mm Stereo...
  • Page 9 6 POE enabled keypads. This allows for source MAP-1200PRE control from each specific zone as well as IR routing to the appropriate source devices once selected. The also comes with a hub that allows for MAP-1200PRE all 6-keypads to be connected to the amp via Cat5e/6.
  • Page 10 There are two Infrared (IR) emitter outputs on the rear panel. These outputs are used to control the connected source components remotely through the MAP-1200PRE IR system. For example, connect an IR emitter to IR Emitter output jack of the controller, and then connect the flasher to the IR receiver window on one of connected sources.
  • Page 11 CASCADING SOURCES INTO ADDITIONAL ZONES The MAP-1200PRE allows 6 sources to be distributed to up to 18 zones on 3 different units using the provided ribbon cable to connect between units. To do this first each unit needs to be addressed according using the MASTER/SLAVE switch.

  • Page 12: Connection Diagram

    CONNECTION DIAGRAM MAP-1200PRE ETHERNET PORTS INSTRUCTION There are two RJ-45 jacks on the rear panel of this amplifier for the connection to Ethernet. Please use a good quality Cat5e/5 cable, and follow the connecting diagram below. 1. Connect the LAN port on the rear panel of controller to the local Wi-Fi Router.
  • Page 13 Please switch to MASTER and ETHERNET. Note. Please do not press “Reset” button. Note. Please do not connect the Ethernet port of MAP-1200PRE to the computer directly. 1.Open the IE web browser of PC, log in to the WEB configuration page of local...
  • Page 14 2. Using “Advanced_IP_Scanner” software to find the IP address. Please visit www.advanced-ip-scanner.com for free download. Then enter the IP address of MAP-1200PRE to the IE browser (shown as below), ensure the Serial Configure is 9600,n,8,1. After finishing this step, MAP-1200PRE...
  • Page 15 Download free software “PuTTY” Tool from the internet to control the device. Operation diagram as below:...
  • Page 16 Click Telnet, enter the IP address of MAP-1200PRE and port: 8080. Click Open. When the IP address connected, the operation diagram shows as below: Key in the command code to control MAP-1200PRE. For the detail of command codes, please find the RS-232 command codes in this...
  • Page 17 MAP-1200PRE supports bi-directional RS-232 communication with third party automation systems. All keypad and remote control operations can be controlled via RS-232 in addition to system expansion up to 18 zones or 3 MAP-1200PRE units linked together using the included 18 pin expansion cable.
  • Page 18 Click Open. Note: To find the information for the COM port, please open the device manager of the computer, shown as below: When the IP address connected, the operation diagram shows as below: Key in the command code to control MAP-1200PRE.
  • Page 19 MAP-1200PRE RS-232 CONTROL CODES (Baud Rate: 9600,8,N,1 , DB9 Connector Pin out, Tx, Rx, GND) 'CR':Carriage Return (0x0D) Not case sensitive Control Command Structure <xxPPuu'CR' Reply Control Command Structure >xxPPuu'CR' xx: Represent control command code 10 :All zones of host computer 1...
  • Page 20 30 :All Zones of host computer 3 11 :Zone1 of host computer1 12 :Zone2 of host computer1 13 : Zone3 of host computer1 21 : Zone1 of host computer2 22 : Zone2 of host computer2 23 : Zone3 of host computer2 ....
  • Page 21 BL:Balance Control CH:Source Control LS: The connection status of line control Reply command: >xxPPuu'CR' Enter1<********'CR' Change Source 1 display name;********It must be 8 effective ASCII code Enter2<********'CR' Change Source 2 display name Enter 3<********'CR' Change Source 3 display name Enter 4<********'CR' Change Source 4 display name Enter 5<********'CR' Change Source 5 display name Enter 6<********'CR' Change Source 6 display name Enter M<********'CR' Change display name of connect control when it starts...
  • Page 22 EXAMPLES OF RS-232 COMMAND CODE All Zone ON <10PR01 Zone 1 ON <11PR01 All Zone OFF <10PR00 <21PR00 Salve 1 / Zone 1 OFF All Zone Mute ON <10MU01 <16MU01 Zone 6 Mute ON All Zone Mute OFF <10MU00 <35MU00 Salve 2 / Zone 5 Mute OFF All Zone Source 01 <10CH01...
  • Page 23 INQUIRY COMMAND STRUCTURE Symbol Zone Master、Salve 1、Salve 2 1、2、3 Inquiry Master All Zone Status Inquiry Slave1 All Zone Status Inquiry Slave2 All Zone Status REPLY COMMAND >xxaabbccddeeffgghhiijj xx: Unit / Zone >1100000000200707100100 aa: PA IN Status bb: Power Status cc: Mute Status dd: DT Status ee: Volume Status ff: Treble Status...
  • Page 24 APP QUICK START Download the control APP: 1. The control APP is available for Apple iPhone/iPad and Android smart phone/Pad, 2. Please search “MAP-800/1200” on Google Play / App Store to download. 3. Download and install the APP Note. This APP is applied to McLLELLAND controller and Multi-Room amplifiers...
  • Page 25 APP QUICK START – FUNCTION INSTRUCTION 1. Output Zone Selection (Press and hold the button to change the zone name) 2. Input Source Selection Press and select the input source. The name of input source could be changed. 3. Treble/Bass/Balance 4.
  • Page 26 When the MASTER amplifier connecting with additional SLAVE1/SLAVE2 amplifiers, press one of these buttons to determine which amplifier will be controlled. 6. 6 Zones/4 Zones Selection Select 6 Zones or 4 Zones for corresponding MASTER/SLAVE1/SLAVE2 amplifier. Note: MAP-1200PRE is 6 zone controller.
