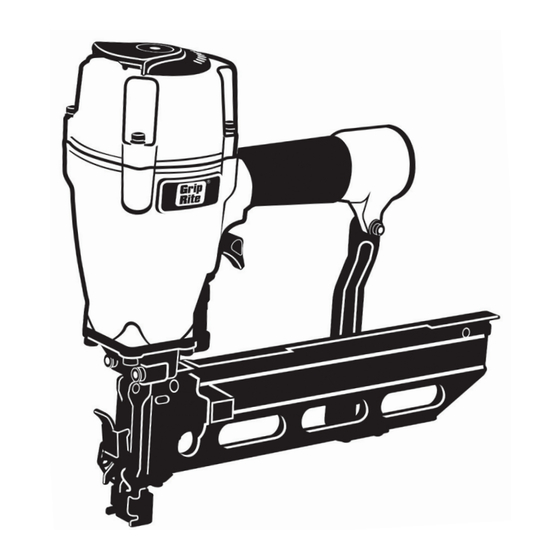

- Page 1 OPERATOR’S MANUAL AND PARTS LIST MODEL GRTSM2515 STAPLER www.grip-rite.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS -------------------------------- 2 SPECIFICATIONS ---------------------------------------- 3 Fastener Selection Chart ------------------------- 3 SAFETY ----------------------------------------------------- 4 TOOL PARTS---------------------------------------------- 8 PART DESCRIPTIONS --------------------------------- 9 OPERATION ----------------------------------------------10 Loading Staples ------------------------------------10 Adjusting Fastener Drive ----------------------- 11 Clearing Staple Jams ----------------------------- 11 Tool Operation --------------------------------------12 MAINTENANCE -----------------------------------------13 Lubrication -------------------------------------------13... -
Page 3: Specifications
SPECIFICATIONS SPECIFICATIONS MODEL GRTSM2515 FASTENER RANGE 1-1/4” - 2-1/2 ” (32 mm - 65 mm) FASTENER TYPE 15 Ga. Staples CROWN SIZE 7/16” (11.1 mm) Medium Crown MAGAZINE CAPACITY 150 STAPLES MAX AIR PRESSURE 120 psi (8 bar) MIN AIR PRESSURE 70 psi (4.8 bar) -
Page 4: Safety
SAFETY SAFETY LABELS This pneumatic fastening tool includes a warning label to help remind you of important safety information when operating the tool. 122x25mm(3R) SAFETY SYMBOLS These safety symbols provide a visual reminder of basic safety rules, and the personal injury hazard that may arise if all safety and operat- ing instructions are not followed. - Page 5 SAFETY SAFETY INSTRUCTIONS WEAR SAFETY GLASSES Always wear safety glasses with side shields that meet ANSI Z87.1 requirements when operating the tool. Make sure all others in work area wear safety glasses. WEAR HEARING PROTECTION Wear hearing protection to protect your hearing from noise. Prolonged exposure to loud noise can result in hearing loss.
- Page 6 SAFETY SAFETY INSTRUCTIONS DO NOT ATTEMPT TO OPERATE THE TOOL IF THE TOOL’S OPERATING CONTROLS HAVE BEEN MODIFIED OR ARE NOT WORKING PROPERLY. Attempting to use a tool with modified or malfunctioning trigger or workpiece contact can result in a fastener being driven unintentionally.
- Page 7 SAFETY SAFETY INSTRUCTIONS KEEP HANDS AND BODY PARTS AWAY FROM AREA BE- ING FASTENED. Fasteners can deflect and turn as they are being driven into the workpiece, and penetrate fingers, hands, and other body parts that may be in the fastening area. DO NOT OVERREACH OR WORK WHILE ON UNSTABLE FOOTING If you lose your balance while fastening, you could drive a...
-
Page 8: Tool Parts
DESCRIPTION TOOL PARTS... -
Page 9: Part Descriptions
DESCRIPTION PART DESCRIPTIONS 1. 360° Adjustable Air Deflector - Tool-free adjustment blows exhaust air away from operator. 12 locking positions for secure settings. 2. Cushioned Grip - Cushioned handgrip reduces fatigue and pro- vides comfortable operation. 3. Selectable Trigger (Standard) - Bump fire actuates tool when work piece contact is depressed against work surface. -
Page 10: Operation
OPERATION LOADING FASTENERS LOADING INSTRUCTIONS DANGER A fastener can be driven unintentionally if the trigger and safety bracket are activated at the same time. Always disconnect tool from air supply before loading fasteners, making adjustments, or performing any ser- vice on tool. Keep finger off trigger until ready to drive a fastener. 1. -
Page 11: Adjusting Fastener Drive
OPERATION ADJUSTING STAPLE DRIVE 1. Disconnect tool from air supply using quick-connect coupling. 2. Turn red depth of drive adjust- ment wheel to adjust staple drive. 3. Arrows near the adjustment MOVEs wheel indicate which way to TIP UP turn the wheel for adjustments. &... -
Page 12: Tool Operation
OPERATION TOOL OPERATION CONTACT TRIP (BUMP FIRE) DRIVING METHOD To operate this tool in contact trip (bump fire), move the trig- ger selector to the multiple nail position. 1. Position the nose of the tool over the work surface, near the area where the first fastener is to be driven. 2. Squeeze and hold the trigger in the depressed position. 3. -
Page 13: Maintenance
MAINTENANCE MAINTENANCE Your tool will last longer and perform better if periodic maintenance is performed. Please use the information below to keep your tool operating in top condition. Lubrication Disconnect tool from the air supply and remove all fasteners. Apply 2 - 3 drops of air tool oil (provided) in the air inlet two - three times a day. -
Page 14: Parts Schematic
PARTS SCHEMATIC... -
Page 15: Parts List
PARTS LIST ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION 401 GRBN661 BASE 101 GRBN438 DEFLECTOR PAD 102 GRBN439 DEFLECTOR 402 GRBN462 O - RING 103 GRBN440 O - RING 403 GRBN688 HEX.SOC.HD.BOLT 404 GRBN461 O - RING 104 GRBN686 BOLT W/FLAT WASHER 105 GRBN305 HEX.SOC.HD.SCREW 405 GRBN682... -
Page 16: Troubleshooting
TROUBLESHOOTING TOOL TROUBLESHOOTING Your pneumatic fastening tool has been designed for long life and trouble-free operation. However, if operating problems arise, please use the troubleshooting information below to determine how to remedy the problem. DANGER Always disconnect tool from air supply before performing any service on tool. -
Page 17: Tool Checks
TROUBLESHOOTING FASTENER DRIVING PROBLEMS Tool operates, but no Check nose for jammed fastener. Clear jam fastener is driven. and reload magazine. Check staple strips for smooth feeding in magazine. Tool won’t operate - Remove jammed fastener. Check magazine staple jammed in tool for incorrect, bent, or loose fasteners, and nose, preventing tool discard. -
Page 18: Warranty
WARRANTY PNEUMATIC TOOL/COMPRESSOR WARRANTY Pneumatic nailers, staplers & compressors marketed under the GRIP RITE TM brand are warranted to be free from defects in workmanship & materials (except rubber o-rings, bumpers, seals, driver blades, dipsticks, & air filters) for a period of one year from the date of original purchase. This warranty will not apply when:·... - Page 19 WARRANTY PNEUMATIC TOOL/COMPRESSOR SERVICE INFORMATION Should any mechanical problems develop during the life of your equipment the following options are available for service and parts: •Call (800)676-7777 where you will be routed to the nearest PRIMESOURCE® distribution center and directed to the near- est authorized service/warranty center.
- Page 20 ® MANSM2515...
