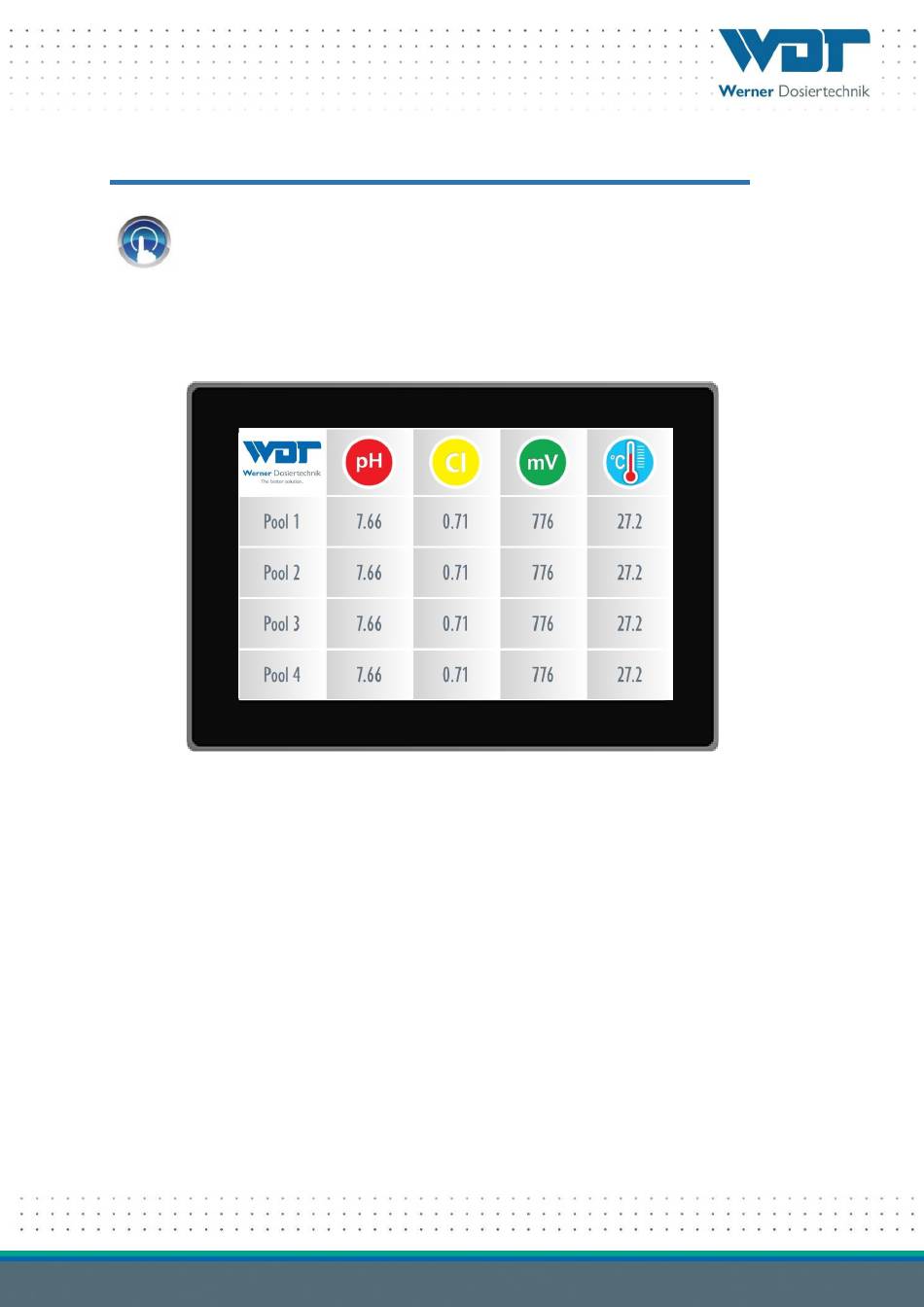

- Page 1 Operating and installation instructions Tele Indication Type 10” Touch-V1 Article no: 25229 BA MR 002-00 Fernanzeige V1 EN.docx Language: EN...
-
Page 2: Table Of Contents
Tele Indication, Type 10” Touch-V1 Table of contents 1 About these instructions / general ......................3 1.1 Scope of applicability ............................3 1.2 Target group ..............................3 1.3 Symbols used ..............................3 1.4 Warranty ................................. 4 1.5 Further information ............................4 2 Safety .............................. -
Page 3: About These Instructions / General
Reproduction of any kind and translation into other languages, even in excerpts, are only permitted with the express authorisation of the company WDT - Werner Dosiertechnik GmbH & Co. KG. These operating instructions are an English translation of the original German version by the company WDT. Responsible for the content: Co. -
Page 4: Warranty
All devices and systems of the Co. WDT are manufactured using state-of-the-art manufacturing methods and are subject to a comprehensive quality control. However, should there be a reason for complaint, any compensation claims shall be directed to the company WDT in accordance with the general terms and conditions of warranty (see below). -
Page 5: Safety
Tele Indication, Type 10” Touch-V1 Safety 2.1 Intended use The Tele Indication Type 10” Touch-V1 may only be used for the purpose listed in the product description under Chapter 3.2! In this context, all locally applicable provisions (e.g., UVV [Accident Prevention Regulation], DGUV [German Social Accident Insurance]) for the prevention of accidents and occupational safety must be observed! 2.2 Safety notices... -
Page 6: Product Description - Scope Of Delivery
Tele Indication, Type 10” Touch-V1 Product description – scope of delivery 3.1 Scope of delivery / accessories The Tele Indication Type 10” Touch-V1 consists of an embedded PC with touch operation, the software and an optional installation frame. Figure 1, Remote display It contains the following individual components: 1. -
Page 7: Technical Data
Tele Indication, Type 10” Touch-V1 3.4 Technical data 10“ Touch-V1 Item no. 25229 Dimensions and weights: External dimensions 27.3x19.0x4.0cm (WxHxD) Space requirement Weight approx. 1kg Connection data Electrical connection data 230VAC, 50Hz, 20W, mains plug Network connection RJ45 plug Hydraulic connection data Required duct connection Protection class IP20... -
Page 8: Installation
Tele Indication, Type 10” Touch-V1 Installation 4.1 Select the installation site The installation site must have the following properties: 1. Do not operate the device in direct sunlight, near heat sources or in a humid place. 2. Keep the device away from water and other liquids. 3. -
Page 9: Mechanical Installation
Tele Indication, Type 10” Touch-V1 4.3 Mechanical installation ATTENTION! Ensure that the lines can move freely towards the back for installation and dismantling. Install the remote display at the desired location: 1. Make the wall cut-out (280x197mm) for the remote display according to the installation drawing. Required installation space at least 60mm deep! Installation drawing Wall... -
Page 10: Hydraulic Installation
Tele Indication, Type 10” Touch-V1 4.4 Hydraulic installation No hydraulic installation. 4.5 Electrical installation The electrical installations in the room must comply with the requirements of the local (country-specific) regulations. All plugs on the connecting cables must be screwed or locked to the housing. ESD SENSITIVE! The electronic components in the control housing of the Tele Indication Type 10”... -
Page 11: Operation / Service
Tele Indication, Type 10” Touch-V1 Operation and use 6.1 General The tasks described here may only be carried out by appropriately trained and instructed personnel. Alternatively, the work may be carried out by operating personnel who have read and understood the entire Operating Instructions and are familiar with the device. -
Page 12: The Main Menu
Tele Indication, Type 10” Touch-V1 The main menu When power is supplied to the device, the system starts up and automatically enters the Slideshow mode. The slideshow shows the different displays, here referred to as slides. The measured values of the connected devices and cabins as well as the information menus are displayed in succession. -
Page 13: Main Groups And Symbols
Tele Indication, Type 10” Touch-V1 6.3.2 Main groups and symbols In the main menu, you can choose between 3 main groups. 1. Start Slideshow 2. Settings 3. Info Explanation of the symbols Use the Home button to return to the main menu. Use the Return button to return to the previous display. -
Page 14: Main Group Settings
Tele Indication, Type 10” Touch-V1 6.5 Main group Settings The displays for the pool and spa values can be configured here, and the system settings can be adjusted. There are 6 setting groups: 1. Slide 1.1 2. Slide 1.2 3. Slide 3.1 4. -
Page 15: Setting Group Slide 1.2, Pool Values Pool 5-8
Tele Indication, Type 10” Touch-V1 6.5.2 Setting group Slide 1.2, Pool values Pool 5-8 Enter pool names and IP addresses. Same procedure as for Slide 1.1. 6.5.3 Setting group Slide 3.1, Spa values Area 1-4 Enter the spa names and IP addresses ... -
Page 16: Setting Group Slide 3.2, Spa Values Area 5-8
Tele Indication, Type 10” Touch-V1 6.5.4 Setting group Slide 3.2, Spa values Area 5-8 Enter spa areas and IP addresses. Same procedure as for Slide 3.1. 6.5.5 Setting group Global settings (Display may vary) Languages Activate the languages to be displayed in the slideshow. Display duration of the slides Adjust the display duration for the individual slides using the slider or the - and + buttons. - Page 17 Tele Indication, Type 10” Touch-V1 Date / Time Use the + and - buttons to set the desired date and time. Save and finish your entry with the OK button. TIP! The time must be manually adjusted to summer or winter time! Password assignment Here, you can change the passwords for the different user levels.
- Page 18 Tele Indication, Type 10” Touch-V1 period of time. If the screen is touched during this time, the display switches to the backlight setting for 10 seconds. Screensaver Adjust the brightness for the Screensaver mode using the slider or the - and + buttons. Test Test the settings for the screensaver.
-
Page 19: Main Group Info
Tele Indication, Type 10” Touch-V1 Language Select the desired language for the system settings. The display immediately switches to the selected language. 6.6 Main group Info Select the Info button in the main menu. The information data of the remote display are shown. 6.7 Logout Start the slideshow to log out of the menu, or wait one minute;... - Page 20 Tele Indication, Type 10” Touch-V1 Slide 4 (e.g., price list) Price list -2 hours ..- 4 hours ..- Day pass ..Slide 5 (e.g., logo and advertising text) Your advertisement could appear here Procedure for configuring slides 2, 4 and 5 Disconnect the device from the power and secure it against being reactivated! 1.
- Page 21 Tele Indication, Type 10” Touch-V1 6. Change the file to show the desired texts. Rules of conduct - Shower with soap before using the pool - The instructions of the personnel must be followed. 7. Save the file in UTF-8 Code! 8.
-
Page 22: Maintenance, Care, Faults
Tele Indication, Type 10” Touch-V1 Maintenance, care, faults 7.1 Device maintenance Clean the device at regular intervals. 7.2 Regular water check Not required 7.3 Fault removal / Error codes In the event of faults or malfunctions, please proceed according to the following description. 1. -
Page 23: Operation Data Sheet
Tele Indication, Type 10” Touch-V1 9.4 Operation data sheet TIP! During commissioning, enter the operating parameters in the operation data sheet! Optimised during Settings menu Factory setting Setting ranges Step during commissioning operation Date: Date: Display settings Screensaver 90 % 20-100% Time for screensaver Screensaver active... - Page 24 Tele Indication, Type 10” Touch-V1 Operation data sheet, --master copy-- Optimised during Settings menu Factory setting Setting ranges Step during commissioning operation Date: Date: Display settings Screensaver 90 % 20-100% Time for screensaver Screensaver active activated activated/deactivated Backlight 90 % 20-100% Password assignment Password Visitor...
-
Page 25: Maintenance Protocol
Do you need spare parts, wear parts or consumables? You are welcome to order these from your service partner or your specialist dealer. Spare part list Device Position Designation Article no. WDT Remote display Control panel 24922 Power pack Installation frame...
