WIRED

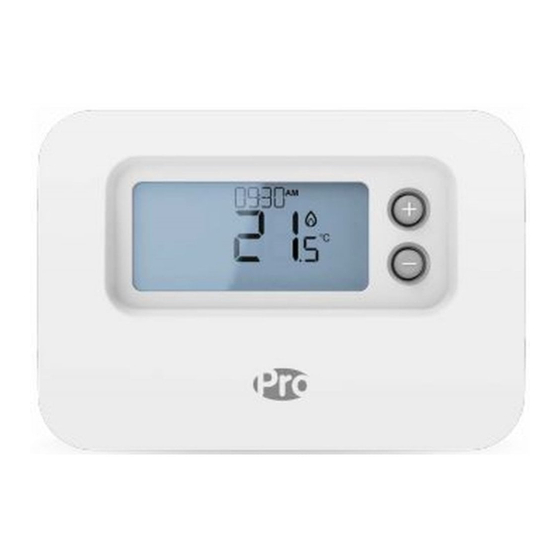

PROGRAMMABLE
THERMOSTAT
Installation Guide
2
Installing the Thermostat
1
2
OFF
See Wiring Diagrams overleaf
Must be installed by a competent person.
To ensure your safety make sure the mains power is switched
OFF before accessing wiring.
FPP15206
To prevent a short circuit from a loose wire:
• Multi-core cables: Only remove enough outer insulation to
allow secure fixing of the cores into the terminal block.
• Single core cables: Secure them together with a cable tie as
close as possible to the terminal block.
3
B
B
2.
4
1.
Choosing a suitable location for the
1
Thermostat
1.2-1.5m
5
6
ON
Advertisement
Table of Contents
Related Manuals for Pro FPP15206
Summary of Contents for Pro FPP15206
- Page 1 To ensure your safety make sure the mains power is switched OFF before accessing wiring. 1.2-1.5m Installation Guide FPP15206 To prevent a short circuit from a loose wire: • Multi-core cables: Only remove enough outer insulation to allow secure fixing of the cores into the terminal block.
- Page 2 Wiring Diagrams On/off boiler (230V) Combi boiler 2-Port Zone Valve Programmable Programmable Programmable Thermostat Thermostat Thermostat 3(1)A 3(1)A 3(1)A T1 T2 Permanent Live not required Combi- Boiler Zone Valve Basic Boiler Adjusting the Thermostat Parameters Description Settings 3:OT Min. On Time 1- 5min 4:LL Lower Limit...
