- Page 1 TH01TS PROGRAMMABLE TOUCH SCREEN THERMOSTAT...

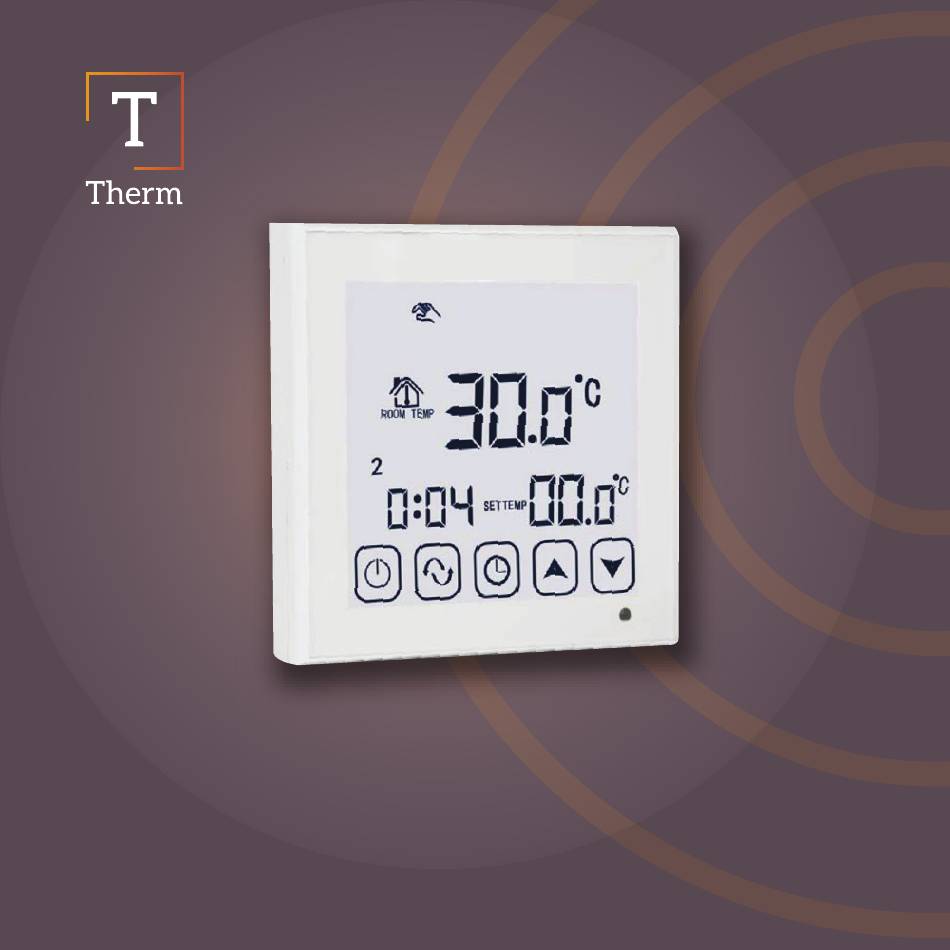

- Page 2 FEATURES Large full LCD screen with crystal white backlight display and dual temperature. 24 hour time and day of the week display 6 period programmable time and temperature settings Internal or external temperature sensor option Room temperature is displayed on increments of 0.5°C. Adjustable temperature settings for occupants comfort Memory storage in event of power failure The 'TFHS' programmable touch screen thermostat is designed...
- Page 3 HM01TS STAT SYMBOLS On / Off Function Key Time Setting Increase Decrease Button...
- Page 4 SETTING AUTOMATIC HEATING CONTROL All these settings should be programmed with Thermostat Power On 1) Time Setting and Day of Week Press key once to change to the correct time using or to adjust the hour. Then press again to change the minute then finally again to change the day of the week.
- Page 5 DEFAULT FACTORY HEAT SETTINGS Days Event Icon Time Period Temp. 06.00 hrs 20° C 08.00 hrs 15° C 1 – 6 11.30 hrs 15° C Monday 12.30 hrs 15° C Saturday 17.30 hrs 22 ° C 22.00 hrs 15° C 08.00 hrs 15°...
- Page 6 Notes Temperature can be temporally adjusted using or . The hand will flash to show the temporary temperature adjustment but will disappear and return back to auto when your next scheduled temperature setting starts. Setting temperature to 00.0°C will shut down the scheduled setting The thermostat offers a choice of room sensor, remote sensor or alternatively both together When set to room sensor the display shows ROOM TEMP when set to remote...
-
Page 7: Power Wiring Diagram
Temperature Calibration Measure temp - Calibrate if necessary Frost Protection 00: Off 00: Off 01: On Memory 00: Off 00: Off 01: On Factory Default 00: To Restore Factory 08: Default Display Number Settings 08: Default Display Number (no meaning) POWER WIRING DIAGRAM AC230V OPEN... -
Page 8: Installation Dimensions
INSTALLATION DIMENSIONS INSTALLATION To open, push a flat Push the back from the connect wiring as Screw thermostat back Re connect plug and screwdriver in to both slots front as shown, remove indicated above plate to 35mm wall box snap thermostat on in the bottom of the connecting plug to lugs... - Page 9 RADIO FREQUENCY THERMOSTAT usb power supply MC6RF...
- Page 10 WIRED THERMOSTAT 3AMP black or white black or white...
- Page 11 WIRING CENTRE 10 ZONE WB10...
