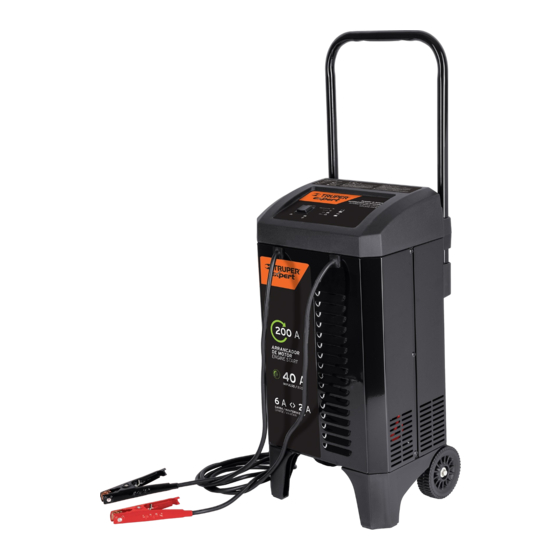

Instructivo
Cargador de batería automático
con arrancador
Modelo: CARBA-200X
Código: 19589
Lea este Instructivo por completo
ATENCIÓN
antes de usar la herramienta.

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Expert CARBA-200X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Truper Expert CARBA-200X

  • Page 1 Instructivo Cargador de batería automático con arrancador Modelo: CARBA-200X Código: 19589 Lea este Instructivo por completo ATENCIÓN antes de usar la herramienta.
  • Page 2: Table Of Contents

    Carga / mantenimiento: 2 A - 6 A revisar en un Centro de Servicio Autorizado Truper Arranque de motor: 200 A 9. No desarme el cargador; hágalo revisar por en un Centro de...
  • Page 3: Precauciones De Seguridad Personal

    5. Lea, comprenda y siga todas las instrucciones para el PRECAUCIONES DE SEGURIDAD PERSONAL cargador, la batería, el vehículo y cualquier equipo que se 1. Considere la idea de que alguna persona se encuentre cerca utilice cerca de la batería y el cargador. Controle todas las suyo para poder ayudarlo cuando trabaje en forma cercana a precauciones específicas establecidas por el fabricante de la una batería de plomo-ácido.
  • Page 4: Siga Estos Pasos Cuando La Batería Esté Colocada En El Vehículo

    SIGA ESTOS PASOS CUANDO LA BATERÍA ESTÉ COLOCADA EN 5. No se ubique en posición frontal a la batería al realizar la EL VEHÍCULO conexión final. 6. Al desconectar el cargador, siempre hágalo en forma inversa ADVERTENCIA UNA CHISPA PROVOCADA CERCA DE LA al procedimiento de conexión y realice la primera conexión BATERÍA PUEDE CAUSAR LA EXPLOSIÓN DE LA BATERÍA.
  • Page 5: Instrucciones De Montaje

    INSTRUCCIONES DE MONTAJE • (AMARILLO/NARANJA) Encendido: El cargador está conectado y la batería está recibiendo Desenrede todos los cordones y extienda los cables antes de alimentación. usar el cargador de baterías. • LED Cargado / Mantenimiento (VERDE) Encendido: Extienda el asa desde la posición retraída tirando de él hacia La carga de la bateria está...
  • Page 6 MODO DE IMPULSAR 4. Con el cargador enchufado y conectado a la batería del vehículo, ajuste el interruptor de encendido / apagado (ON / NOTA: La unidad cambiará automáticamente al modo OFF) en la posición de arranque del motor. impulsar, dependiendo de la tensión. Para seleccionar el 5.
  • Page 7: Mantenimiento Y Cuidado

    FINALIZACIÓN DE LA CARGA FUNCIONAMIENTO DEL VENTILADOR La finalización de la carga se indica con el LED cargado Es normal que el ventilador funcione continuamente. Mantener /mantenimiento (VERDE). Cuando está encendido, el el área cerca del cargador sin obstrucciones para permitir que cargador ha pasado de modo de mantenimiento.
  • Page 8: Localización Y Resolución De Problemas

    LOCALIZACIÓN Y RESOLUCIÓN DE PROBLEMAS PROBLEMA CAUSA POSIBLE SOLUCIÓN • El cargador no se enciende • Tomacorriente de la corriente • Controle la posible presencia de fusibles incluso al estar bien conectado. alterna fuera de funcionamiento. abiertos o disyuntores que suministren energía al tomacorriente de la corriente alterna.
  • Page 9 ROBLEDO, COL. CENTRO, C.P. 43600, TULANCINGO, HGO. C.P. 90970, SN. PABLO DEL MONTE, TLAX. TEL.: 22 2271 7502 TEL.: 77 5753 6615 / 77 5753 6616 VERACRUZ | LA CASA DISTRIBUIDORA TRUPER JALISCO | SUCURSAL GUADALAJARA BLVD. PRIMAVERA. ESQ. HORTENSIA S/N, COL. PRIMAVERA AV.
  • Page 10 Los gastos de transportación que resulten para su cumplimiento serán cubiertos por Para dudas o comentarios, llame al 800-690-6990. Hecho en México Sello del establecimiento comercial. Fabricado por: Truper, S.A. de C.V. Parque Industrial #1, Fecha de entrega: Jilotepec, Edo. de Méx., Méx. C.P. 54240 10-2019...

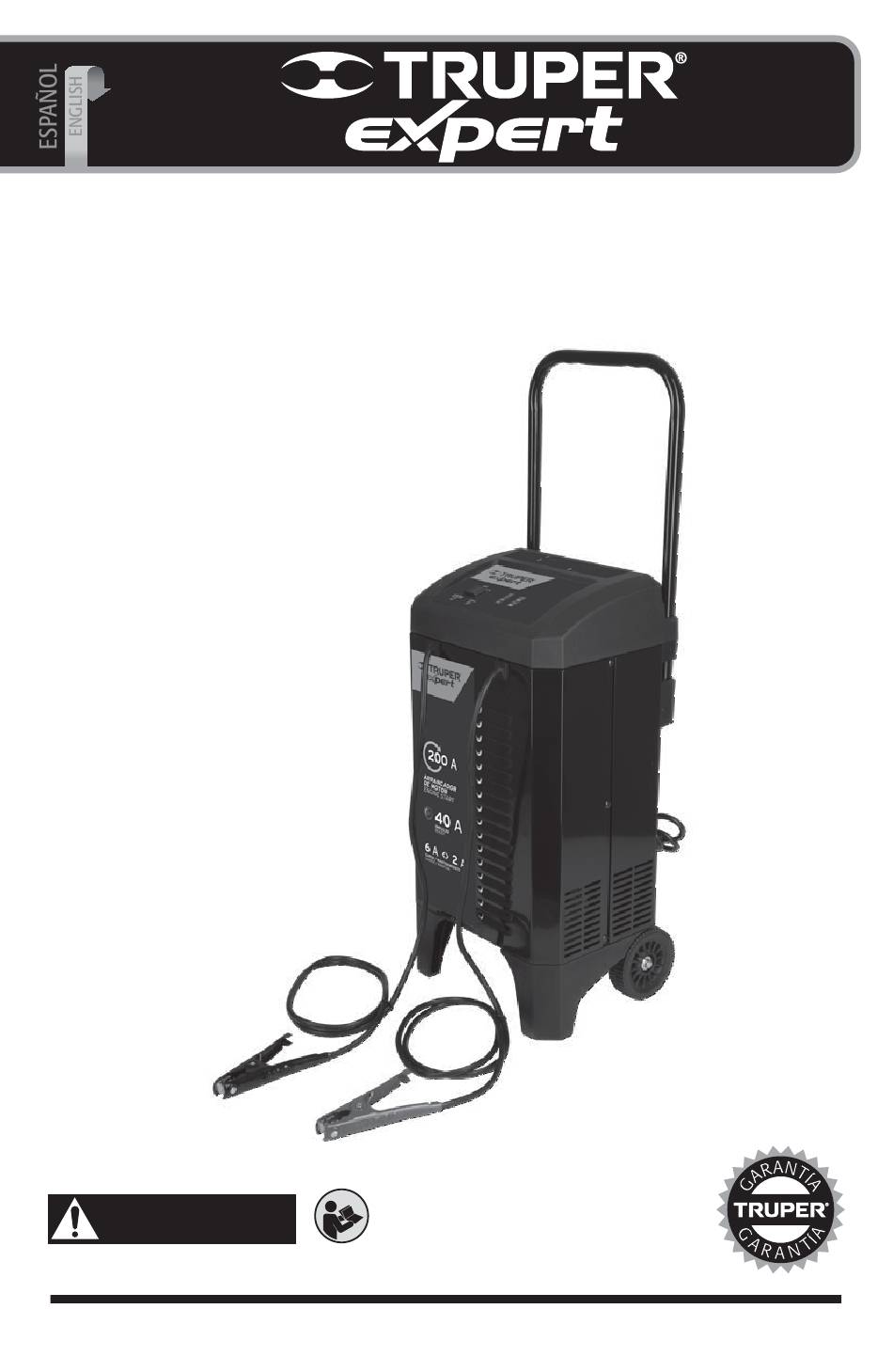

  • Page 11 Manual AUTOMATIC Battery charger with jump starter Model: CARBA-200X Code: 19589 Read the user’s manual thoroughly CAUTION before operating this tool.
  • Page 12 Truper Authorized Service Center Output 9. Do not disassemble the charger. Ask a trained person to Voltage: 12 V check at a Truper Authorized Service Center. If you assemble Impulse: 40 A it back it may cause fire or electric shock. Maintenance Load: 2 A - 6 A 10.
  • Page 13: Personal Safety Cautions

    PLACEMENT OF THE CHARGER PERSONAL SAFETY CAUTIONS 1. Consider the idea of a second person close to the user to 1. Set the charger as far away as the DC battery cables allow. help, when working near an acid lead battery. 2.
  • Page 14: Ground Connections And A.c. Power

    6. When disconnecting the charger, do it in a reverse sequence FOLLOW THESE STEPS WHEN THE BATTERY IS INSTALLED IN THE VEHICLE. from the connection procedure and make the first connection as far away as possible from the battery. WARNING PRODUCING A SPARK, CLOSE TO THE BATTERY 7.
  • Page 15: Mounting Instructions

    MOUNTING INSTRUCTIONS • LED (YELLOW / ORANGE) ON: The charger is connected and the battery is being “fed” Untangle all the wires and extend the cables before using the battery charger. • LED Charging / Maintenance (GREEN) ON: Pull up the handle from the retracted position pulling upwards The battery charge is complete, the charger switched to until clicking in place (Push in the small silver buttons if maintenance mode...
  • Page 16 BOOST MODE 5. Start the motor until it starts running or after 5 seconds. If the motor is not starting, wait a few minutes before trying NOTE: The unit will change automatically to the boost again. This will cool down the charger and battery. mode, depending on the voltage.
  • Page 17: Maintenance And Care

    COMPLETING THE CHARGE FAN OPERATION Completing the charge is indicated with LED charging It is normal for a fan to operate continuously. Keep the area (GREEN). near the charger with no obstructions to allow the fan to work When the charger is ON it has passed from the function mode to correctly.
  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION • The charger is no ON even • Alternate current socket is not • Control the possible presence of open fuses when is well connected. functioning or disruptors supplying energy to the alternate current socket. •...
  • Page 19 ROBLEDO, COL. CENTRO, C.P. 43600, TULANCINGO, HGO. C.P. 90970, SN. PABLO DEL MONTE, TLAX. TEL.: 22 2271 7502 TEL.: 77 5753 6615 / 77 5753 6616 VERACRUZ | LA CASA DISTRIBUIDORA TRUPER JALISCO | SUCURSAL GUADALAJARA BLVD. PRIMAVERA. ESQ. HORTENSIA S/N, COL. PRIMAVERA AV.
  • Page 20 . For questions or comments, call 800-690-6990. Made in Mexico Manufactured by: Truper, S.A. de C.V. Parque Industrial #1, Jilotepec, Edo. de Méx., Méx. C.P. 54240 10-2019 Stamp of the business: Delivery date:...
