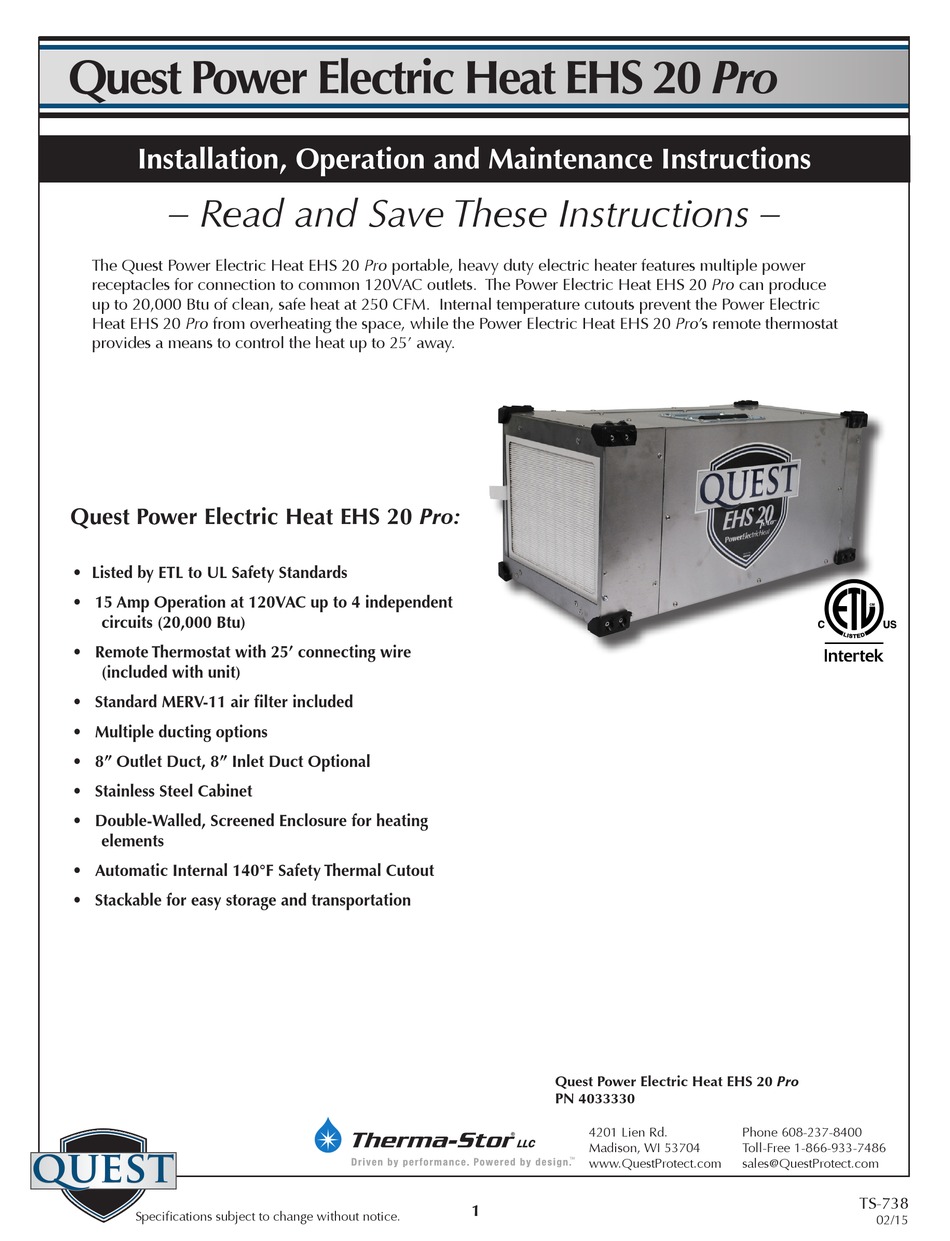

Quest DRY 150
Quest Power Electric Heat EHS 20 Pro
Installation, Operation and Maintenance Instructions
Installation, Operation and Maintenance Instructions
– Read and Save These Instructions –
The Quest Power Electric Heat EHS 20 Pro portable, heavy duty electric heater features multiple power
receptacles for connection to common 120VAC outlets. The Power Electric Heat EHS 20 Pro can produce
up to 20,000 Btu of clean, safe heat at 250 CFM. Internal temperature cutouts prevent the Power Electric
Heat EHS 20 Pro from overheating the space, while the Power Electric Heat EHS 20 Pro's remote thermostat
provides a means to control the heat up to 25' away.
Quest Power Electric Heat EHS 20 Pro:
• Listed by ETL to UL Safety Standards
• 15 Amp Operation at 120VAC up to 4 independent
circuits (20,000 Btu)
• Remote Thermostat with 25' connecting wire
(included with unit)
• Standard MERV-11 air filter included
• Multiple ducting options
• 8" Outlet Duct, 8" Inlet Duct Optional
• Stainless Steel Cabinet
• Double-Walled, Screened Enclosure for heating
elements
• Automatic Internal 140°F Safety Thermal Cutout
• Stackable for easy storage and transportation
quest
quest
Specifications subject to change without notice.
Quest Power Electric Heat EHS 20 Pro
PN 4033330
4201 Lien Rd.
Madison, WI 53704
www.QuestProtect.com
1
Phone 608-237-8400
Toll-Free 1-866-933-7486
sales@QuestProtect.com
TS-738
02/15
