Summary of Contents for Skamol SkamoEnclosure

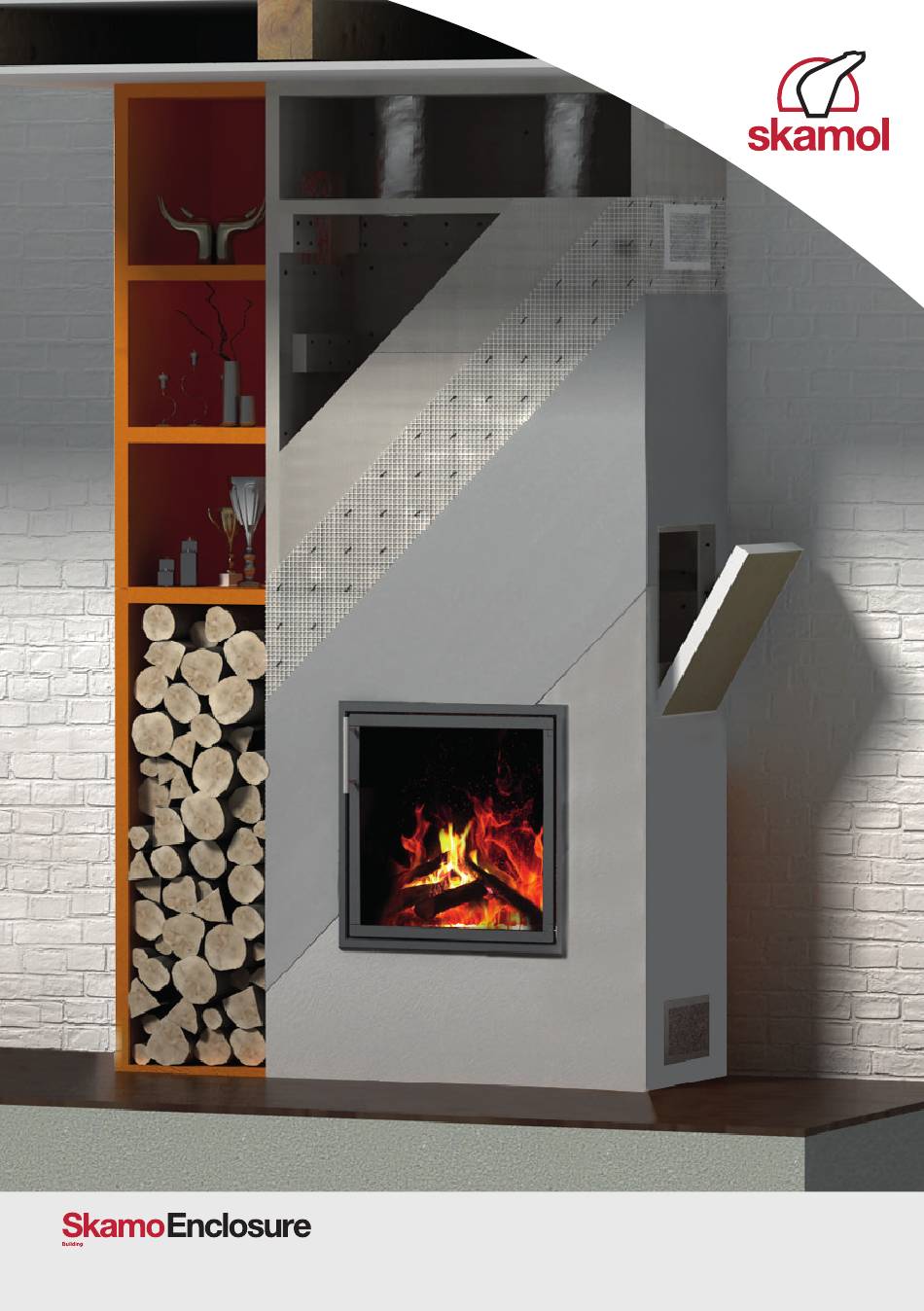

  • Page 1 Mounting instruction...
  • Page 2 In the package Left top board (1 pcs) Right top board (1 pcs) Front board (1 pcs) Side board (2 pcs) Stove shelf (1 pcs) Bottom plate (1 pcs) Back board (1 pcs) Internal reinforcement (3 pcs) Temporary plug 4 + 1 pcs...
  • Page 3 In the package SkamoEnclosure Corner (3 pcs) SkamoEnclosure Glue (1 tube) Screws 5×90 mm (50 pcs) SkamoEnclosure Primer (3 L) SkamoEnclosure Smooth Plaster (15 kg) SkamoEnclosure Mesh (1 roll) SkamoEnclosure Structural Plaster (18 kg) Tools needed Power drill Whisk Brick trowel...
  • Page 4 Assembly instructions 1. Begin with screwing the bottom and back board together. 2. Place the three reinforcements.
  • Page 5 Assembly instructions 3. Place the stove shelf. 4. Now place the enclosure on the exact spot. 5. Place the side boards.
  • Page 6 Assembly instructions 6. Place the front board. 7. Place the insert.
  • Page 7 Assembly instructions 8. Connect the chimney. 9. Place the left top board.
  • Page 8 10. Place the right side board. 11. Place the temporary plugs. These are only used when plastering. Skamol Group Sletvej 2C, 8310 Tranbjerg, Denmark Tel.: +45 97 72 15 33 www.skamol.com...
