  • Page 1 X.LiNK-XS3 user maNual...

  • Page 2: Table Of Contents

    Contents • Introduction ..............• Safety Precautions ............• Overview ............... • Characteristics ............• Product Description ............• Assembly Guide ............• Scope of Delivery ............• Operation ..............• Features ................. • Maintenance ..............• Troubleshooting ............• Technical Specifications ..........•...

  • Page 3: Introduction

    All third-party brands or copyrights mentioned in this manual are the property of their respective owners. This manual is valid for: DC-X.LINK-XS3.HDMI DC-X.LINK-XS3.SDI Warranty This product has a limited warranty of one year, starting from the date of purchase.

  • Page 4: Safety Precautions

    Safety Precautions WARNING: READ BEFORE USE TO REDUCE THE RISK OF PERSONAL INJURY OR PROPERTY DAMAGE, INCLUDING DAMAGE TO YOUR TRANSMITTER/RECEIVER AND OTHER POTENTIAL HAZARDS. HANDLING Handle your DC-LINK system with care. You may damage the devices if you disassemble, drop, bend, burn, crush or otherwise subject them to un necessary force.

  • Page 5: Overview

    PROLONGED HEAT EXPOSURE Your DC-LINK system generates heat during normal operation and complies with applicable surface temperature standards and limits. Avoid prolonged, direct or indirect skin contact when the devices are in use because exposing skin to hot surfaces for a long period of time may cause discomfort or burns. ENVIRONMENTAL RESTRICTIONS To prevent damage to your DC-LINK system, do not use or store the devices or accessories in dusty, smoky, damp, or dirty environments.

  • Page 6: Characteristics

    Characteristics • Max. transmission range 300m/1000ft line of sight • Rapid and reliable connectivity, no need for complex pairing • Real-time transmission with no latency (< 0.001s) • Uncompressed transmission. 10-bit, 4:2:2 transmissions via 3G-SDI or HDMI without format conversion •...

  • Page 7: Product Description

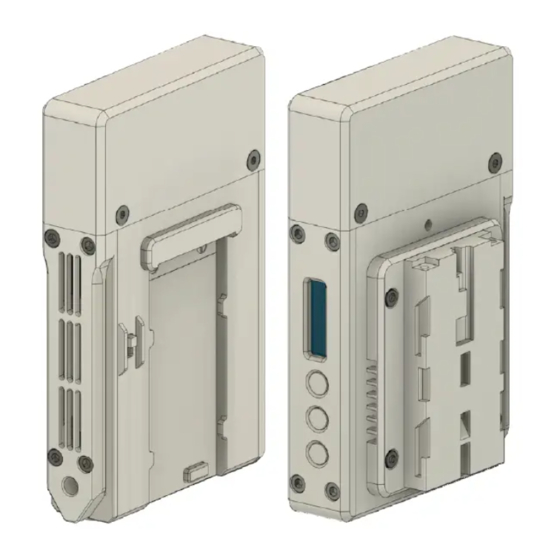

    Product Description XS3 Receiver 1) 1/4“ Thread 2) Control Buttons 3) Menu Button 4) OLED display 5) Power Switch 6) HDMI OUT 7) DC-IN 7,2 - 18V 8) Mini USB: For firmware upgrade 9) NPF Battery Port 10) Nato Rail 11) NPF Sandwich Plate 12) Battery Release Button...

  • Page 9: Assembly Guide

    Scope of Delivery 1x Receiver 1x Multidirectional NPF Battery Plate 1x Spacer for NPF Battery Plate 1x Mounting Piece for NPF Battery Plate 1x Power Cable 4pin to D-Tap 4x M3x6 socket head screws 4x M3x25 flat head screws Quick Start Guide Assembly Guide USB flash drive with product manual Operation...

  • Page 10: Features

    Features Menu Navigation Use the MENU button to easily navigate through the sub menus of your DC-LINK device. Press several times until the referring indicator is flashing. Then use + and – to change the state and confirm with MENU. OLED Display TThe OLED Display shows all important information on the transmitter and the receiver.
  • Page 11 Multi Brand Connectivity Your X.LINK-XS3 receiver is equipped with DwarfConnections’s unique Mul- ti Brand Connectivity Feature that makes it compatible with most common non-DFS WHDI wireless video systems on the market by letting you choose from different frequency sets.
  • Page 12 Metadata Cross Translation* Camera metadata is transmitted through SDI only. On your XS3 HDMI receiver, the incoming information is translated into HDMI, which allows you to use meta- data bound features, like automatic recording on your monitor. Fan Control & Cinema Mode Fan control allows you to turn the fans of the devices on or off to keep them cool but also prevent unwanted noise.
  • Page 13 IMPORTANT: Switching back and forth between two encrypted systems is not possible. You cannot slip into an encrypted wireless system, if your receiver was not initi- ally linked to the transmitter. If you want to add a new receiver to an encrypted system, you need to link the whole system again.

  • Page 14: Maintenance

    Maintenance Please do not attempt to repair, modify or alter these devices under any circumstances. Clean the devices with a soft, clean, dry and lint-free cloth. Do not open the devices, they contain no user-serviceable parts. Storage The devices can be stored at temperatures between -20°C and 60°C. For long- term storage, please use the original transport case and avoid environmental conditions such as high humidity, dust, or excessively acidic or base surroundings.

  • Page 15: Technical Specifications

    Technical­Specifications HDMI 2x SDI Output (BNC female) 1x HDMI Input (Type A female) Connections 1x HDMI Output (Type A female) 1x DC Input (4-pin female) 5x Antenna (RP-SMA male) 1x DC Input (4-pin female) Power 7,2 – 18,0V DC 7,2 – 18,0V DC Power Consumption <...

  • Page 16: Notes

    Notes...
  • Page 17 Notes...
  • Page 18 Notes...
  • Page 19 Notes...
  • Page 20 DwarfConnection GmbH & Co KG Münzfeld 51 4810 Gmunden AUSTRIA www.dwarfconnection.com...
