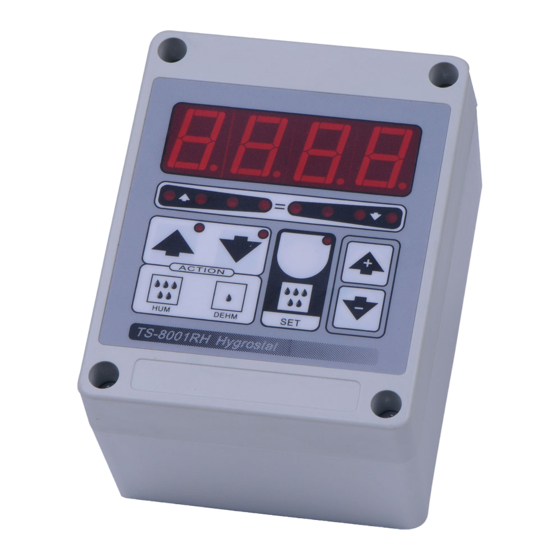

OLBA TS-8001RH Manual

TS-8001RH
Single-level hygrostat Manual
Ⅰ、MAIN SETTING (Run Mode)

SET HUMIDITY SETTING

Press SET (key lamp lights):
This message will be displayed instead of the
%RH humidity value.
Press + or - to modify, press SET to escape.
Druk op SET en stel de gewenste RV in.
Ⅱ、VIEWING HUMIDITY RECORDING
Press + :
Press - :
Values recorder are memory permanent stored: for memory clear keep pushed + keys
for more than 3 seconds: CLEA message will be composed on display before clearing
operation.
Ⅲ、COSt PROGRAMMING (System constants)
These settings refer to the mode operation of the system and must be made on initial
start-up.
Press - / + together for at least one second.
Druk op – en + op het zelfde moment en COSt verschijnt in beeld.
the message C.O.S.t. will be displayed.
Press than repeatly SET until interested variable's message is displayed (see table
below) : variable
Druk op SET om door het programma zoals hieronder beschreven te lopen.
value and related message will be displayed.
Press + or - to set a new value and then SET to confirm.
The next system constant will then appear.
You can press SET for a least two second to escape and return to the Run Mode.
Mess. Value Meaning
diFF 1.0H % Rh Set differential verschil tussen aan en uit
rELA 0.0H %Rh setting shift reffering to H.SEt
t.on 0" On out minimum time in seconds
t.oF 0" Off out minimum time in second
Ad.Hu 0.0° %Rh input humidity sensor correction (+ o -)
*1) For more details see Operating Diagrams.
*2) This Sets permit to determinate both On and Off delay actioning time.
Relative light (HUM-DEHM) flash during delay time.
*3) You can correct the readings on the various sensors (+ or -).
will be displayed followed by
°Maximum Humidity Recording.
will be displayed followed by
°Minimum Humidity Recording.
1
Example Set=80.0
Note
*1)
*1)
*2)
*2)
*3)
