Bright Solar Light
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.
Safety
•
Do not use the light in an environment where it could be
exposed to gas, steam or dust.
•
Do not look directly into the light beam. Doing so may
damage your eyesight.
•
Only use the recommended type of rechargeable batteries.
•
This product must not be modified or adapted in any way.
•
Only let a qualified technician perform repairs and using
only original spare parts.
•
Do not let children play with the product.
•
NEVER use non-rechargeable batteries in the light.
Product description
•

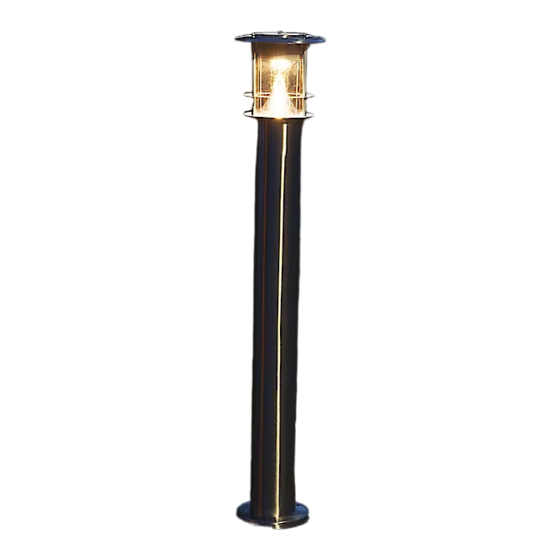

Solar-powered Bright LED bollard light
for powerful illumination.
•
Attached with screws onto wooden
decking, jetties, etc.
•
Turns on automatically at dusk.
•
Comes with 2 × AA/HR6 NiMH 600 mAh
rechargeable batteries and installation
screws.
•
Height above ground: 80 cm.
Diam: 14.5 cm.
Package contents
•
Lamp unit
•
Screws (2 ×)
•
Anchor plugs (2 ×)
GREAT BRITAIN • CUSTOMER SERVICE
tel. 020 8247 9300
e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.co.uk
Art.no 36-6183
Assembly and use
1. Place the solar light in a suitable location where there is
ample sunlight.
2. On the underside of the top cap there is an ON – OFF
switch. Set this switch to the ON position.
Care and maintenance
Wipe the product using a soft damp cloth as and when required.
Never use solvents or abrasive cleaning agents.
Specifications
Size
80 cm in length, 145 mm in diameter
Charging time Approximately 8–12 hours in direct sunlight
Operating time Approximately 5–6 hours when fully charged
Batteries
2 × 1.2 V/600 mAh, NiMH
Colour
3000 K
temperature
Model ST1016HO.8 SOLAR

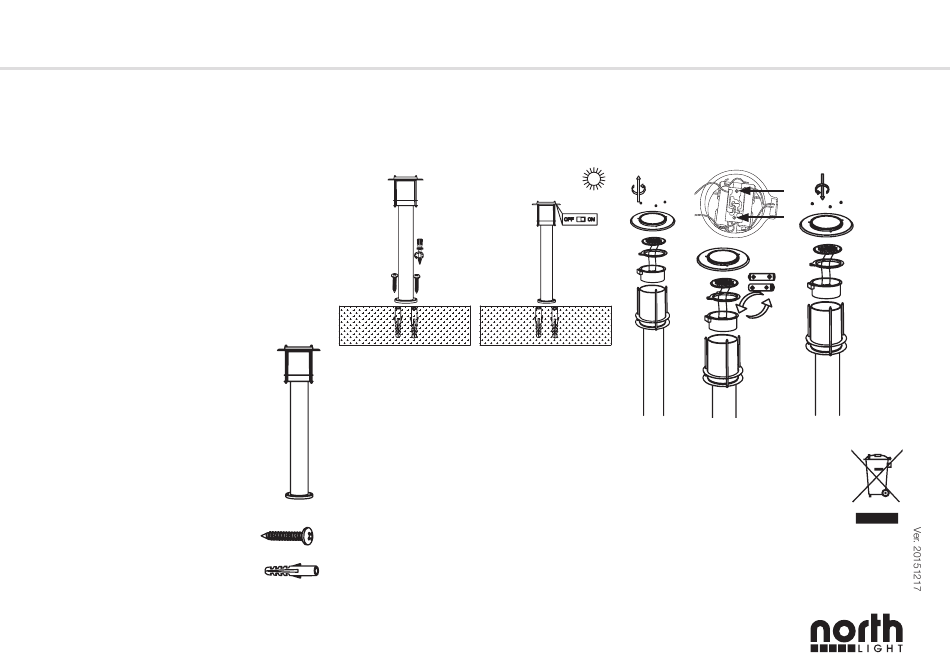

Changing the batteries
The rechargeable batteries will eventually need to be replaced.
The battery compartment is underneath the solar cell (see
figure below). Undo the screws indicated by the arrows
and lift the little circuit board to access the batteries. Only
rechargeable, 1.2 V/600 mAh NiMH batteries should be used.
Responsible disposal
This symbol indicates that this product should not
be disposed of with general household waste.
This applies throughout the entire EU. In order
to prevent any harm to the environment or
health hazards caused by incorrect waste
disposal, the product must be handed in for
recycling so that the material can be disposed
of in a responsible manner. When recycling your
product, take it to your local collection facility
or contact the place of purchase. They will
ensure that the product is disposed of in
an environmentally sound manner.
ENGLISH
