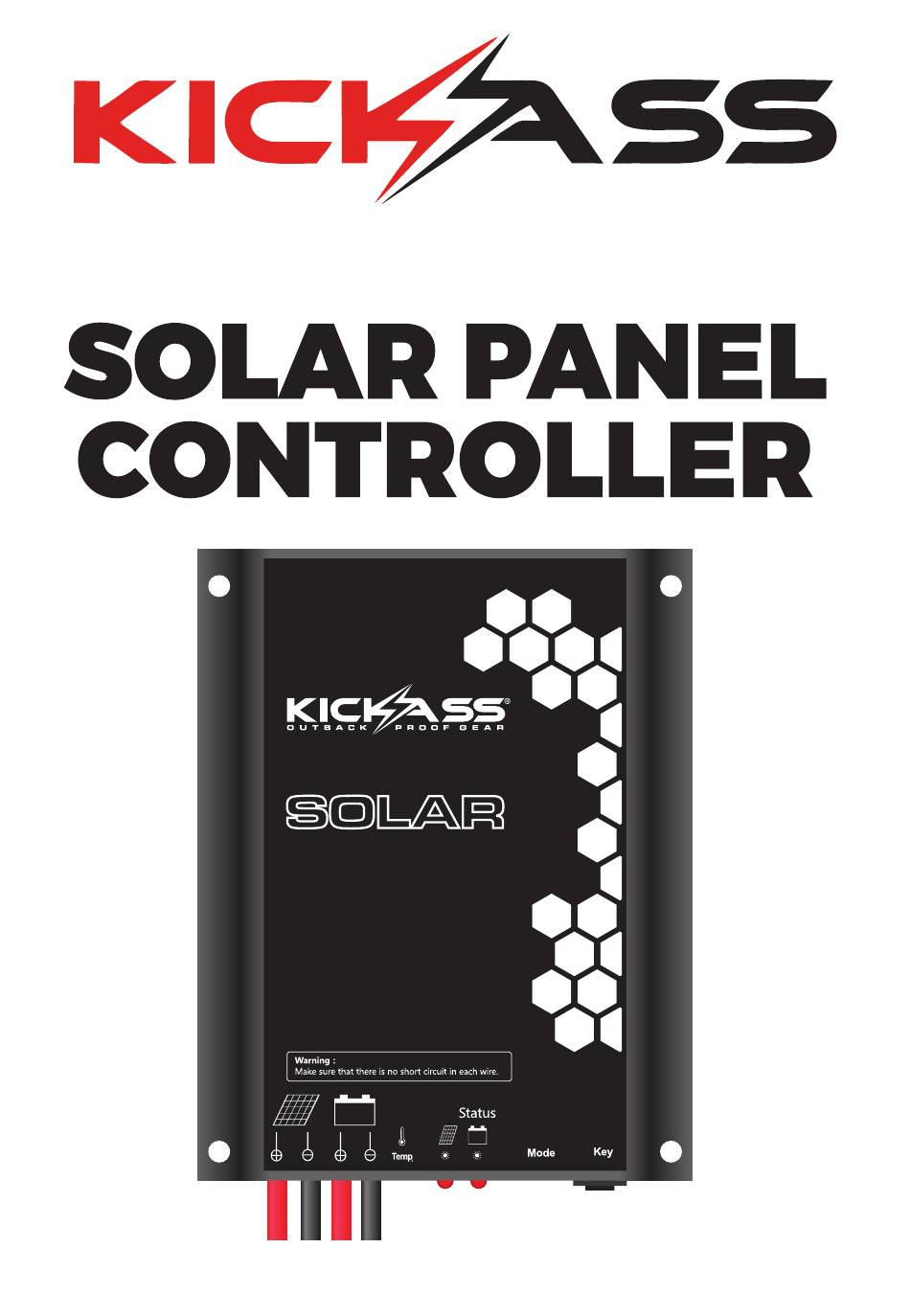

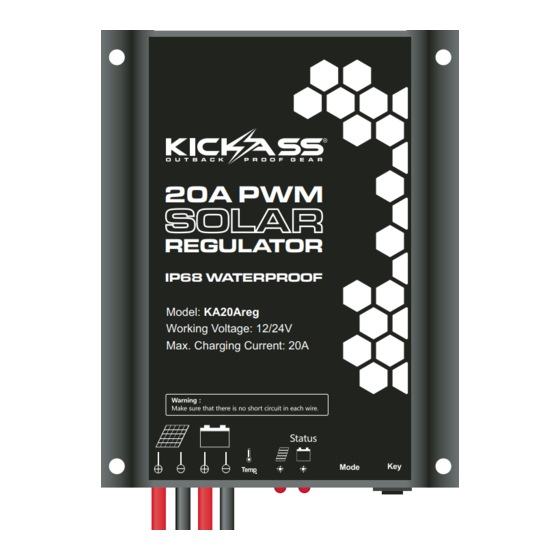

- Page 1 O U T B A C K P R O O F G E A R 12V / 24V (MANUAL) 20A PWM REGULATOR IP68 WATERPROOF Model: KA20Areg Working Voltage: 12/24V Max. Charging Current: 20A V2.5...
- Page 2 20A PWM battery and lights are illuminated on the Controller. REGULATOR IP68 WATERPROOF Model: KA20Areg NOTE: The regulator Working Voltage: 12/24V must be powered on Max. Charging Current: 20A first from the battery. Make sure to connect the regulator with battery first, then...
- Page 3 Step 1. Locate the controller which is affixed to the back of the solar panel. Step 2. Locate the small black 'Mode button' on the right hand side of the digital number display. Step 3. Press and hold down the button for 3 seconds or until the digital display beside the button begins to flash.
- Page 4 Solar Panel Specifications Specifications for your panel can be found on the specification sticker on the rear of your panel. Controller Specifications Lithium Ion Ternary-Material BATTERY TYPE Sealed Flooded Phosphate Lithium SYSTEM CURRENT 3 & 4 Strings: 12V System 4 Strings: 12V System SYSTEM VOLTAGE 12V/24V Auto 12V/24V Auto...
- Page 5 Troubleshooting LED Indication LED Indication Status Description Steady on Solar panel connected but not charging Steady off No connection or not enough light (night) Slow flashing Charging in process Solar Panel Quick flashing System over-voltage Steady On Normal battery function Steady Off...
