Summary of Contents for Shenzhen Rikomagic Tech DS03

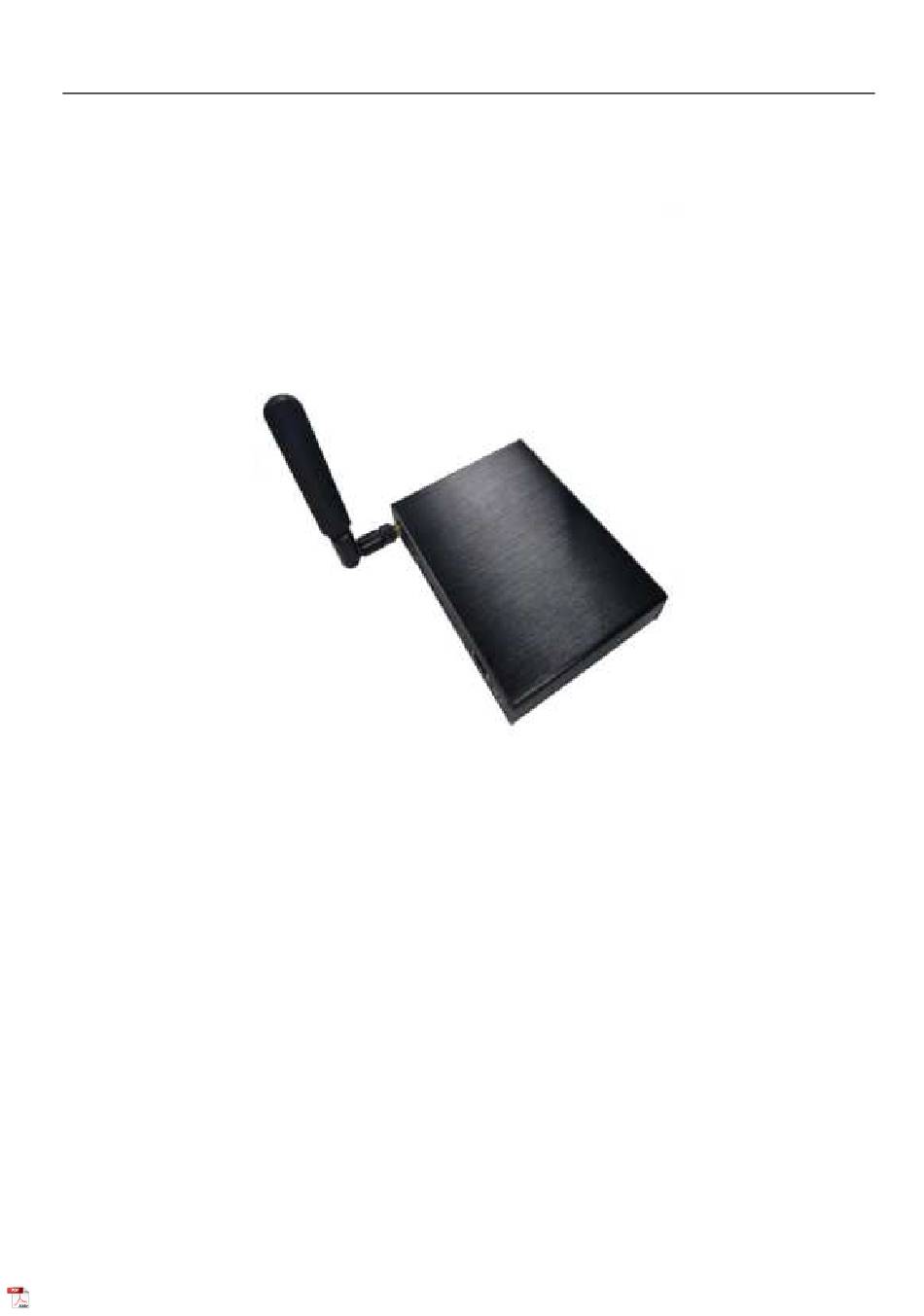

- Page 1 RKM DS03 User Manual DS03 User Manual Shenzhen Rikomagic Tech Corp.,Ltd Page0...
-
Page 2: Table Of Contents
RKM DS03 User Manual Table of Contents Declaration..............................2 1. DS03 hardware introduce........................3 1.1 Connectors of DS03..........................3 1.2 Device connection Instruction......................3 2. Remote control definition........................4 3. Boot state..............................4 4. Main Screen Introduction........................5 4.1 Function column..........................5 4.2 Status bar............................6 4.3 Application............................ -
Page 3: Declaration
RKM DS03 User Manual Declaration The user manual includes all the information of safe and correct operation instruction. To avoid accident and product damaged, please make sure go through all the content carefully before using the product. Please keep the product away from high temperature, humid and dusty environment. -
Page 4: Ds03 Hardware Introduce
Take out the device insert into your TV HDMI port through HDMI cable, make sure TV setting is HDMI input mode.(Refer to TV set user manual). b) Charge DS03 by power adapter. c) Suggest using 2.4G wireless keyboard or mouse. Plug 2.4G receiver on USB Host connector, if only mouse plugged, the device will provide soft keyboard during operation;... -
Page 5: Remote Control Definition
RKM DS03 User Manual 2. Remote control definition Power button: once press to sleep or awake; long press to power off or power on. Mute: during playing press this button to turn off or turn on audio output. Up/down/left/right button: during menu setting or file browse, press these arrow keys to select corresponding files;... -
Page 6: Boot State
RKM DS03 User Manual 3. Boot state After powered around 10 seconds, the boot image will appear first then access to boot animation. After around 30 seconds, device would access to main screen. If user want to take pure android launcher, then access SettingHomeselect Laucher3, press to go to desktop. -
Page 7: Status Bar
RKM DS03 User Manual Soft turn off button. Hide icon: click for hide this function bar. 4.2 Status bar Located on the right bottom, display T-Flash Card, USB connection, Time, WiFi and Download status. Click status bar, the hide menu will pop up: 4.3 Application... -
Page 8: Settings
Access to setting to pop up below screen. 5.1 WIFI Setting Once turn on WiFi, the DS03 will auto search available wireless router within 20 meters, user just choose a router and input correct password to connected network. 5.2 Ethernet Setting If there is no WIFI in the house, suggest to connect a USB LAN adapter (please select right matched USB LAN adapter) to setting Ethernet. -
Page 9: Portable Host Pot
For exchange data between the DS03 and PC. Operation steps： Equipment connection: Connect with computer through USB cable, please note you MUST plug into USB Slave port of the DS03, which is for computer connecting. 5.6 Sound This is for Sound settings;... -
Page 10: Storage
RKM DS03 User Manual 5.9 Storage In this option, user could view local storage space and external storage space, besides, user even can uninstall or format storage equipment. Notice: System divided the whole storage into seven partitions, only two partitions visible, the other five partition has been occupied by Android system. -
Page 11: Backup & Reset
RKM DS03 User Manual 5.13 Backup & reset Backup: Avoid lost some important APPs during reset or update/recovery system, t’s better chose this function for backup. Reset: Reset to factory settings.(Pls backup data first before reset) 5.14 Date & time Since there is no battery inside, date and time set by manual can′t be saved, Suggest setting to... -
Page 12: Install/Uninstall Apps
Long-press a file or folder to pop-up a menu, including: Copy, Delete, Move, Paste, Rename options, if no need execute operation, just click “cancel”. 7. Install/Uninstall Apps DS03 supports many commonly used third-party Apps. You can install or uninstall Apps freely; there are two methods available for installing Apps. 7.1 Online installation Please login Google Play store or other Android marketing to download Apps (User should have Gmail account if download from Google play store);... -
Page 13: Local Audio & Video Playback
RKM DS03 User Manual 10. Local audio & video playback Through the file manager, user can browse & playback those contents of TF card, USB flash or USB HDD. 11. Use virtual keyboard If just connect USB mouse only, then the virtual keyboard will pop up;... - Page 14 RKM DS03 User Manual Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
