Level mount FT42-03 Installation Instructions

Fixed/tilt plasma/lcd wall mount

Advertisement

Quick Links

Installation instructions
English

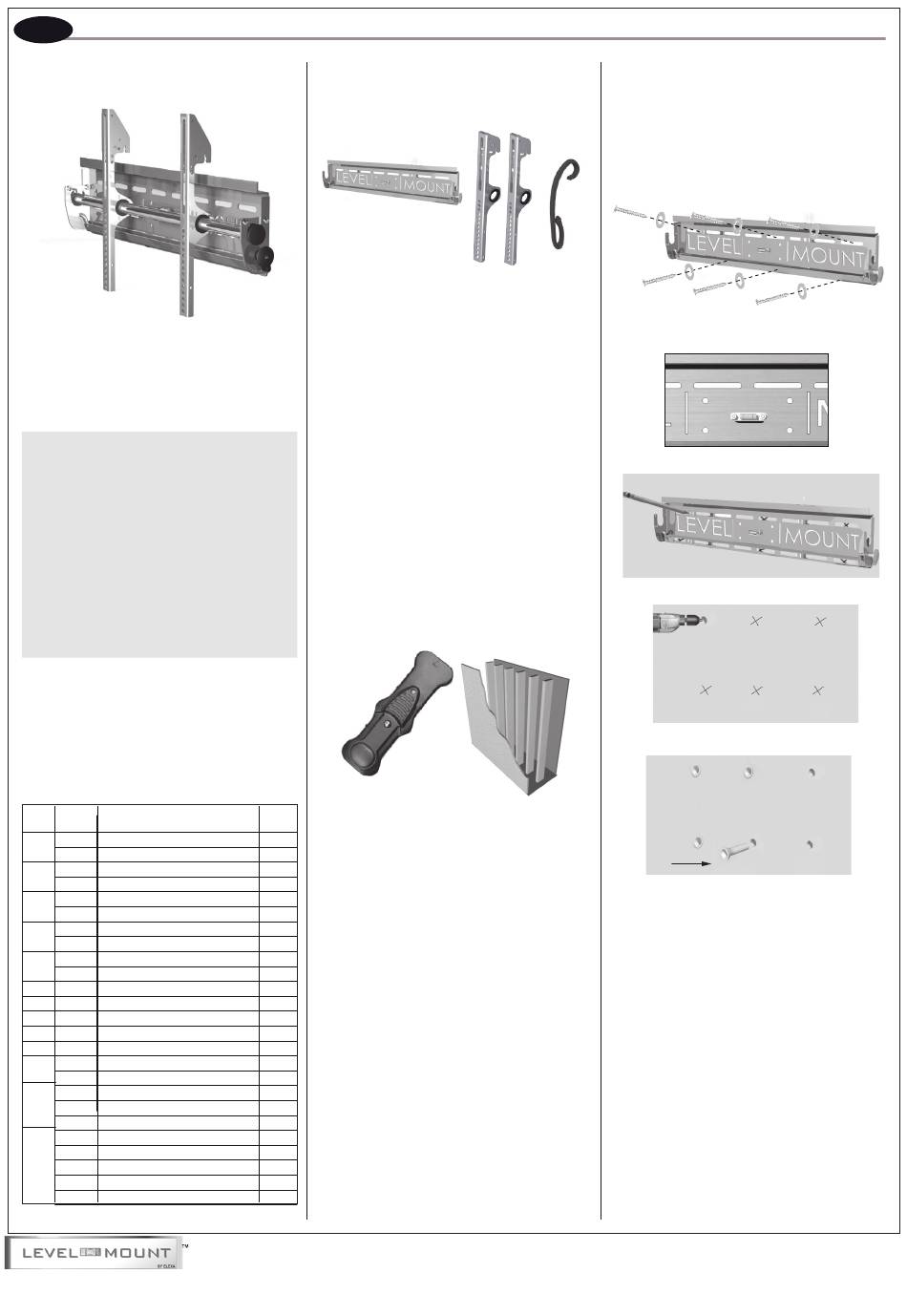

Fixed/Tilt Plasma/LCD Wall Mount
Model: FT42-03, FT42-CC, FT65-03,
FT65-CC, ELLCDM-07, ELLCDP-07
Thanks for purchasing an LevelMount product! The
LevelMount Plasma/LCD Wall Mount allows you to easily,
quickly and safely mount your plasma or LCD television to
the wall. Please read these instructions carefully to ensure
proper use.
CAUTION:
Installer must make sure the LCD Wall Mount is proper-
ly and securely attached and that appropriate fasteners
are used. It is the responsibility of the installer to verify
that the mount is anchored properly to the wall.
PLEASE NOTE: THE MOUNT MUST BE ATTACHED
TO WOOD STUDS OR TO PROPERLY INSTALLED
LEAD ANCHORS IN MASONRY OR CONCRETE. DO
NOT MOUNT ONLY TO DRY WALL.
Before installing, check to make sure all parts of the
mount are included.
Make sure all screws and bolts are tightened before
allowing Wall Mount to bear the full weight of the
LCD Display.
Features:
• Integrated Bubble Level
• Durable Steel Construction
• Easy 2 Piece Mounting
• Tilts up to 30 degrees
• Locking Lever
• Stud Finder Included
Mounting Equipment Included:
Bag
REF
Description
1
A
Phillips M4 x 12 Bolt
B
Phillips M4 x 30 Bolt
2
C
Phillips M5 x 12 Bolt
D
Phillips M5 x 30 Bolt
3
E
Phillips M6 x 12 Bolt
F
Phillips M6 x 35 Bolt
4
G
Phillips M8 x 16 Bolt
H
Phillips M8 x 40 Bolt
5
I
M4/M5 Washer
J
M4/M5 Spacer
5
K
M6/M8 Spacer
1
L
M4 Lock Washer
2
M
M5 Lock Washer
3
N
M6 Lock Washer
4
O
M8 Lock Washer
P
3'' Hex Screw
6
Q
Hex Washer
R
Concrete Anchor
S
M5 x 48 Bolt
7
T
M5 Hex Nut
U
M5 Washer
V
L-Shape Bar Lock
8
W
Phillips screws M5 x 10 Bolt
X
M5 Hex Nut
Y
M5 Butterfly Nut
Tools required for attachment to stud:
1/2'' (12mm) Socket Wrench
Stud finder
Tools required for attaching to concrete:
Electric drill
1/2'' (12mm) Masonry Bit
Wall Plate
Horizontal Adjustment Bar

Attaching Wall Plate to Wooden Studs:

1a. Locate wall studs: Locate a proper place to mount by
using the included stud finder (Figure 1) It is recom-
mended that the center of the stud be used – and that
a nail be used to verify that a stud has been located.
The mount requires a minimum of two studs to ensure
proper and safe installation. The tilt arms will adjust
horizontally to the right and left up to 8 inches after
you determine the desired viewing location.
Attaching LevelMount to wall: Once the Wall Plate is
in the correct position on the studs, screw 1 Hex Screw
and 1 Hex Washer (P & Q) in the upper left mounting
hole of the Wall Plate into the stud. Do not screw too
tight until after all the screws are in. Drill pilot hole with
1/4 inch drill bit.
Using the Bubble Level as your guide (Figure 3, page
2), drive the 2nd screw into the opposite upper right
hand mounting hole of the Wall Plate. Now tighten
both screws, proceed to drive the remaining 4 screws
into the studs as seen in figure 2, page 2.
QTY
Figure 1
4
4
NOTE: Due to the weight of the LCD/Plasma TV's, it is
4
necessary to mount the Wall Plate to at least 2 studs.
4
4
4

Attaching Wall Plate to Concrete:

4
1b. Attaching Wall Mount to concrete block or brick
4
wall: Place the Wall Plate at the height you want to
4
install the Plasma/LCD wall Mount. Mark the six holes
4
you will be using for concrete anchors (Figure 4). Utilize
4
the built-in bubble level to ensure proper mounting
4
(Figure 3). Drill holes for the concrete anchors using an
4
electric drill with a masonry bit (1/2'' or 12mm (Figure
4
5)). Drill into the wall at least as deep as the screw is
Drill into the wall at least as deep as the screw is
4
long (3 inches).
6
6
Insert the anchors into the holes and set them flush to
6
the wall by tapping them in with a hammer (Figure 6).
8
Once the Wall Plate is in the correct position on the
8
wall, screw 1 Dry Wall Screw and 1 Dry Wall Washer
8
(P & Q) in the upper left mounting hole of the
2
Wall Plate. Do not screw too tight until all the screws
4
are in.
2
2
Drive the 2nd screw into the opposite upper right hand
mounting hole of the Wall Plate, then proceed to drive
the remaining 4 screws into the concrete anchors as
seen in figure 2. Make sure all screws are tightened.
Tilt
Cord
Arms
Management
Drill pilot hole with
2. Selecting the Appropriate Hardware for your LCD/
Plasma: CAUTION: Select Bag 1-4, which most resem-
bles the hole side on the back of your LCD/Plasma.
Thread the bolts carefully into your LCD or plasma by
hand to determine which provided mount hardware
(correct diameter) is appropriate for installation. If you
feel resistance, remove the bolt immediately! Next
determine the correct length of the required bolt as
described in the following step.
**PLEASE NOTE: You will not use all of the hardware
included. Please see last page of the manual if your
Plasma or LCD needs extension arms.
Attaching Monitor Bracket to a LCD/Plasma with:
Figure 2
Q
P
Figure 3
Figure 4
Figure 5
Figure 6
R
www.LevelMount.com
1-888-229-1459
©2006 LevelMount
Patents Pending
