- Page 1 Risen Beauty Technology Co.,ltd Add:Room619, Building 1, NO.10 Zhuoxiu North Street, Fangshan District, Beijing,102401, China User’s Manual Q-Switched Nd : YAG 1064/532nm Laser Treatment System QSW500 1 of 26...
-
Page 2: Table Of Contents
Risen Beauty Technology Co.,ltd Add:Room619, Building 1, NO.10 Zhuoxiu North Street, Fangshan District, Beijing,102401, China User’s Manual Contents Using this User’s Manual..........................4 Chapter 1 Preface............................5 1.1 Overview............................5 1.2 Device Brief Introduction......................5 1.3 Device Structure.......................... 5 1.4 Medical Use-Application Areas....................7 Chapter 2 Safety............................7... - Page 3 Risen Beauty Technology Co.,ltd Add:Room619, Building 1, NO.10 Zhuoxiu North Street, Fangshan District, Beijing,102401, China User’s Manual 6.4 Purify Soak Lip and Lips Line....................25 6.5 Purify Tattoo and Wound Tattoo....................25 6.6 Purify Old-age Spot and Nevus....................25 6.7 Purify Birthmark and Nevus of OTA..................25 6.8 Purify Coffee-spots, Freckles and Yellow Brown Spot.............26...
-
Page 4: Using This User's Manual
Risen Beauty Technology Co.,ltd Add:Room619, Building 1, NO.10 Zhuoxiu North Street, Fangshan District, Beijing,102401, China User’s Manual Using this User’s Manual This User’s Manual is divided into the following sections: Section Contents Preface Brief technical overview and Medical use Safety... -
Page 5: Chapter 1 Preface

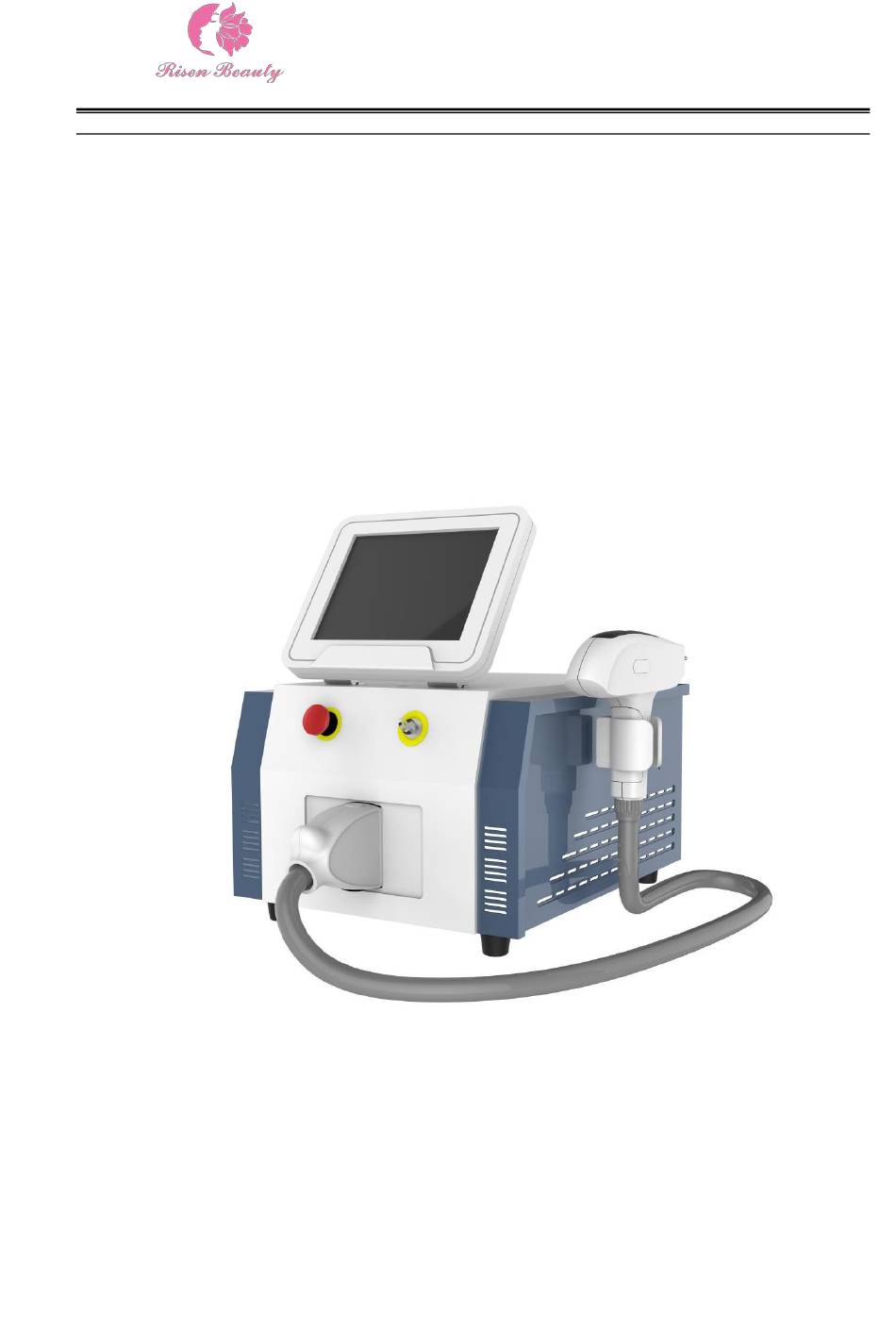

Product name: Q-Switched Nd: YAG Laser System Figure 1.1 shows the device. Figure1.1 QSW500 Q-Switched Nd: YAG Laser System 1.3 Device Structure This device is composed of three parts: (1) main unit, (2) control panel, and (3) the Nd: YAG Laser treatment hand piece The control panel includes the color 8”... - Page 6 User’s Manual Laser Handpiece, Control Panel and Cooling System. The power supply is assembled in the main unit. Laser Handpiece: Laser handpiece treatment with 1064nm and 1x KTP for 532nm The Control Panel is composed of (1) LCD screen, (2) Pedal control switch, (3) the power on/off key switch and (4) emergency button switch.
-
Page 7: Medical Use-Application Areas
User’s Manual color in blue or black pigmentation of the skin; the 532nm is for treatment of the color in red and brown pigmentation of the skin. The front-end of laser handpiece for the 1064 nm wavelength is the round one, while for the 532nm wavelength is the square one. -
Page 8: Responsibilities Of The User
User’s Manual 2.2 Responsibilities of the User WARNING This device may cause thermal injury if used improperly. Medical personnel must familiarize themselves with the devices safety instructions and operational procedures prior to use. Before each treatment, the user must check the functional performance of the device in order to avoid any risk of harm to patients or other persons. -
Page 9: Explanation To Patients
User’s Manual The attending operators must inform the patient all the risks with the use of this device. The success of the treatment depends largely on the user’s experience and knowledge of the biophysical connections. 2.4 Explanation to Patients The treatment process must be explained to the patient. The patient must give written-consent to the treatment. -
Page 10: Electrical And Machine Safety
User’s Manual required. The entrance of laser treatment room should be labeled with warning signal of laser radiation, to prevent the entry in and exit out of the treatment room during treatment time. Suggestion: Provide special-purpose laser operation room with air-conditioning, dehumidifier and so on. -
Page 11: Safe Marking
User’s Manual 2.10 Safe Marking The laser treatment machine uses the marking as follows. The marking sticks to the upper part of the machine box and the laser hull，Please keep in mind. Warning Any inappropriate usage of laser electropult will cause injury to the human body. The operator should keep alert every moment, and adopt the protection measures necessary. -
Page 12: Equipment Detailed List
User’s Manual long distant transportation. Assembly of its components and ensure that all connections are firmly in place. Fill the water tank with distilled water only. Installation treatment handpiece and connect the power supply Switch on the device and test all functions / parameters of the system 3.1 Equipment Detailed List The following is the detailed list of equipment of this device::... - Page 13 User’s Manual Relative humidity should not be over 80%. The working power of this device is about 2 KW. It would be best that the Laser unit be installed in an air-conditioned room where the relative humidity and temperature can be maintained at optimal levels. 3.3 Installation 1.The device should be placed in a room with an indoor temperature of 15~30 C;...
- Page 14 User’s Manual 8.Observe whether water circulation runs well or not. After cooling system runs for at least 5minute, the water has slided into the cooling system and then turn the device off. If the system sounds beep and show "water current error", then you need to move out the bubble air from the system.
-
Page 15: Move
User’s Manual 15) Replace the treatment head or replace water 1. When replacing the treatment head, drain the remaining water in the previous handle. Pay particular attention as not to spill any water on the electronic terminals. Wipe off any spilled water with a soft absorbent cloth. - Page 16 User’s Manual 3. There are waterproof and soft gasket material in the outer packing box of the instrument and handle with care which the instrument should be supported by natural damage. The markings such as “Handle with care”, “No wetness”, “up” should be on the box. 3.5.2 Environment 1.
-
Page 17: Chapter 4 Operation
User’s Manual Chapter 4 Operation This chapter will describe the operating procedure of the Laser Treatment System. WARNING WARNING: HIGH VOLTAGE: please ensure that all panels are secured prior to operation. Place the Laser treatment head on its support when on standby mode. All personnel in the treatment room must wear the protective filtered glasses supplied. - Page 18 User’s Manual 2. Treatment interface Laser Energy 1-2000mJ Working frequency 1-10 Hz Total shooting numbers Current shooting numbers Start to work Return to the first interface Reset the current number Standby figure 5.2 18 of26...
- Page 19 User’s Manual . Back ground setting Note : It is only used when the screen is not working well , need to calbriate the screen , when there is no problem , plesae don’t touch here and do the following procedures .
-
Page 20: Treatment Mode
User’s Manual 4.2 Treatment Mode Change the tips of 1064nm and 532nm of the hand piece to do the different treatment. For example, the 1064nm is mainly used for treating the black and blue pigmentation, while the 532nm is mainly used for treating the red and brown pigmentation. 4.3Temperature Display and Protection The system has the temperature display function, which can monitor the temperature of the circulating water. -
Page 21: Chapter 5 Maintenance And Support
User’s Manual Chapter 5 Maintenance and Support This section describes daily maintenance work of the Laser treatment system. It includes cleaning the equipments and leads the laser treatment head, replacing the laser treatment head and increasing distilled water etc. It also describes some familiar malfunctionings and solution. - Page 22 User’s Manual Try to increase the work voltage to check whether the laser is emits or not. While pressing pedal Check whether the system enters preparation mode or not. controller , the system has no laser Check whether the feet step switch is normal or not, if it is exportation damaged, replace it immediately.
-
Page 23: Chapter 6 Other Contents
User’s Manual Chapter 6 Other Contents 6.1 Operation Skill of Cosmetology Attention Please find out whether the customer has scar constitution, peeling skin or allergic skin first. Ask customers if they have artificial eyebrow, or purified of embroider, eyebrow and tattooed with other methods before. Observe if the scar had existed already. Explain to the patient that the pigmentation trace will remain for a period. -
Page 24: Purify Of Embroider Eyebrow
User’s Manual antibiotic medicine. 72 hours after surgical external use erythromycin ointment, also wipe the repair fluid or the eyebrow fluid to the trouble place and help to deal. In a week avoid massive diets pungent foods the patient color stabbed deeply also cannot drink wine. - Page 25 User’s Manual Suggestive number of treatment need: 1-3 times 6.4 Purify Soak Lip and Lips Line While purify the red lips line and red lips, choose corners of the mouth first for experiment. If the test spot change immediately to black after the laser strike, cannot purify again.
- Page 26 User’s Manual 6.8 Purify Coffee-spots, Freckles and Yellow Brown Spot Set a light frequency at 3Hz or 5Hz, the treatment head is apart from the skin 0-4 cm. Choose the small light spot and high energy. Continuously strike the trouble place with the 1064nm wavelength about 15 minutes. The treatment time avoids June, July, August and September every year.
