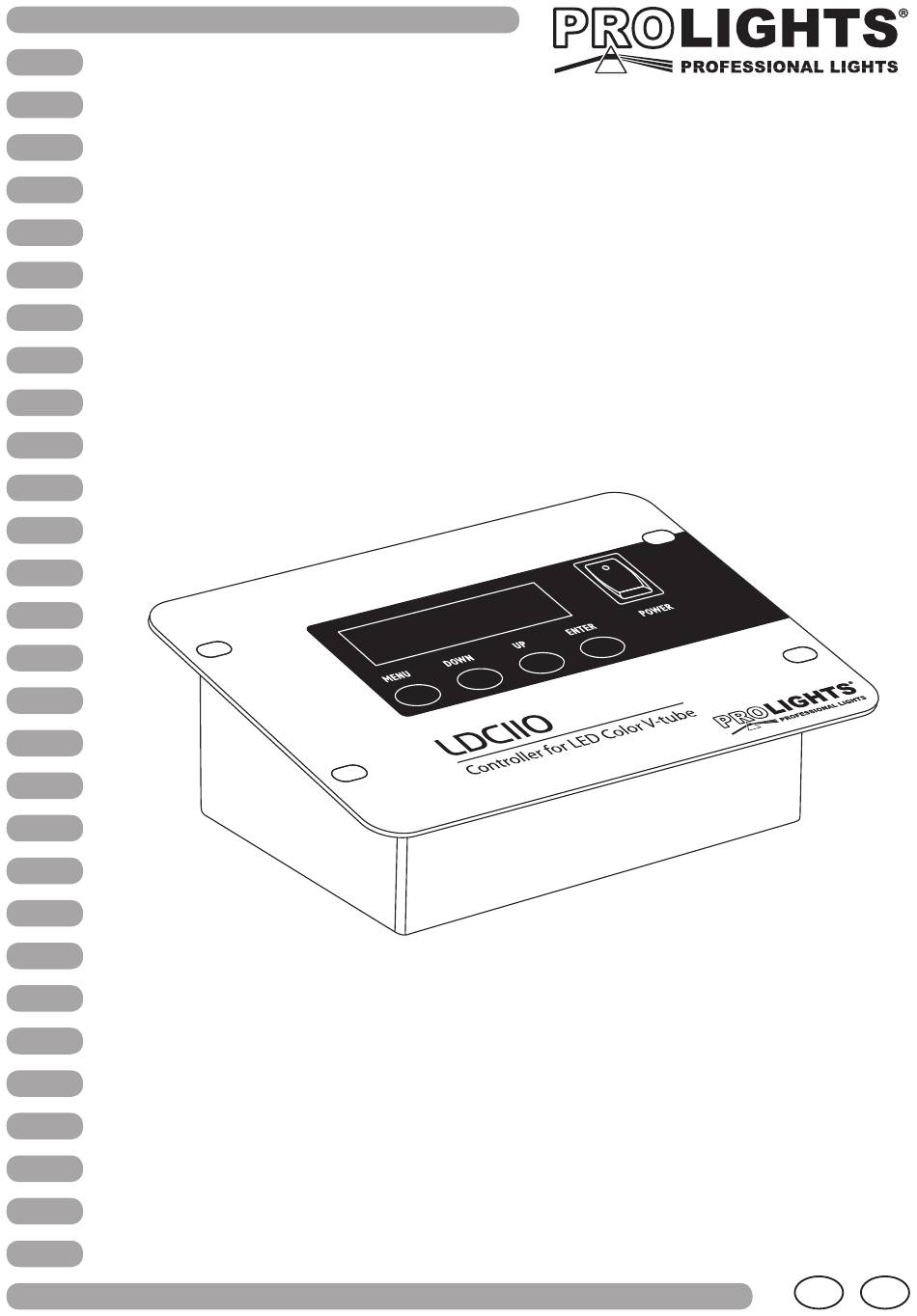

LDC110 Introduzione Vi ringraziamo per aver scelto un prodotto PROLIGHTS. LDC110 è un controllo DMX per sistemi a LED serie LDID110. Indice SICUREZZA Avvertenze generali Attenzione e precauzione per l’installazione Informazioni generali DESCRIZIONE E SPECIFICHE TECNICHE Elementi di comando e collegamenti...
LDC110 » SICUREZZA ATTENZIONE! Prima di effettuare qualsiasi operazione con l'unità, leggere con attenzione questo manuale e conservarlo accuratamente per riferimenti futuri. Contiene informazioni importanti riguardo l'installazione, l'uso e la manutenzione dell'unità. AVVERTENZE GENERALI • I prodotti a cui questo manuale si riferisce sono conformi alle Direttive della Comunità Europea e pertanto recano la sigla • È...
LDC110 » DESCRIZIONE E SPECIFICHE TECNICHE Elementi di comando e collegamenti Fig.1 Fig.2 1. Tasto MENU per richiamare le voci che compongono il menù; 2. Tasti DOWN e UP consentono di scorrere le varie voci che compongono il menù e di modificare i parametri di configurazione;...
Page 6
» DESCRIZIONE E SPECIFICHE TECNICHE Descrizione LDC110 e previsto per un controllo confortevole dell’unita per effetti di luce LDID110. E in grado di controllare singoli LDID110, ma anche più unita assemblati, ed inoltre permette l’integrazione di queste unita in un impianto di luce con comando DMX.
Controllo DMX512 Per un comando più comodo e per integrare gli apparecchi in un impianto di luce con comando DMX, è possibile collegare il controllo LDC110, disponibile separatamente, con l’ingresso dei segnali di controllo dell’apparecchio. Il cavo DMX deve essere chiuso con un dispositivo di terminazione sul chiuso. Saldate una resistenza da 120Ω...
Page 8
LDC110 » FUNZIONI E IMPOSTAZIONI Impostazioni base Attraverso il menù si possono eseguire le seguenti impostazioni base. Premere il tasto MENU (1) tante volte finché il display (4) indica la funzione desiderata. Quindi premere il tasto ENTER (3). Non far passare più di 8 secondi fra due pressioni dei tasti, per evitare di terminare la procedura d’impostazione.
Page 9
LDC110 » FUNZIONI E IMPOSTAZIONI Tabella canali DMX Channel Function DMX value Mode 000-063 Auto mode 064-127 Sound mode 128-191 dB mode 192-255 Hold mode Pattern **** Auto mode* Sound mode** dB mode*** Hold mode**** 000-035 000-035 000-035 000-035 1. Auto fade 1.
Page 10
LDC110 » CONNESSIONI Connessioni L’illustrazione seguente mostra gli schemi di connessione tra prese e spine XLR a 3 e a 5 poli: Spina XLR a 3 pin Presa XLR a 3 pin Pin1 : Massa - Schermo Pin1 : Massa - Schermo...
LDC110 Introduction Thank you for purchasing a PROLIGHTS product. The LDC110 is a LED systems DMX remote control for LDID110 series. Index SAFETY General instructions Warnings and installation precautions General information DESCRIPTION AND TECHNICAL SPECIFICATIONS Operating elements and connections Description...
LDC110 » SAFETY WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. GENERAL INSTRUCTIONS • The products referred to in this manual conform to the European Community Directives and are therefore marked...
LDC110 » DESCRIPTION AND TECHNICAL SPECIFICATIONS Operating Elements and Connections Fig.1 Fig.2 1. MENU button to call the adjusting menu and to select the menu items; 2. UP and DOWN button to change an adjustment in the menu; 3. ENTER button to activate a menu item and to memorize an adjustment;...
Page 16
» DESCRIPTION AND TECHNICAL SPECIFICATIONS Description The LDC110 is designed for convenient control of the light effect unit LDID110. It can be used to control an individual LDID110 or several units connected in a chain and will also allow integration of these light effect units into a DMX-controlled lighting system.
For a more convenient control and for integrating the units into a DMX controlled lighting system, connect the controller LDC110 (to be ordered separately) to the control signal input of the master unit. The DMX-cable has to be terminated with a terminator on ended fixture. Solder a 120Ω resistor between Signal (-) and Signal (+) into a 3-pin plug and plug it in the DMX-output of the last fixture.
Page 18
LDC110 » FUNCTIONS AND SETTINGS Basic adjustments Via a menu the following basic adjustmentscan be made. Press the button MENU (1) so many times until the desired function is shown in the display (4). Then press the button ENTER (3). Never wait for more than 8 seconds to press the next button, otherwise the adjusting procedure will be stopped.
LDC110 » FUNCTIONS AND SETTINGS DMX control Channel Function DMX value Mode 000-063 Auto mode 064-127 Sound mode 128-191 dB mode 192-255 Hold mode Pattern **** Auto mode* Sound mode** dB mode*** Hold mode**** 000-035 000-035 000-035 000-035 1. Auto fade 1.
Page 20
LDC110 » CONNECTIONS Connections The following diagrams show the connection between 3-poles and 5-poles XLR control wire sockets and plugs. Core XLR 3 pin plug Core XLR 3 pin socket Pin 1: GND(SCREEN) Pin 1: GND(SCREEN) Pin 2: Signal(-) Pin 2: Signal(-)
