Summary of Contents for Excel AG Series

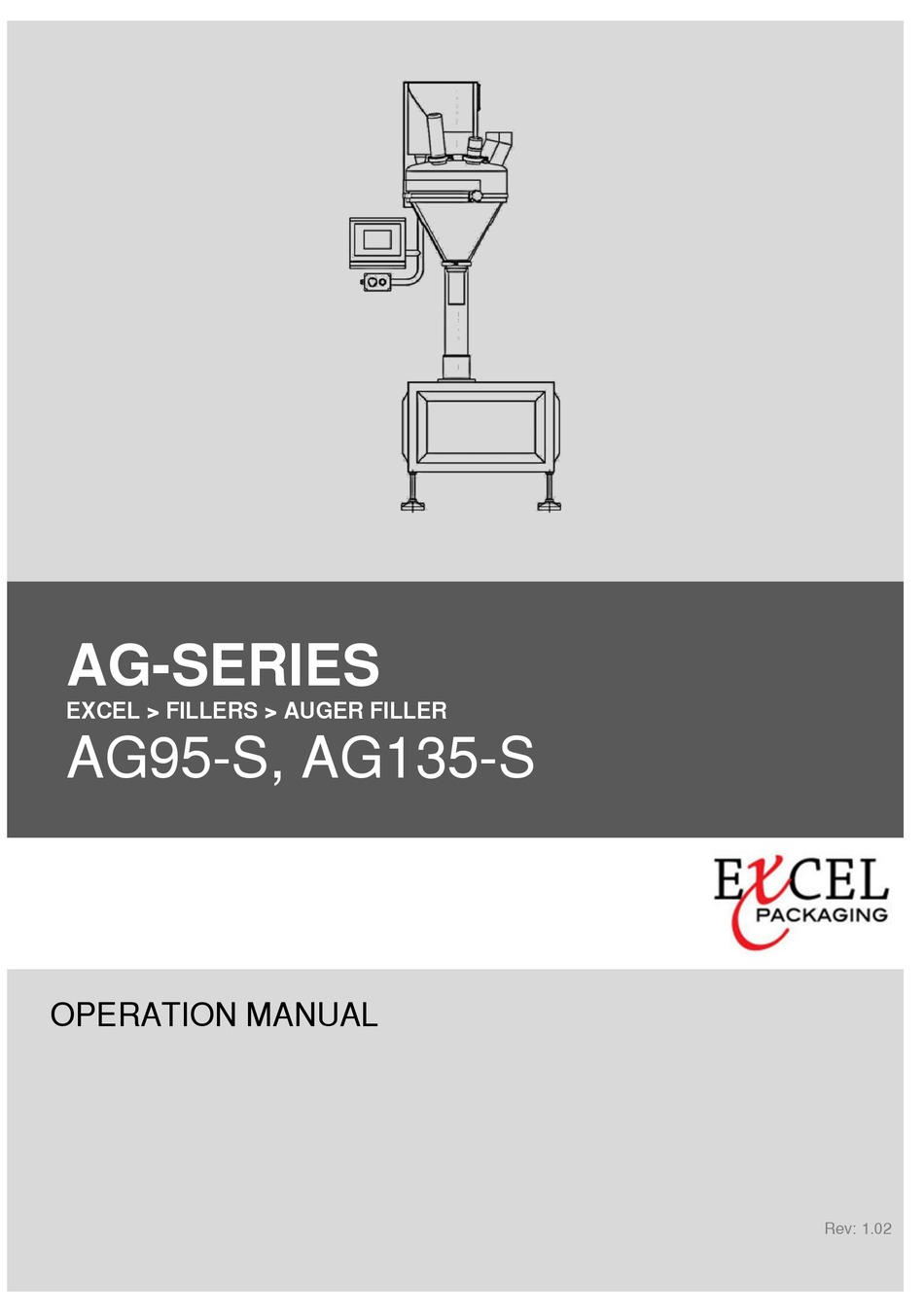

  • Page 1           ...
  • Page 2 Introduction Thank you for your purchase of AG SERIES AUGER FILLER. This Operation Manual is intended to help you operate the machine correctly, perform routine maintenance and take a simple troubleshooting action as necessary, so you can always use the machine in good condition.
  • Page 3: Table Of Contents

    Table of Contents Important Safeguards ...................... 8 Overview ........................... 9 Installation ........................11 3.1. Environment ............................11 3.2. Power..............................11 3.3. Connecting Compressed Air (If Applicable) ..................11 General Operation ......................12 4.1. General ..............................12 4.2. Operation Principles..........................12 4.3.
  • Page 4: Important Safeguards

    1. Important Safeguards For your protection, please read these safety instructions completely before operating the machine and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the machine, or the one described in the operating manual and adhere to them.
  • Page 5: Overview

    2. Overview Ref Description Product In-feed Hopper Auger tube Machine base and storage cabinet Emergency stop button Run / Stop button Touch screen HMI Gas extractor Level sensor AG-Series...
  • Page 6 Notes: AG-Series...
  • Page 7: Installation

    3. Installation 3.1. Environment - Place the machine on a flat, level floor. This is essential for problem-free operation of the machine. Movable packaging machines must be secured against unintentional rolling away. - Enough space must be left around the machine for good ventilation. The space must be at least 1” (25mm). - For products which are sensitive to temperature and humidity, e.g.
  • Page 8: General Operation

    4. General Operation 4.1. General - Refer to this manual if in doubt as to the operation and/or functioning of the machine. If the manual does not offer a solution consult the supplier or manufacturer. - The guarantee and/or liability expires if damage is caused by repairs and/or changes made by you. In the case of malfunctions contact the supplier or manufacturer.
  • Page 9: Getting Started

    4.4. Getting Started The machine is equipped with a touch-screen human machine interface. It is our goal to provide a user friendly interface, let us know your operation experience after you have familiar yourself with the machine. The following is the start-up screen. Press “ENTER”...
  • Page 10: Home Page

    4.4.1. Home Page Recipe number Displays the Recipe selected. Recipe button Enters the Recipe page. Filling target Displays the Filling target for the according Recipe. Filling pulse Displays the Filling pulse for the according Recipe. Pre-requisite: Increment / decrement value set in Recipe. +/- pulse Increase or decrease the filling pulse in order to increase or decrease filling weight.
  • Page 11: Recipe Page (1 Of 3)

    4.4.2. Recipe Page (1 of 3) Main button Return to Home page Displays the Recipe selected. Recipe number Press ‘>’ to change. Save button Press to save setting into the PLC’s memory. Displays the Filling target for the according Recipe. Press ‘>’...
  • Page 12: Recipe Page (2 Of 3)

    4.4.3. Recipe Page (2 of 3) Main button Return to Home page Displays the Recipe selected. Recipe number Press ‘>’ to change. Save button Press to save setting into the PLC’s memory. Displays the Filling target for the according Recipe. Press ‘>’...
  • Page 13: Recipe Page (3 Of 3)

    4.4.4. Recipe Page (3 of 3) Main button Return to Home page Displays the Recipe selected. Recipe number Press ‘>’ to change. Save button Press to save setting into the PLC’s memory. Displays the Start delay of the screw conveyor when it is available and activated for Re-fill start delay the according Recipe.
  • Page 14: Setting Page

    4.4.5. Setting Page Main button Return to Home page Displays the current agitator status. Agitator status Press ‘>’ to change. Pre-requisite: Screw conveyor must be connected. Screw conveyor Displays the current screw conveyor status. status Press ‘>’ to change. Pre-requisite: Collection funnel must be connected. Collection funnel Displays the current collection funnel status.
  • Page 15: Maintenance And Care

    5. Maintenance and Care Regular maintenance of the machine increases the lifetime and reliability. It is essential that the machine is serviced regularly to guarantee operation and to keep the machine in optimal condition. The guarantee automatically expires due to overdue or sloppy maintenance. Always disconnect the main power supply when maintenance is performed on the machine.
  • Page 16 Notes:...

This manual is also suitable for:

Ag95-sAg135-s
