USER MANUAL

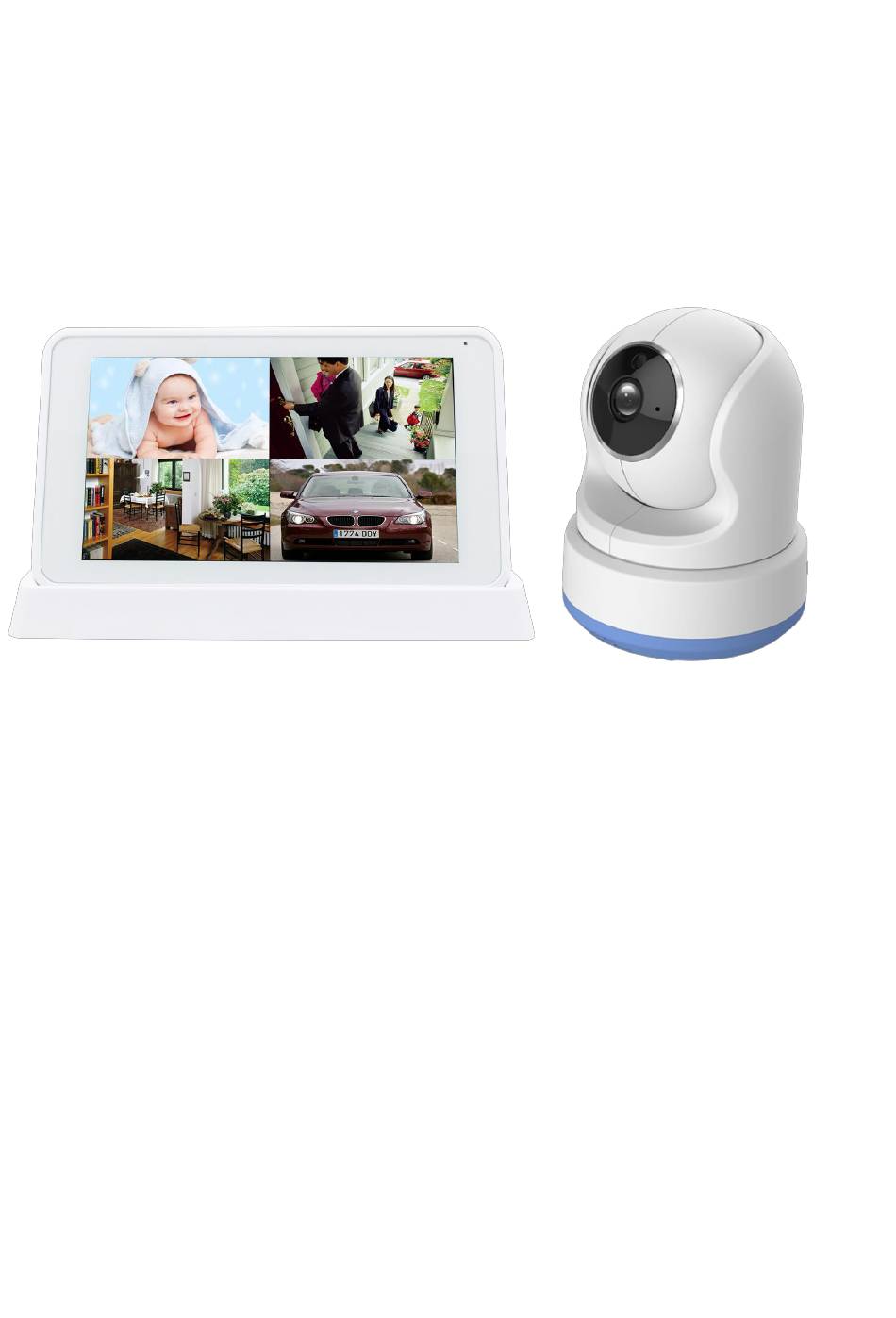

5.5'' Large Touchscreen Monitor with 1080p Pan & Tilt Camera
Model No. : CM544554
WARNING
STRANGULATION HAZARD - Keep cord out of child's reach. NEVER place camera or cords within 3 feet of
crib or playpen. Never use extension cords with AC adapters. Only use the AC adapters provided.
• Some adult assembly or installation required.
This product contains small parts that may cause choking. Keep small parts away from children.
•
• This product is NOT intended to replace proper supervision of children. You MUST check your child's
activity regularly, as this product will not alert parents to silent activities of a child.
• Before using this product, read and follow all instructions and warnings contained in this booklet.
• NEVER use the transmitter or monitor near water, including near a bathtub, sink, laundry tub, wet
basement, etc.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM544554 and is the answer not in the manual?

Questions and answers

Related Manuals for RDI Technology CM544554

Summary of Contents for RDI Technology CM544554

  • Page 1 USER MANUAL 5.5’’ Large Touchscreen Monitor with 1080p Pan & Tilt Camera Model No. : CM544554 WARNING STRANGULATION HAZARD - Keep cord out of child's reach. NEVER place camera or cords within 3 feet of crib or playpen. Never use extension cords with AC adapters. Only use the AC adapters provided.
  • Page 2 • This product is intended for indoor use only. • The transmitter detects normal sound levels within a range of 2 to 3 meters (6 to 10 feet) from a child. If the child moves outside of this range, if may not be able to detect sounds from him or her. •...
  • Page 3 What's Included Product Overview Wireless Camera 1. IR Sensor & LEDs: Infrared LEDs provide viewing in NO/LOW Light conditions. 2. Microphone: Detects & transmits the sound from camera to monitor. 3. Temperature Sensor: The measured ambient temperature is displayed on the monitor. 4.

  • Page 4: Getting Started

    Wireless Monitor 1. Antenna: Sends & receives signals to or from the Camera. 2. Sound Bar: Indicates the level of sound detected by the Camera. 3. DC 5V Power Input: Input for the Power Adapter 5V 2A. 4. Screen: 5.5” capacitive touch screen. 5.
  • Page 5 3. To power on the monitor, press and hold the power button for 4~5 seconds. 4. To power on the camera, slide the on/off button to the ON position. Pairing the Monitor & Camera The units already come paired for your convenience. If you have additional camera, pair your camera as follow: Power on wireless monitor and wireless camera.
  • Page 6 1. Signal indicator: If an ' ' appears on the signal bar, the system is "Out of Range". 2. Camera number: 3. Motion Recording enabled Indicator: , This icon indicates monitor is set to auto recording mode. 4. Network Connection Status: Monitor must be connected to the optional internet cradle(sold separately) for remote viewing.
  • Page 7 18. SEQ: In quad or split mode, tapping this button will change channels in sequence and "SEQ" will appear. 19. Talk Back: Only appears in single camera Live View mode and when talk button is pressed&held. If a lullaby is playing, lullaby will be paused until the button is released. 20.
  • Page 8 Menu Page 1. Pair / Unpair Camera： You can connect up to four cameras to your system. 2. VOX: Set the VOX sensitivity to detect low or high sound levels. 3. Date & Time & Timer: Set system date&time, time zone and feed timer. 4.

  • Page 9: Specification

    9. Back: Save the settings and return to the previous page. 10. Home: Return to Live View. Specification Operating Frequency Range 2.4GHz TX Power 17dBm (FHSS), 15+/-1dBm(Wi-Fi) RX Sensitivity -88dBm (FHSS), -89dBm(Wi-Fi) Type of Spread Spectrum Used Wi-Fi Type of Modulation Used 802.11b/g Antenna 2.4G 2.0dBi external antenna...

  • Page 10: Fcc Statement

    FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
