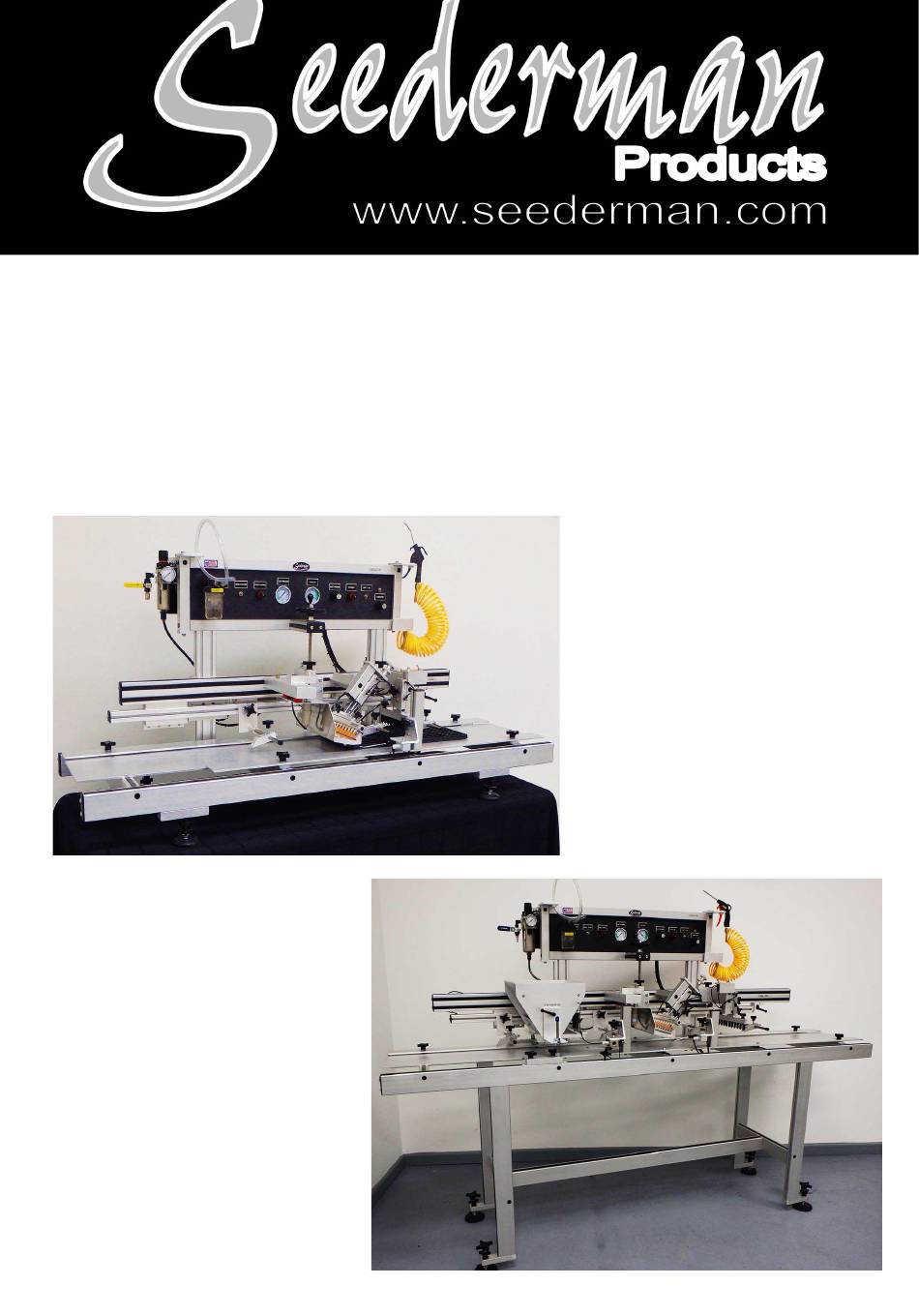

- Page 1 GS2/GS3 Automatic Needle Seeder Owners Manual and Operating Guide...
-
Page 2: Table Of Contents
GS2/GS3 Owners Manual and Operating Guide Table of Contents Introduction – 3 Space, environment, and air requirements – 4 Connecting machine to air source – 5 Inserting needles – 6 Attaching sowing kit – 7 Leveling the machine – 8 Checking the index length –... -
Page 3: Introduction
Introduction The GS2 and GS3 models are operated in the same fashion. The differences between the two are that a GS3 model is standard with a leg kit eliminating the need to place the machine on a table, and the GS3 is standard with a dibbling unit. The GS2 machine can accommodate a dibbling unit, and both machines can also be fitted with a Vermiculite dispenser. -
Page 4: Space, Environment And Air Requirements
Space, environment and air requirements The GS2 Automatic Needle Seeder is designed as a tabletop model. The space requirements are as follows: Length = 6.5’ to 10’ Width = 32 inches Height = 28 inches Weight = approx. 100 lbs. for 6.5’... - Page 5 Connecting the air source Connect your air source to the regulator connector being careful to make a secure connection. The gauge is preset to 70 psi. If the fitting that comes with the machine is not correct to your air source, you can purchase a ¼ inch NPT fitting at most supply stores.
-
Page 6: Inserting Needles
Inserting Needles Your machine came equipped with a set of needles. Each needle has qualities that are more suited to different types of seed. Below are some examples of seeds and the needles you should use for each. Use this as a general guide to help determine the proper needle for the seed you are sowing. -
Page 7: Attaching Sowing Kit
Attach the sowing kit Before changing a sowing kit, the air source should be disconnected from the machine and all excess air should be released by using the attaching air gun. The sowing kit is comprised of a drop tube bar located at the base of your machine, and a needle bar. -
Page 8: Leveling The Machine
Leveling the machine To insure maximum precision seeding of your trays, it is necessary to insure that your machine is level on each surface that you place it. The machine is equipped with locking leveling pads to aid in leveling. Figure 4. -
Page 9: Checking The Index Length
Checking the Index length Make sure the air is not connected to the machine before changing the indexing length. The first step is to calculate the length of the index- which is roughly 1 ½ cell lengths. For example, if you are using a standard 512 cell tray –... -
Page 10: Adjust Height Of Sowing Assembly
Adjust height of sowing assembly You will need to adjust the height of the machines working parts to fit the height of the trays you are using. To adjust the height of the entire working assembly (seed pan, drop tube bar, and push bars), first raise the assembly to make sure that it will accommodate the height of the tray, slide the tray under the drop tube arm, then lower the assembly so that the drop tube sits just above the... -
Page 11: Operation
Operating the Machine Before beginning operation, complete the following checklist: • The machine is in the OFF position. • Seed is in the pan and the machine has been leveled. • The correct sowing kit has been attached. • The correct needles have been inserted to match the cells. •... - Page 12 Figure 12. Eject pressure knob, vacuum knob, on/off switch, and vibrator switch/control knob. Begin by turning the vibrator on and adjust as needed noting where the seed is collecting in the tray. Next turn the machine main off/on switch to the on position.
-
Page 13: Cleaning The Needles
Cleaning the Needles If a seed, soil, or other debris should collect in the needle and block it, this machine is equipped with a needle cleaner. Remove the blocked needle turning counterclockwise. Place needle onto needle cleaner located at the base of the operator control panel in the lower right corner. -
Page 14: Setup And Operation - Dibbler
Setup and Operation – Dibbler Your machine may be equipped with a dibbling unit. It is necessary to setup the dibbling unit specific to each tray. Position the tray as shown in Figure 7 on Page 8. Release the lock handle on the rear slide mount of the dibbler and manually slide the dibbler assembly to the left or right to position the dibbling tips to the center of the cells in the tray. -
Page 15: Vibrator Lubricator
Once this is complete, check that the rubber “O” ring is in place on top of the bowl. DO NOT calibrate the lubricator without first contacting Seederman first, as this may be detrimental to the function of the machine. -
Page 16: Replacing Sensors
Replacing Sensors The most common issue customer’s encounter with parts on their needle seeder is an air fitting called a “sensor”. These sometimes need to be replaced, but life expectancy can vary greatly. Before replacing a sensor, clean the area with the air gun on the operator’s right side of the control panel to make sure there is no debris or contaminant on or in the tubing. -
Page 17: Maintenance
Maintenance Your seeder will require very little regular preventive maintenance. We have outlined maintenance items you should perform and should not perform, as well as a checklist you should go through before each operation and at the beginning of each season. Prior to first use and at the beginning of each season…... - Page 18 Remove the air gun from the holder at the upper right corner of the operator’s panel. Grasping gun, use index finger on trigger to activate air through gun. Figure 21. Air gun After each season… • Prepare machine as indicated in “after each use”.
-
Page 19: Safety Precautions
Safety precautions There are few areas on the GS1 that you should be cautious about when operating the machine. Compressed air can be dangerous. Caution should be exercised when connecting and especially when disconnecting air hose fittings. Stand well away and do not directly face the connector when connecting or disconnecting fittings. -
Page 20: Contacts
Contact Should you need any assistance, or have any questions about your Seederman Seeder, please contact us. Write us… Seederman Seeders, 8015 Thompson Road, Spencer, IN, 47460 E-mail us… Graham@seederman.com Susan@seederman.com Telephone us… 815 – 370 – 5075...
