Summary of Contents for Wonwoo Rapport mini HD

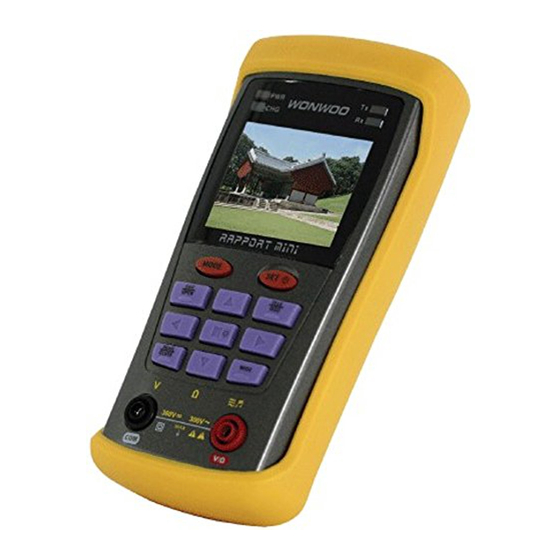

- Page 1 Rapport mini HD Multi Functional CCTV Tester MODE TELE OPEN P/N : 388087345 NEAR WIDE PRINTED IN KOREA CLOSE ~ ♬ 300V 300V~...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS BEFORE USING Rapport mini HD DATA SAFETY INFOMATION SETUP PRODUCT INTRODUCTION USER NAME Product Introduction SLEEP TIME Part name & Functions BEEP Product Specification SYMBOLS Dimension LED Indicator FUNCTIONS Power ON/OFF Mode setup Video Tester... -
Page 3: Before Using Rapport Mini Hd
Pay attention to the following precautions when using the Rapport mini HD. This basic instruction manual is for users of the Rapport mini HD. Starting with an outline of this Rapport mini HD, the manual explains its operation,how it connects to other devices, how to use the menu buttons,and how it should be operated. -
Page 4: Product Introduction
Summary Product Introduction Designed, with portability and serious CCTV engineers in mind, the Rapport mini HD is an Rapport mini HD has a built-in Lithium Polymer advanced piece of video test equipment consisting of many useful test functions needed to Battery. -
Page 5: Part Name & Functions
④ 2.4” Color TFT LCD ① ② ⑤ ⑥ Main keypad for Rapport mini HD operation : Common Port, Lead for black color ① Mode Select: Video, MultiMeter, PTZ Control. MODE : Voltage & Resistance Port, Lead for red color ②... - Page 6 PRODUCT INTRODUCTION PRODUCT INTRODUCTION ① ② ① Internal Battery Cover ① DC Power Jack : DC Power Input Jack (DC12V, 1A) ② Power Switch : Main Power Supply ON/OFF switch ① ② ① Communication Port : Input & Output of PTZ communications signals (RS 422/ RS485, Rx+, Rx-, Tx+, Tx- ) ②...
-
Page 7: Dimension
PRODUCT INTRODUCTION PRODUCT INTRODUCTION Electrical Specifications Multi-meter Specifications Input Voltage DC 12V ± 10%, 1A Minimum Mode Range Accuracy Battery 7.4V (3.7x2)Li-Poly, 2000mAh Measuring Built-in charger Charging Time : 6 hour ±(2.5% +4dgts) Electrical 400mV 100uV Operation Time : 8 hour Characteristic Display 2.4"... -
Page 8: Led Indicator
PRODUCT INTRODUCTION PRODUCT INTRODUCTION LED Indicator Dimension 79.1 Item RED LED GREEN LED Discharged Charging Fully charged Low battery Flicker(1 Hz) Shift power switch off to Power on The LED turns Red or Green depend on the recharging status. On charging : RED LED ON Fully charged: GREEN LED ON Battery is consumable item with 6 months warranty after purchase. -
Page 9: Functions
After the power is applied the above on-screen message is displayed. Approximately 2 seconds later the screen switches to the last OSD before power was turned off. The Rapport mini HD stores the last accessed OSD. The initial OSD message displays the Rapport mini HD's firmware information. -
Page 10: Video Tester
FUNCTIONS ※ Video Tester If there is no video signal at the VIDEO IN port of the Rapport mini HD “LOSS” will be displayed. ② You can check the CVBS, HD-SDI, HD-TVI video signal and determine the input video type ③... -
Page 11: Switch Cvbs, Hd-Sdi And Hd-Tvi
FUNCTIONS FUNCTIONS Switch CVBS, HD-SDI and HD-TVI Zoom in image This product support to select the video mode, input video image of CVBS, Press button to zoom in the HD-SDI and HD-TVI image. HD-SDI and HD-TVI. Press button for 3 sec to switch video mode. VIDEO HD 1080i60 VIDEO... -
Page 12: Digital Multimeter
⑧ MODE STORE When using the meter function of the Rapport mini HD, make sure the unit is switched on and set to the appropriate test mode before connecting the test lead set to the circuit under test. ① METER : Indicates current mode. -
Page 13: Measuring Ac & Dc Voltage
FUNCTIONS FUNCTIONS Measuring Resistance Measuring AC & DC Voltage The unit of resistance is the Ω. The meter sends a low current into the circuit so that Voltage is the difference in electrical potential between two points. the resistance can be measured. This current runs along all paths between the two The polarity of an AC voltage varies with time, while DC polarity is constant. -
Page 14: Ptz Controller
FUNCTIONS FUNCTIONS PTZ Controller ② ③ ① NTSC Connecting Camera and Monitor PTZ ADDR :001 PTZ Operation Test: Up, Down, Left, Right, Zoom and Manual focus control are PROTOCOL : (01)PELCO-D ④ possible. The tester can also be set to various protocols and transmission BAUDRATE: 2 . -
Page 15: Spd(Speed)
FUNCTIONS FUNCTIONS ⓑ GPST (GO TO PRESET) : Moves the camera NTSC ⓐ Change the PTZ setting value view to a designated preset location; Presets ⓒ MODE PTZ ADDR :001 are numbered 000 to 255. The cursor moves PROTOCOL : (01)PELCO-D BAUDRATE: 2 . -
Page 16: Data
When you want to know the input signal of an exterior controller, you can see the camera it can be activated with Rapport mini HD using the TOUR function in the the input data(HEX value) by connecting the communications cable to the Rx menu. -
Page 17: Setup
FUNCTIONS FUNCTIONS SETUP ① ② DATA RCV SETUP USER NAME : RAPPORT - MINI SLEEP TIME : 30Min BEEP : ON ③ ④ MODE CLEAR 0101 VIDEO METER DATA SETUP [ SETUP mode ] ① DATA RCV : Indicates Current Mode. Mode Select : To access this menu depress the key and select the MODE... -
Page 18: User Name
FUNCTIONS SYMBOLS USER NAME : Selecting the USER NAME initiates an editing menu and shows the associated key strokes. Number Symbol Reference Description Select a menu item by pressing the & keys. IRE 60417 - 5031 Each setup value can be changed by pressing the &... - Page 19 MEMO MEMO...
