B&K AV7.1 Operating Manual

Preprogrammed & learning remote control
Hide thumbs
Table of Contents

Advertisement

Quick Links

B&K AV7.1
Preprogrammed & Learning
Remote Control
Operating
Manual
P/N 12702 Rev 0006

Advertisement

Table of Contents
loading

Summary of Contents for B&K AV7.1

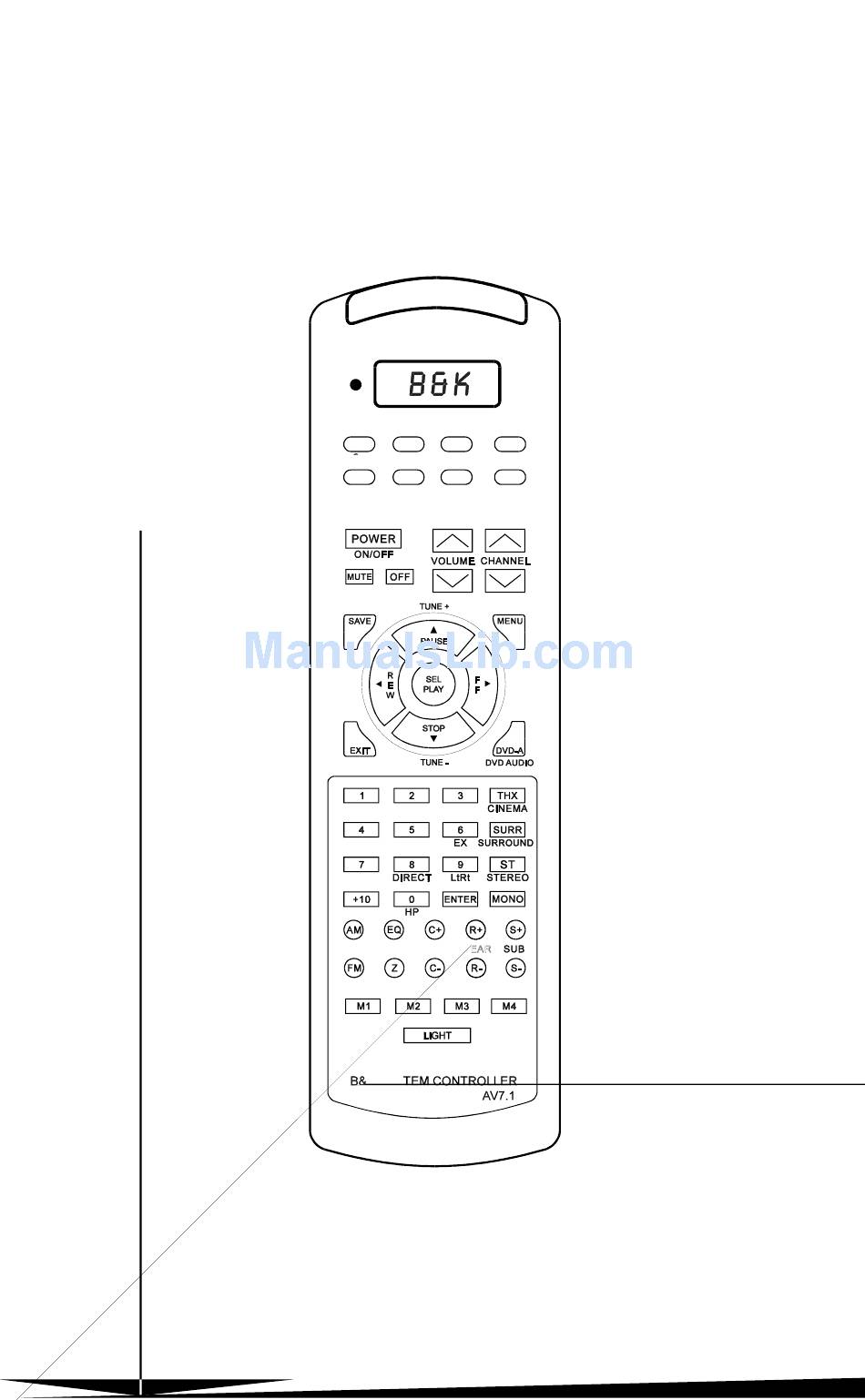

  • Page 1 B&K AV7.1 Preprogrammed & Learning Remote Control Operating Manual P/N 12702 Rev 0006...

  • Page 3: Table Of Contents

    Table Of Contents Introduction Battery Installation A. How To Open and Close Battery Compartment Cover B. Low Battery Message Using Your Remote Control A. Function Table Reference Function Tables B. Preprogrammed Set-Up Three Digit Code Method Auto Search Method Recalling the Set-Up Code C.

  • Page 4: Introduction

    Video components so that you can set it up by simply punching in a three- digit code number that matches your equipment. The AV7.1 also has the ability to learn new functions from your original remote controls, allowing you to customize the remote to your own needs and update it as you add new equipment.

  • Page 5: Low Battery Message

    Note: Batteries should be last about 6 months under normal conditions. The AV7.1 remote control will retain its programmed memory for up to one year after the batteries are removed and up to ten years after the batteries go “dead”.

  • Page 6: Using Your Remote Control

    Using Your Remote A. Function Table Reference...

  • Page 7: Function Tables

    Using Your Remote Button Name Device Name Power / On Mute VOLUME + VOLUME – CHANNEL + CHANNEL – Up / Pause Down / Stop Right / F.F. Left / Rew. Sel / Play Save / I<< / Mode Menu / >>I Exit / Rec.
  • Page 8 Using Your Remote Button Name Device Name Power / On Mute VOLUME + VOLUME – CHANNEL + CHANNEL – Up / Pause Down / Stop Right / F.F. Left / Rew. Sel / Play Save / I<< / Mode Menu / >>I Exit / Rec.
  • Page 9 Using Your Remote Button Name Device Name Power / On Mute VOLUME + VOLUME – CHANNEL + CHANNEL – Up / Pause Down / Stop Right / F.F. Left / Rew. Sel / Play Save / I<< / Mode Menu / >>I Exit / Rec.

  • Page 10: Preprogrammed Set-Up

    Using Your Remote B. Preprogrammed Set-Up The AV7.1 universal remote control can operate up to eight separate audio and video devices or equipment. To program the remote control for your devices, please use the following steps. Three Digit Code Method Turn on the device you would like the remote control to operate, either manually or with your original remote control.
  • Page 11 Using Your Remote Note: SET appears in the LCD for 20 seconds to indicate that the remote control is ready to be programmed. The following steps must be entered while SET appears in the LCD. Point the remote control toward the device that was turned on in Step 1 and enter in the first three-digit Set-Up Code number for that device using the number buttons (0-9) on the remote control.

  • Page 12: Auto Search Method

    Using Your Remote Auto Search Method Please use this method if none of the Set-Up Code numbers worked for your device during the standard set-up procedure or if the manufacturer or brand for your device was no listed in the Set-Up Code Tables. Turn on the device you would like the remote control to operate, either manually or with your original remote control.

  • Page 13: Recalling The Set-Up Code

    Using Your Remote Once the correct code is confirmed, press the Device Button to store the Set-Up Code number. PASS will appear in the LCD. Test the remote control for your device. Try the POWER, CHANNEL UP AND DOWN, VOLUME UP AND DOWN buttons, etc. If any of the buttons do not perform as they should, please repeat the set-up from Step 1 using the next Set-Up Code number for your device.

  • Page 14: Learning Set-Up

    Select the mode in which you wish to learn the new function by pressing the corresponding Device Button. Place the AV7.1 and the original remote to be learned from, on a flat level surface. Line up the remote controls head to head, approximately 2...
  • Page 15 Using Your Remote Press and hold both the Device Button selected in Step 1 and the SEL / PLAY button for approximately three seconds, until the LCD on the AV7.1 shows LEARN. The AV7.1 is now in the learning mode.

  • Page 16: Learning New Functions On The Device Buttons

    Note: If the LCD shows FAIL at any time during the learning process, the AV7.1 was unable to learn the new functions. Please repeat from Step 4. If the AV7.1 continues to show FAIL during the learning process, please try the...

  • Page 17: Erasing Learned Functions

    Press and hold the button on the original remote control that you wish to teach into the AV7.1, for approximately three seconds. The LCD on the AV7.1 will show - - - - - indicating that it is receiving information from the original remote control.

  • Page 18: Erasing All Buttons In One Device Mode

    Using Your Remote Erasing All Functions in One Device Mode Press the Device button for the mode to be erased. Press and hold the Device and SEL / PLAY buttons simultaneously, for approximately three seconds, until the LCD shows LEARN. Press and hold the Device and LIGHT buttons simultaneously, for approximately five seconds and then release the buttons.

  • Page 19: Operation

    Pressing a Device button at the top of the remote performs the following functions: Changes the Device Mode on the AV7.1 remote control. Sends out a Power On command for the Device, if applicable. Sends out a preprogrammed or learned Audio Receiver / Preamplifier INPUT SELECTION, on a second press of the buttons if applicable.

  • Page 20: Main Device Mode

    Using Your Remote Main Device Mode When the main Device Mode is displayed in the LCD, the AV7.1 will operate in a standard operating mode and all the buttons will operate the preprogrammed, learned and punch through features for that Device Mode.

  • Page 21: Backlighting

    Using Your Remote Backlighting All the buttons and the LCD on the AV7.1 are backlit for eight seconds when the LIGHT button is pressed. The backlight is extended an additional eight seconds with any button press while the backlight is on.

  • Page 22: Advanced Features

    Advanced Features After you set-up the remote control to operate your equipment, you can also program advanced features on the remote control. The advanced features are designed to enhance the use of the remote control with your home entertainment system. A.

  • Page 23: Channel "Punch Through

    Advanced Features Channel Control “Punch Through” You can program so that either the SAT or V2 Channel Controls (CHANNEL UP and DOWN) will also operate in other modes on the remote control. Example: Change CHANNEL UP and DOWN on your satellite while the remote is in the TV mode.

  • Page 24: Transport "Punch Through

    Advanced Features Transport Control “Punch Through” You can set-up your remote control so that V1 or CD Transport Controls (PLAY, STOP, FAST FORWARD, REWIND, PAUSE, and RECORD) will also operate in other modes on the remote. Note: When this feature is active, the V1 or CD functions (PLAY, STOP, FAST FORWARD, REWIND, and RECORD) will override any existing functions pre- assigned to these buttons in that mode.

  • Page 25: Macro Buttons

    Advanced Features Macro Buttons The buttons labeled M1, M2, M3, M4, and POWER can be used as macro buttons. Each of these macro buttons can send out up to 15 commands with the press of one button. Macro buttons can be used to turn on and off multiple components with one button or to directly access favorite channels.

  • Page 26: Programming Macro Buttons

    Advanced Features “Relocating” Functions Macro Buttons can be programmed to store functions from one mode and transfer them into other modes. Example: In the B&K mode, Macro Buttons can store various functions from the TV, V1, and Satellite modes. Programming Macro Buttons Select the mode that you wish to program the Macro Button in by pressing the corresponding Device Button (B&K, CD, DVD, TAPE, SAT, TV, V1, or V2) and MUTE button, simultaneously.

  • Page 27: Erasing Macro Buttons

    Advanced Features Example – Memory Button Programming To program Macro Button M2 in the B&K mode to send the following commands: turn on the Audio Receiver, turn on the TV, turn on a VCR, and turn on a Satellite Receiver. Press the B&K Device and the MUTE button, simultaneously.

  • Page 28: Changing The Lcd Display

    Advanced Features C. Changing the LCD Display Twenty-five different LCD displays can be selected for each Device Mode of the remote control. To select an alternate LCD display, please use the following procedure: Press and hold the Device Button for which you would like to change the LCD setting.

  • Page 29: Programming A Second Tv, Vcr, Etc. To Other Device Buttons

    Advanced Features D. Programming a Second TV, VCR, etc. to Other Device Buttons. This feature is used to program the remote control for two or more TVs, VCRs, etc. or to program a device into a mode with a different Device Button name.

  • Page 30: Warranty And Specifications

    Warranty The AV7.1 System Controller comes with a One-year warranty from the date of purchase. Specifications Model B&K AV7.1, infrared remote control Power Four 1.5V AAA Batteries Dimensions (h/w/d) 7.88 x 2.5 x 1.25 inches Weight 6.5 oz. (with batteries)

  • Page 31: Glossary

    Learning Transfer of a function from a button of an original remote control to a button on the AV7.1 remote control. Liquid Crystal Display window located at the top of the remote control. During normal operation the LCD indicates the mode. The LCD also indicates the remote’s programming status.

  • Page 32: Transport Control

    Glossary Set-Up Code The three-digit number that is used to program the remote control for your particular manufacturer or brand of audio / video equipment. Set-Up Code numbers are located in the table in the appendix, on pages 32 – 49 of the instruction manual.

  • Page 33: Appendix

    Assignment of Audio / Video Equipment Please use the following listing to locate the correct Set-Up Code Tables for your equipment. Audio Set-Up Code Table: Audio Receivers, Preamplifiers, Surround Processors Satellite Set-Up Code Table: DSS, Primestar, DBS, Echostar, C Band Receivers TV Set-Up Code Table: TVs, Monitors, Video / LCD Projectors V1 Set-Up Code Table:...

  • Page 34: Set Up Code Tables

    Set-Up Code Tables Manufacturer / Brand ADCOM AIWA AKAI ANGSTROM ARCAM AUDIO ACCESS AUDIO ALCHEMY AUDIO DESIGN AUDIO EASE AUDIO MATRIX AUDIOFILE AUDIO TECHNICA B & K BOSE BRYSTON CARVER CASIO CHIRO CINEMA SOUND CITATION CLARION CURTIS MATHES DENON ELAN ENLIGHTENED AUDIO FISHER FOSGATE...
  • Page 35 Set-Up Code Tables Manufacturer / Brand MAGNAVOX MARANTZ MCINTOSH MERIDIAN MITSUBISHI MONDIAL NAKAMICHI ONKYO OPTIMUS PANASONIC PARASOUND PHILIPS PIONEER PROCEED REALISTIC ROTEL SANSUI SANYO SCOTT SEARS SHARP SHERWOOD SONY SOUNDESIGN SOUNDSTREAM SUMO TEAC TECHNICS THETA DIGITAL TOSHIBA WARDS YAMAHA ZENITH * For Future Applications Audio Set-Up Code Number...

  • Page 36: Satellite

    Set-Up Code Tables Manufacturer / Brand BIRDVIEW B & K CHANNEL MASTER CHAPARRAL CITOH DRAKE DX ANTENNA ECHOSTAR EUROSAT FUJITSU GENERAL ELECTRIC GENERAL INSTRUMENT HITACHI HOME CABLE HOUSTON TRACKER LEGEND LUXOR MACOM MEMOREX NEXTWAVE PACE PANASONIC PANSAT PERSONAL CABLE PHILIPS PRESIDENT PRIMESTAR PROSCAN...
  • Page 37 Set-Up Code Tables Manufacturer / Brand REALISTIC SAMSUNG SATELLITE SERVICE SONY SUPERGUIDE TEE COM TOSHIBA TOWN & COUNTRY UNIDEN US ELECTRONICS ZENITH * For Future Applications Satellite Set-Up Code Number 043 074 028 035 047 085 023 026 075 087 088 090 107 130 137 023 026 016 025 042 043 044 045 048 049 078 079 080 086 101 135 136...
  • Page 38 Set-Up Code Tables Manufacturer / Brand AIWA ARCHER B & K CARVER DENON EXTRON FISHER GOLDSTAR HARMAN KARDON KENWOOD LINN LUTRON LUXMAN MAGNAVOX MAKITA MARANTZ MCINTOSH NAKAMICHI NILES ONKYO OPTIMUS PANASONIC PHILIPS PIONEER POLK AUDIO QUASAR SANSUI SHARP SHERWOOD SONY TEAC TECHNICS TOSHIBA...
  • Page 39 Set-Up Code Tables Manufacturer / Brand JCPENNY JENSEN KENWOOD KLOSS LODGENET LOGIK LUXMAN MAGNAVOX MARANTZ MATSUI MEMOREX METZ MINERVA MITSUBISHI NIKEI ONKING ONWA OPTONICA PANASONIC PHILCO PHILIPS PIONEER PORTLAND PROSCAN PROTON QUASAR RADIO SHACK REALISTIC ROTEC RUNCO SAMPO Set-Up Code Number 004 008 009 024 030 065 101 143 156 160 201 034 038 070 083 145 070 201...
  • Page 40 Set-Up Code Tables Manufacturer / Brand SAMSUNG SANYO SCOTT SEARS SHARP SIEMENS SIGNATURE SONY SOUNDESIGN SPECTRICON SYLVANIA TANDY TATUNG TECHNICS TECHWOOD TEKNIKA TELEFUNKEN TELERENT TERA TOSHIBA TOTEVISION UNIVERSAL VIDEO CONCEPTS VIDIKRON VIDTECH WARDS YAMAHA YORK YUPITERU ZENITH ZONDA * For Future Applications Set-Up Code Number 004 050 089 101 105 127 143 160 007 020 053 057 082 166...
  • Page 41 Set-Up Code Tables Manufacturer / Brand AIWA AKAI AMPRO ANAM AUDIO DYNAMICS B & K BROOKSONIC CANON CAPEHEART CRAIG CURTIS MATHES DAEWOO DAYTRON DYNATECH ELECTROHOME EMERSON FISHER FUNAI GENERAL ELECTRIC HARMAN KARDON JCPENNY JENSEN KENWOOD LLOYD MAGIN MAGNAVOX MARANTZ MARTA MATSUI MEMOREX Set-Up Code Number...
  • Page 42 Set-Up Code Tables Manufacturer / Brand MINOLTA MITSUBISHI MULTITCH NORDMENDE OPTONICA PANASONIC PENTAX PHILCO PHILIPS PILOT PIONEER PORTLAND PULSAR QUARTZ QUASAR RADIO SHACK REALISTIC RICO RUNCO SALORA SAMSUNG SANSUI SANYO SCOTT SEARS SHARP SHINTOM SIGNATURE SONY SOUNDESIGN SYLVANIA SYMPHONIC TANDY TATUNG TEAC TECHNICS...
  • Page 43 Set-Up Code Tables Manufacturer / Brand THOMAS TOSHIBA TOTEVISION UNITECH VECTOR RESEARCH VICTOR VIDEO CONCEPTS VIDEOSONIC WARDS YAMAHA ZENITH * For Future Applications Set-Up Code Number 008 013 042 047 059 079 082 112 131 040 101 012 034 046 141 003 013 017 024 031 034 040 053 054 131 012 034 039 043 034 048 056 058 072 080 101...
  • Page 44 Set-Up Code Tables Manufacturer / Brand AMERICAST ANTRONIX ARCHER B & K CENTURION CENTURY CITIZEN COMBANO EAGLE EASTERN ELECTRICORD GENERAL ELECTRIC GEMINI GENERAL INSTRUMENT HAMLIN HITACHI JERROLD M-NET MAGNAVOX Set-Up Code Number 003 004 039 042 046 053 201 005 007 014 001* 080 081 020 040...
  • Page 45 Set-Up Code Tables Manufacturer / Brand TOCOM TOSHIBA UNIKA UNITED CABLE UNIVERSAL VIEWSTAR ZENITH * For Future Applications Set-Up Code Number 039 040 056 007 014 004 053 005 007 014 032 035 012 015 018 086 087 088 089 052 060 093...
  • Page 46 Set-Up Code Tables Manufacturer / Brand ADCOM AIWA AKAI ARCAM AUDIO ACCESS AUDIO EASE AUDIO TECHNICA B & K CALIFORNIA AUDIO CAPETRONIC CARRERA CARVER CASIO CLARINETTE CREEK CROWN DENON EMERSON FISHER FRABA GENEXXA GOLDSTAR HAITAI HARMAN KARDON HITACHI INKEL JC PENNY JENSEN KENWOOD KOSS...
  • Page 47 Set-Up Code Tables Manufacturer / Brand MEMOREX MISSION MITSUMI MODULAIRE MONDIAL NAKAMICHI NIKKO ONKYO OPTIMUS PANASONIC PARASOUND PHILIPS PIONEER PROCEED PROTON QUASAR REALISTIC ROTEL SANSUI SANYO SCOTT SHARP SHERWOOD SIGNATURE SUMO SYLVANIA SYMPHONIC TANDY TEAC TECHNICS TECHWOOD THETA DIGITAL Set-Up Code Number 014 073 092 005 006 067 095 217 218 219...
  • Page 48 Set-Up Code Tables Manufacturer / Brand TOSHIBA VECTOR RESEARCH VICTOR WARDS YAMAHA YORX * For Future Applications Set-Up Code Number 006 067 091 148 160 004 022 114 124 024 046 054...

  • Page 50: Tape

    Set-Up Code Tables Manufacturer / Brand AIWA ARCHER B & K CARVER DENON EXTRON FISHER GOLDSTAR HARMAN KARDON KENWOOD LINN LUTRON LUXMAN MAGNAVOX MAKITA MARANTZ MCINTOSH NAKAMICHI NILES ONKYO OPTIMUS PANASONIC PHILIPS PIONEER POLK AUDIO QUASAR SANSUI SHARP SHERWOOD SONY TEAC TECHNICS TOSHIBA...
  • Page 51 Set-Up Code Tables Manufacturer / Brand TURBOSCAN VICTOR X-10 XANATECH YAMAHA * For Future Applications TAPE Set-Up Code Number 168 169 170 171 172 188 189 021 026 031 067...
  • Page 52 B&K Components, Ltd. 2100 Old Union Rd. Buffalo, NY 14227-2725 1-800-543-5252 www.bkcomp.com Rev 0006...
