Summary of Contents for Gehl's gehl's 2.0

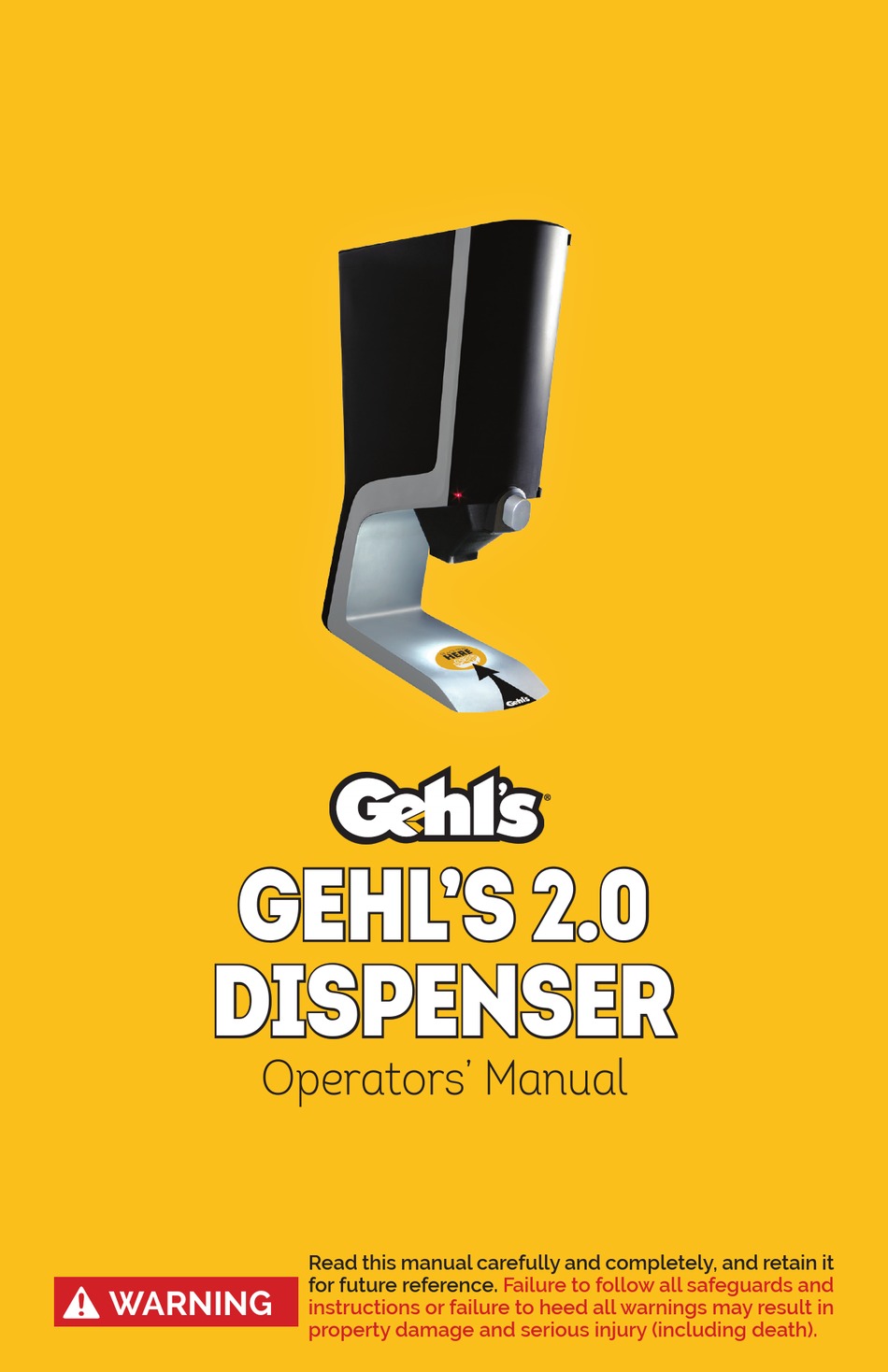

- Page 1 gehl’s 2.0 gehl’s 2.0 dispenser dispenser Operators’ Manual Read this manual carefully and completely, and retain it for future reference. Failure to follow all safeguards and WARNING instructions or failure to heed all warnings may result in property damage and serious injury (including death).
-
Page 2: Table Of Contents
Welcome to the Gehl’s family! With a sleek space and energy-efficient design, the Gehl’s 2.0 Dispenser makes serving warm Gehl’s sauces over delicious snacks easier than ever. You received this dispenser in a cardboard shipping box. Please save the shipping box and label until you have successfully set up the dispenser. Table of contents IMPORTANT SAFEGUARDS &... -
Page 3: Important Safeguards & Warnings
IMPORTANT SAFEGUARDS & WARNINGS When using this electrical appliance, safety precautions must always be followed and warnings must always be heeded: 1. READ ALL INSTRUCTIONS, SAFEGUARDS, WARNINGS, AND OTHER INFORMATION IN THIS MANUAL BEFORE OPERATING THE APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS AND SAFEGUARDS OR FAILURE TO HEED THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY (INCLUDING, BUT NOT LIMITED TO, BURNS, ELECTRICAL SHOCK, AND DEATH). - Page 4 IMPORTANT SAFEGUARDS & WARNINGS When using this electrical appliance, safety precautions must always be followed and warnings must always be heeded: CAUTION Unplug the appliance from the outlet when not in use, before adding or removing parts or sauce bags, and before and during cleaning.
- Page 5 IMPORTANT SAFEGUARDS & WARNINGS When using this electrical appliance, safety precautions must always be followed and warnings must always be heeded: CAUTION Do not use any parts, accessories, or attachments not authorized by Gehl Food & Beverage. The use of parts, accessories, or attachments not authorized by the manufacturer may cause burns, electrical shock, other serious injury (including death), and property damage.
- Page 6 IMPORTANT SAFEGUARDS & WARNINGS When using this electrical appliance, safety precautions must always be followed and warnings must always be heeded: • Always use effective oven mitts and properly cover all exposed skin with heat-resistant materials when opening the lid, handling heated sauce bags, or nearing the inside cavity of the appliance before it has cooled completely.
- Page 7 IMPORTANT SAFEGUARDS & WARNINGS When using this electrical appliance, safety precautions must always be followed and warnings must always be heeded: CAUTION The Receiving Plate and lid of the appliance must be properly installed and in place at all times during operation. Failure to comply with this requirement may cause heat loss, resulting in illness, other serious injury (including burns and death), and property damage.
-
Page 8: Parts
Parts Included sold separately warming cavity Spout dispenser Gehl’s 60 oz cheese base / chilli sauce Valve Flavor Piercing Receiving Funnel Decals Tool Plate When unpacking the dispenser, please look for the following items, which are essential for machine operation: Piercing Tool: Gehl’s 60 oz cheese/chili sauce bags must be slightly punctured with this yellow Piercing Tool... -
Page 9: Initial Setup
Inital Set Up: Follow along with our video: www.gehls.com/Dispenser-Set-Up. 1. Carefully open the top of the box, and lift out the corrugated cap. Next, carefully lift the dispenser out of the box, and place it on a solid, level surface. Remove Flavor Decals from the bottom of the box. - Page 10 Inital Set Up: 6. With clean hands and the dispenser unplugged, place the Receiving Plate flat at the base of the dispenser’s warming cavity, with the rounded end facing toward the back of the dispenser (as shown in the diagram). •...
- Page 11 Inital Set Up: 8. Attach the Flavor Decal to the lid of the dispenser following the instructions on the back of the Flavor Decal. Made with real cheese If you need to order additional decals, visit www. gehls.com/POS or contact our customer service team at help@gehlfoods.com or 1-800-521-2873.
-
Page 12: Loading Product Into Dispenser
Loading Product Into the dispenser Read the instructions below, and select a work area where you can comfortably and safely perform the steps below. Be sure you are away from people and items that may injure you or be injured or damaged by you. Follow the IMPORTANT SAFEGUARDS &... - Page 13 Loading Product Into the dispenser F. Remove a bag of sauce from the case, being careful not to touch food contact surfaces like inside the Spout. Place the bag on the sanitized work surface. G. Write today’s date on the front of the bag with the sanitzed permanent, soft-tipped marker.
- Page 14 Loading Product Into the dispenser M. Touching only the top of the Valve and the sides of the bag’s Spout, arrange the Valve inside the Spout so that the rounded end of the Valve lines up with the rounded end of the Spout. N.
- Page 15 Loading Product Into the dispenser U. When the bag is properly seated, cheese/chili sauce will flow out of the dispenser when the push button is depressed if the sauce has been heated to at least 120°F (48.9°C). Sauce should not be consumed until it has been heated to at least 140°F (60°C).
-
Page 16: Care, Cleaning & Maintenance
Care, Cleaning & Maintenance Follow along with our video: www.gehls.com/Dispenser-Set-Up. Use Only Gehl’s 2.0 The unique design of this dispenser will accept Sauces only Gehl’s 2.0 60 oz cheese/chili sauces with the patented disposable Valve (that works with the dispenser’s patented fitment). Heat to at least 140°F Gehl’s cheese/chili... - Page 17 Care, Cleaning & Maintenance Independently Verify Frequently verify the temperature of cheese/ Temperature chili sauce independently by: (1) removing the bag from the dispenser (following the IMPORTANT SAFEGUARDS & WARNINGS), (2) opening the disposable Valve (with clean hands), and (3) quickly inserting a sterilized thermometer into the sauce while it remains in the bag.
- Page 18 Care, Cleaning & Maintenance CLEANING: Always unplug the dispenser prior to cleaning. Cleaning must be performed between bags because no sauce bag should be allowed to cool (unless safely refrigerated and safely reheated as described above). Be sure to allow sufficient time after cleaning for a new bag to heat properly before consuming.
-
Page 19: Troubleshooting
Trouble Shooting Sauce leaks inside the The bag may have been punctured outside of the dispenser. Spout when installing the Valve into the Spout. Look for small cuts in the bag where cheese/chili is leaking out. Dispose of the bag if it is leaking because it will not properly dispense and because contaminants can more easily enter the bag resulting in foodborne illness and other serious... - Page 20 Trouble Shooting Sauce is leaking from If the bag continues to leak more than a few drops the dispenser when immediately after sauce has been dispensed, the push button is not remove the bag, and replace it with a new engaged.
- Page 21 Read this manual carefully and completely, and retain it for future reference. Failure to follow all safeguards and WARNING instructions or failure to heed all warnings may result in property damage and serious injury (including death). D100811 REV10012021...
