Avocent Cybex SwitchView SC8 DVI Quick Installation Manual

The following instructions will help you
install your SwitchView SC8 DVI switch.
Should you require further assistance, please
contact Avocent Technical Support.
1

Connecting local peripherals

Power down all servers that will be part of your
SwitchView SC8 DVI switching system. Locate
your PS/2 keyboard, DVI monitors and PS/2
mouse. Plug your DVI monitor cables into the
CONSOLE ports on the left side of the back
of your switch. Plug your PS/2 keyboard cable
and your PS/2 mouse cable into the keyboard
and mouse ports respectively.
2

Connecting your servers

Locate your first cable set consisting of two
PS/2 cables and one or two DVI cables. The
SwitchView SC8 DVI switching system has
eight port sets labeled A-H on the rear of the
unit. Plug the two PS/2 cables (keyboard
and mouse) and the DVI cable (monitors)
into the corresponding ports on your server.
Plug the other ends into any available server port
set on your SwitchView SC8 DVI switching system.
Repeat this process until all servers are properly
attached to the SwitchView SC8 DVI switch.
3

Turning on your system

Locate the power cord that came with your switch.
Plug one end into the IEC power connector on
the SwitchView switch. Ensure the power switch
is off, then plug the other end of the power cord
into an AC wall outlet. Turn on your switch first,
then turn on all attached servers.
To Contact Avocent Technical Support: Visit www.avocent.com/support
Avocent, the Avocent logo, The Power of Being There, Cybex and SwitchView are registered trademarks of Avocent Corporation or its affiliates. ©2007 Avocent Corporation. All rights reserved.
Quick Installation Guide
Cybex SwitchView
®
SC8 DVI Switch

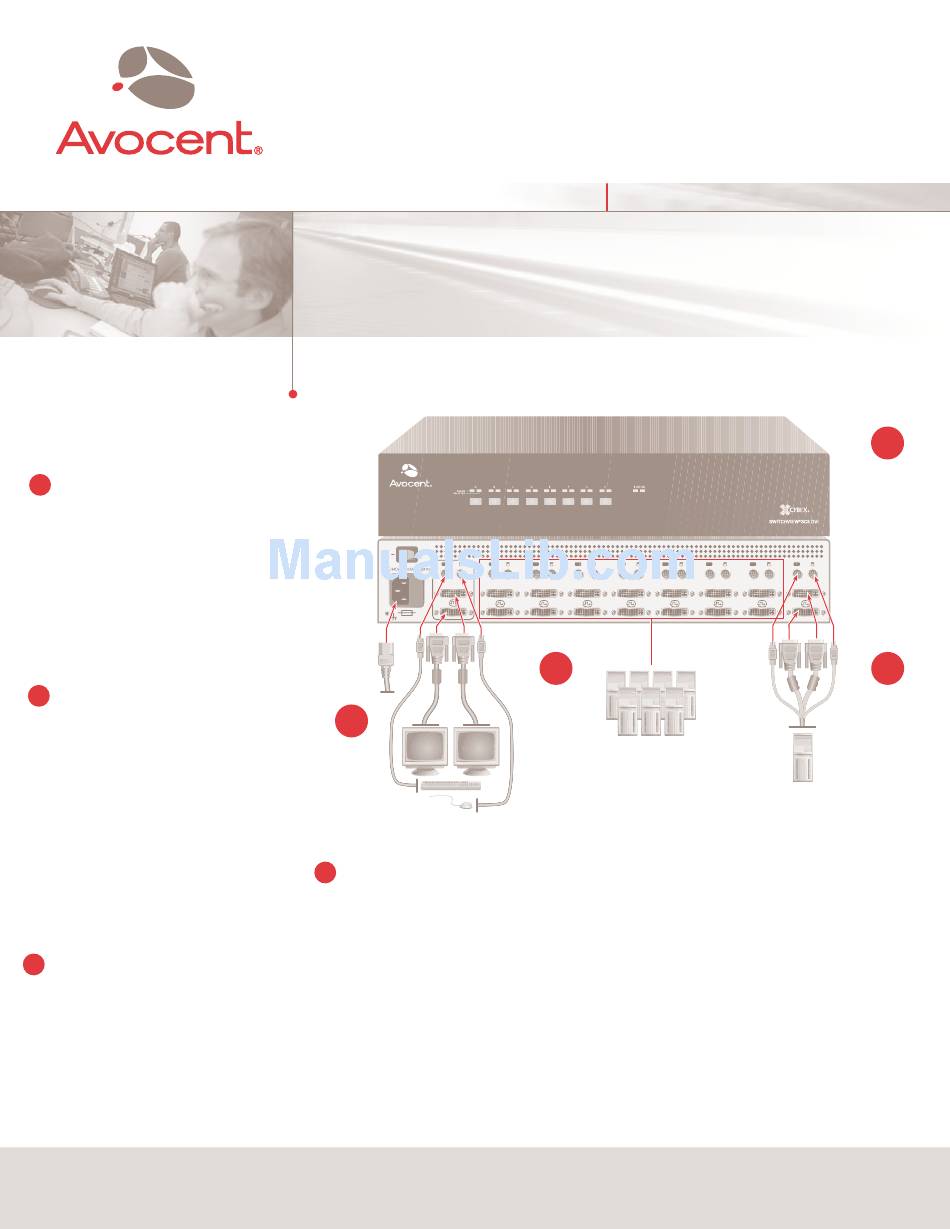

To install the Cybex SwitchView SC8 DVI switch
CONSOLE
Optional
RF ground
(not required
for safety)
3
4 Switching your servers
Press the appropriate front panel button labeled A-H to
access servers in your SwitchView switching system.
LEDs
Each target port (A-H) has dual LEDs on the front panel. A
green LED indicates the target device is on and connected
to the switch. An amber LED indicates the target device
is selected (KVM session).

Environmental

Operating Temperature: 41˚ (5˚C) to 104˚ (40˚C)
Storage Temperature: -4˚ (-20˚C) to 122˚ (50˚C)
The Power of Being There
H G F E D
1
Input Power: 60 W; Operating Voltage 100-240 VAC
Power Frequency: 50-60 Hz

Supported Hardware

Server: IBM, PC/AT, PS/2 and 100% compatibles
Video Modes: VGA, SVGA, XGA, SXGA, UXGA,
HDTV and QXGA
Maximum Resolution: 2048 x 1536 @ 75Hz
Peripherals: PS/2 keyboard, PS/2 mouse and
IntelliMouse (PS/2 only)

Mechanical

H x W x D = 3.6" x 17.2" x 10.8" (9.1 x 43.7 x 27.4 cm)
Weight = 9.5 lbs (4.3 kg)
®
®
4
C B A
2
590-502-501D
