65-1060-13TK TRAILERSAFE
Installation Guides
A. Innehåll:
Universal towbar wiring
65-1060-13TK

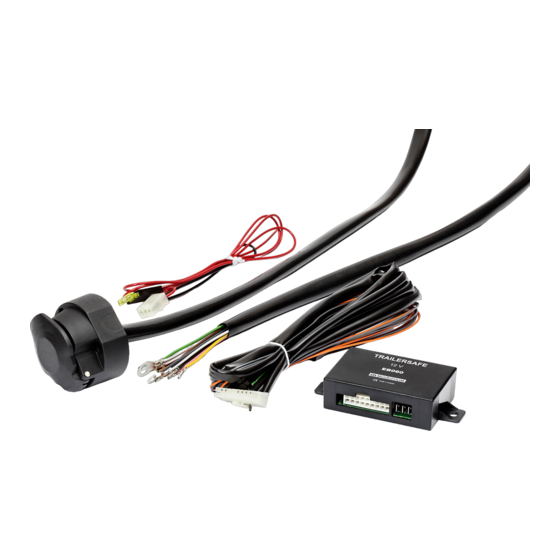

Included in kit:
1A
7KA1047-13T
1B
7KA1048-T2
1C
EB060T
2A
2B
2C
2D
2E
3A/B
3C
3D
3E
2018-10-30
TrailerSafe
Trailer cabling
Control cabling
Control unit (TrailerSafe
electronics)
6-pin connector
Contact pin
U-lugs
Seals for 6-pin connector
Supply cable
Screw and nut M5
Damask for 13-pin connector
Double-sided adhesive tape
Cleaning cloth
Read below before you start the assembly work:
•
Installation must be carried out in a professional manner and in
accordance with the instructions of the respective vehicle manufacturer.
•
Good functionality always depends on a correct installation, where all
cables and connections are correctly adapted in terms of cable area and
that cable lugs are "pressed" properly.
•
These assembly instructions must be read before starting work.
It is not allowed to use so-called current thieves/quick connectors ..
•
Advertisement
Table of Contents
Summary of Contents for Modernum TrailerSafe 65-1060-13TK
- Page 1 65-1060-13TK TRAILERSAFE Installation Guides A. Innehåll: Universal towbar wiring 65-1060-13TK TrailerSafe Included in kit: Trailer cabling 7KA1047-13T Control cabling 7KA1048-T2 Control unit (TrailerSafe EB060T electronics) 6-pin connector Contact pin U-lugs Seals for 6-pin connector Supply cable 3A/B Screw and nut M5 Damask for 13-pin connector Double-sided adhesive tape Cleaning cloth...

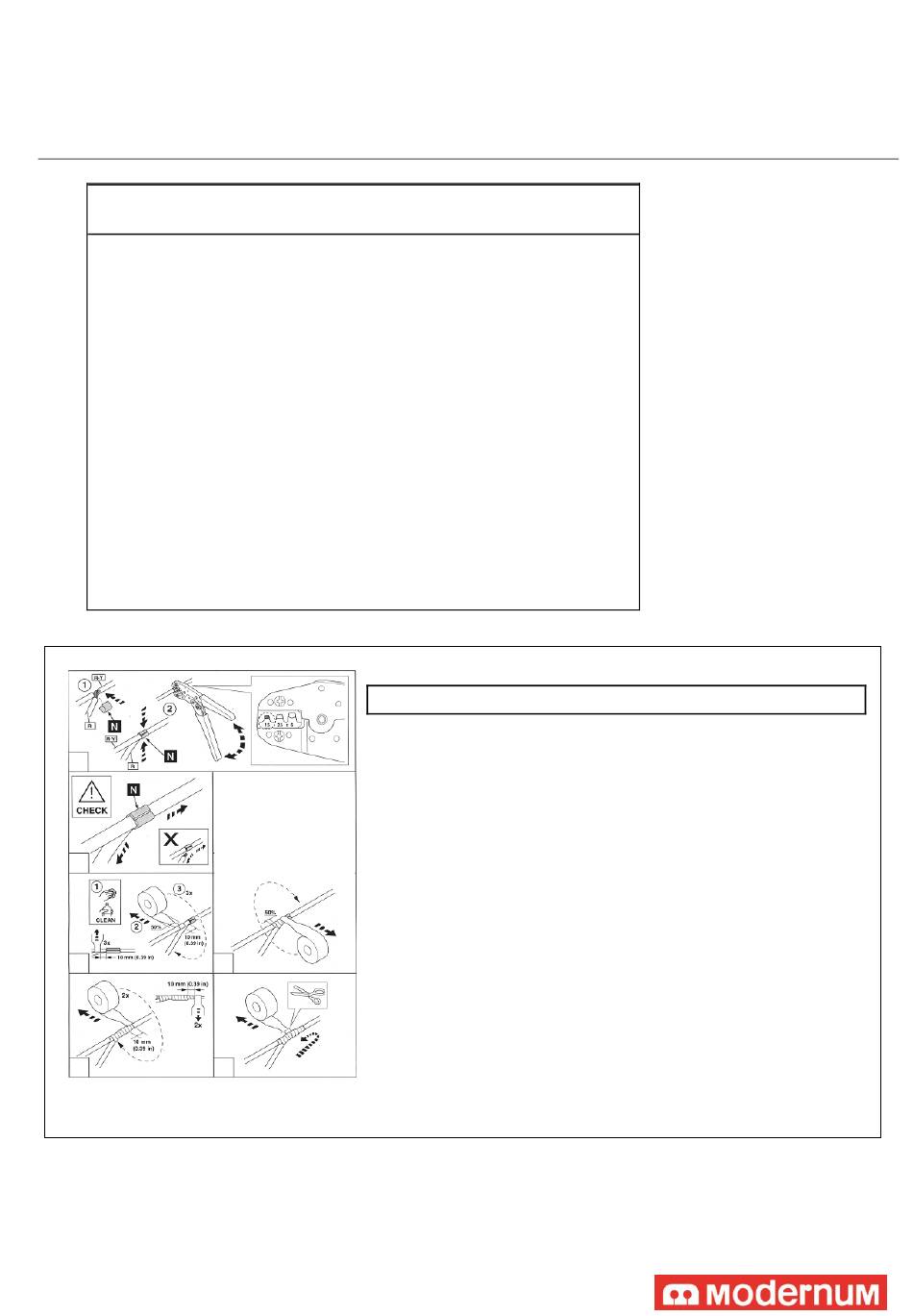

- Page 2 TrailerSafe | installation Drawing B. Step by step 1. Screw the trailer cable 1A with the parts 3A-3C onto the towbar, and pull the cable into the luggage compartment. 2. Check if there is battery voltage in the back of the car, use contact pin 2B. If it is not available, then feel free to use our accessory supply cable 7KA1046 (7m long), and pull it up to the battery.
- Page 3 TrailerSafe | installation Drawing Parts Included cabling Connection 6-POLE CONNECTOR TRAILER WIRING PIECE FROM STYRDON Plug the cables from the trailer connector into the loose 6-pin connector with seals. This is done color to color corresponding to the colors in the 6-pin connector from the controller.
- Page 4 TrailerSafe |installation Drawing Wiring diagram 2018-10-30...
