Audio Authority 1725M-BTS User Manual

Soundbar demonstrator
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
User Manual
Model 1725M-BTS
Soundbar Demonstrator

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1725M-BTS and is the answer not in the manual?

Questions and answers

Related Manuals for Audio Authority 1725M-BTS

Summary of Contents for Audio Authority 1725M-BTS

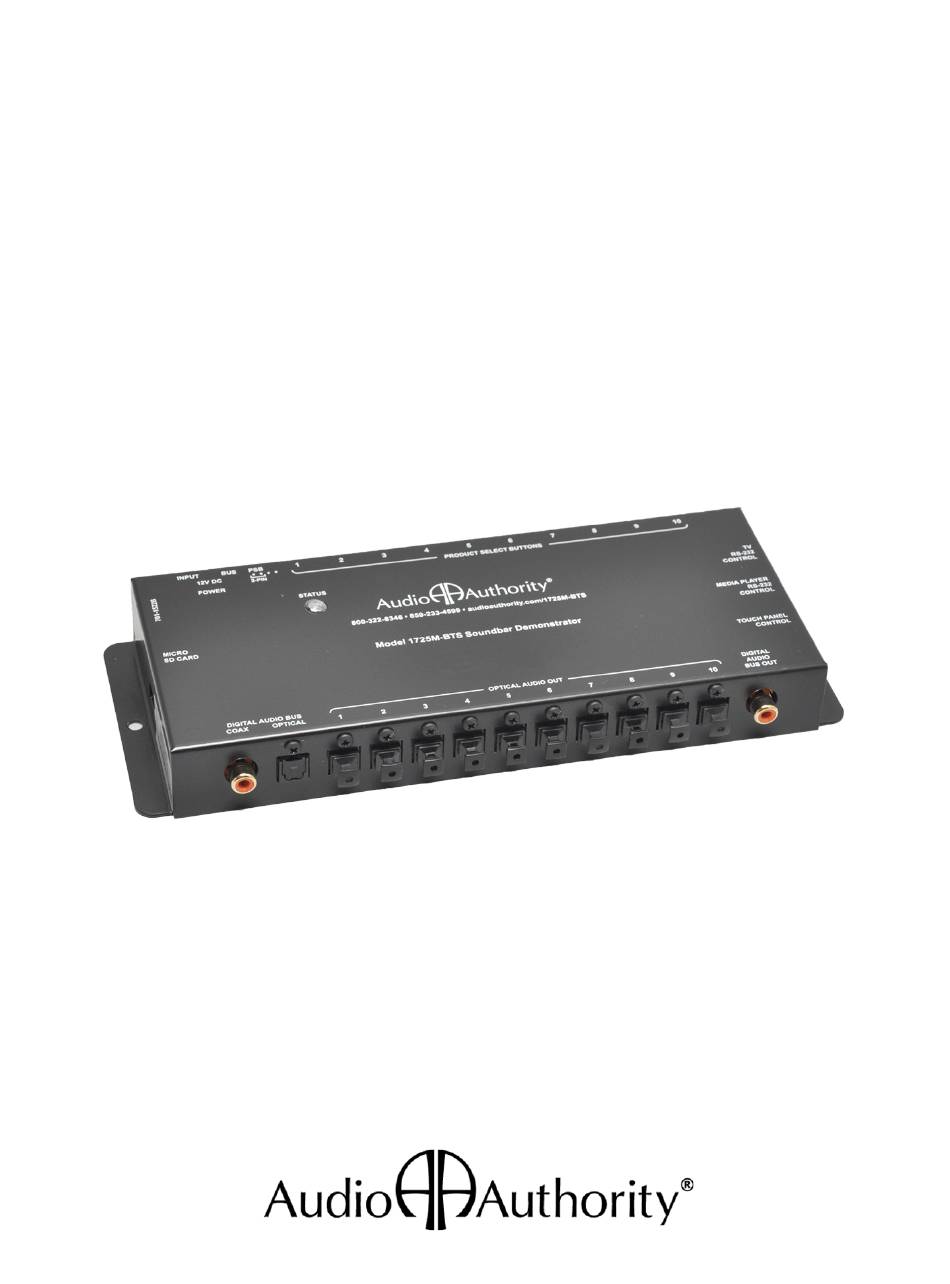

  • Page 1 User Manual Model 1725M-BTS Soundbar Demonstrator...
  • Page 2 STYLES AND COLORS. Media Player The Media Player RS-232 Control port on the 1725M-BTS is connected to the media player via an adapter, DB9F to RJ-45 cable (PN: 801-252) or 3.5 mm to RJ-45 (PN: 801-373). The TV RS-232 Control port on the 1725M-BTS is connected the RS-232C connector on the TV via a DB9F to RJ-45 cable (PN: 801-252).
  • Page 3 SD CARD POWER INPUT DIGITAL AUDIO COAX INPUT POWER BUS OUT DIGITAL AUDIO OPTICAL INPUT PSB PIN CONFIGURATIONS • • PRODUCT SELECT BUTTONS (2-WIRE) • • • • PRODUCT SELECT • • BUTTONS (4-WIRE) 4-WIRE 2-WIRE 10 SOUNDBAR DIGITAL AUDIO 10 PRODUCT CONNECTIONS SELECT...
  • Page 4 Operation Apply power to the 1725M-BTS. The 1725M-BTS power LED lights and flashes to indicate that it is ready for operation. Press a lit product select button (PSB) or the touch panel to select an output. The selected channel passes digital audio from the input device. Select other product positions, or press the button of a selected product to turn it off.
