Summary of Contents for DYI SHENG DS04-S

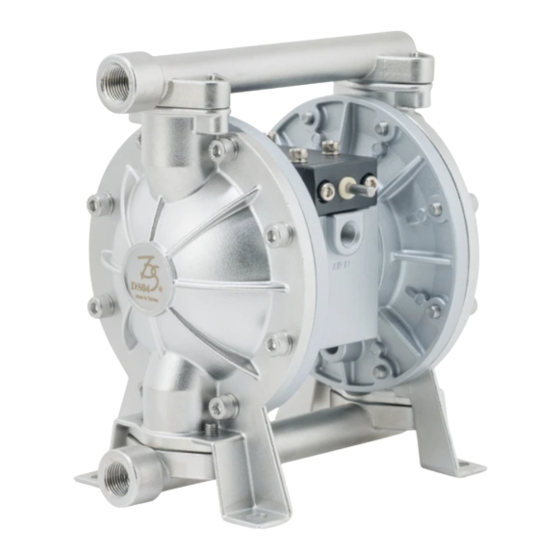

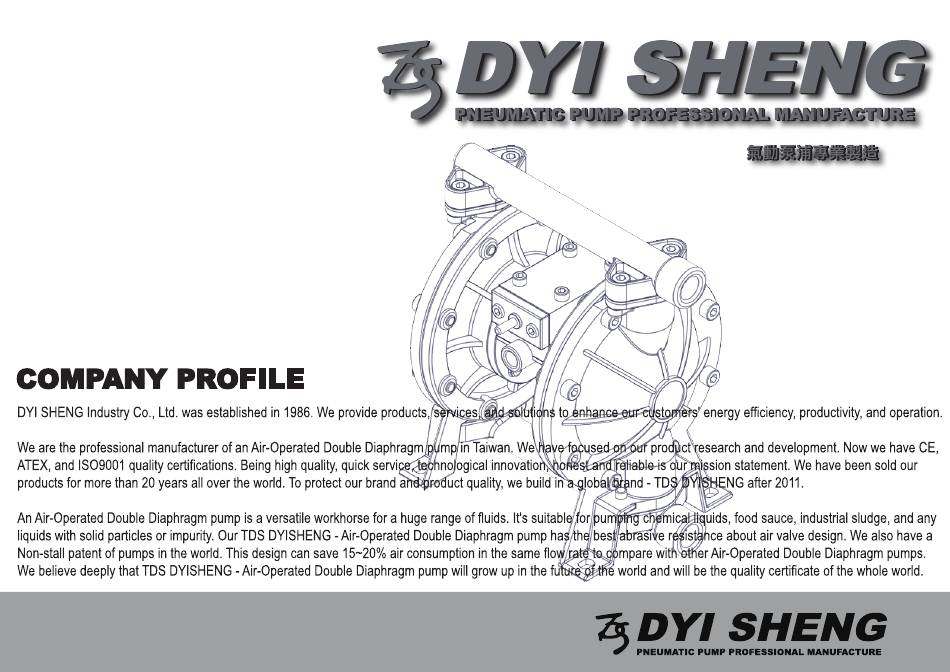

- Page 1 DS04-S OPERATING MANUAL...
-
Page 2: Table Of Contents
INDEX Index..........................1 Type Specification Indication..................2 Pump Type and Liquids Serviceability Specification..........3 Material and Temperature Range................4 Exploded View Drawing.....................5 Screws Torque Guide....................6 Dimensions.........................7 Important Safety Information..................8 Installation Considerations..................9 Installation Instructions...................10 FAQ..........................11 Warranty Instructions....................12... -
Page 3: Type Specification Indication
TYPE SPECIFICATION INDICATION According to your demands, you can follow the explanation below. Size Wetted Body Center Body Pupe Type Diaphragm Ball cover Ball Ball seat Edition 04：1/2" S：Stainless Steel (SUS316) A：Aluminum T；Conter U：UPE S：Stainless Steel S：S.S #316 S：Stainless Steel I：Flank T：PTFE/TFM P：PP... -
Page 4: Pump Type And Liquids Serviceability Specification
PUMP TYPE AND LIQUIDS SERVICEABILITY SPECIFICATION Pump Type Liquids Serviceability DSXX-AAX-UXXX-X Paint, Solvent, Ink, Glue, Pulp, Heavy Oil, Toluene, Benzene DSXX-AAX-TXXX-X Hight temperature liquid, Resin, Metal Scrap Solu�on, Gasoline, Xylene, Acetone Mud, Sludge, Waste Water, Lubrica�on Oil, Motor Oil, Cu�ng Oil, Turbine Oil, Methyl Alcohol, Release Agent, DSXX-AAX-OXXX-X Cas�ng Fluid DSXX-PXX-OXXX-X... -
Page 5: Material And Temperature Range
MATERIAL AND TEMPERATURE RANGE Material Descrip�on Temperature Range Stainless steel is a family of iron-based alloys that contain a minimum of approximately 11% chromium, a composi�on Stainless steel (SUS): -196~800ﾟC that prevents the iron from rus�ng, as well as providing heat-resistant proper�es. Aluminum has a high chemical affinity to oxygen, which is an oxide film that can avoid oxida�on. -
Page 6: Exploded View Drawing
DS04-SAIXXXX-02 Dissolution Drawing Component Name Amount ComponentNO. HexagonScrew PC000018SW HexagonScrew PC000004SW &4 DownBallSeat PA000015 Oring PB000083 &6 UpBallSeat PA000025 &7,8 Ball Cover PB000129 &9 SteelBall PA000110 TeflonBall PB000039 PB000013 HousingOfPump PA000048 SteelHexagonScrew PC000176 SteelWasher PC000057 &14 PadOfDiaphragm PA000060 &15 Diaphragm(PE) PB000032 Diaphragm(Teflon) PB000026... -
Page 7: Screws Torque Guide
SCREWS TORQUE GUIDE Posi�on Name Torque Values(kgf.cm) M6 Hexagon Screw 100~120(Max) M8 Steel Hexagon Screw 90~100(Max) M6 Hexagon Screw 120~130(Max) M8 Hexagon Screw 285~330(Max) M6 Hexagon Screw 45~50(Max) M8 Hexagon Screw 230~260(Max) Annotation: Please lock it according to the torque value to avoid leakage or over-tightening. Tension to Torque Conversion Gravity Unit Imperial Unit... -
Page 8: Dimensions
DIMENSIONS Air Inlet <1/4"> Fluid Outlet <1/2"> Fluid Inlet <1/2">... -
Page 9: Important Safety Information
IMPORTANT SAFETY INFORMATION... -
Page 10: Installation Considerations
INSTALLATION CONSIDERATIONS Installation and Assembly Considerations ◆ Connect the suction and discharge ports of the pump with a hose or flexible pipe to avoid damage caused by vibration of the pump. Never step on the diaphragm pump or use other methods to apply weight to the pump body, or suspend the pump. Otherwise, there is a danger of personal injury or equipment failure. -
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS Surge Suppressor Limited Gauge Shut-Off Valve Discharge Drain Port Flexible Pipe Connection connection Modular Type (Style Optional) F.R.L Unit Air shut-Off Flexible Valve connection Gauge Air inlet Flexible Shut-Off Valve connection Suction Drain Port Pipe Connection (Style Optional) -
Page 12: Faq
The joint is loosely sealed: Except incomplete locking, if the O-ring or Pad of the pump joint has deformation or wear, it will be loosely sealed and then leakage. Please replace the parts of the pump. S. If these answers cannot solve your problem, please contact DYI SHENG’s staff. Warranty:... -
Page 13: Warranty Instructions
WARRANTY INSTRUCTIONS Warranty Instructions Warranty Exceptions ◆ Improper use (e.g. Falling, Attacked, Liquid ◆ We are guaranteed against the quality of the input…etc.) or abnormal operating conditions pump for a period of one year from the date of the (e.g. Flood, Fire, Earthquake, Lightning strike, shipping date.
