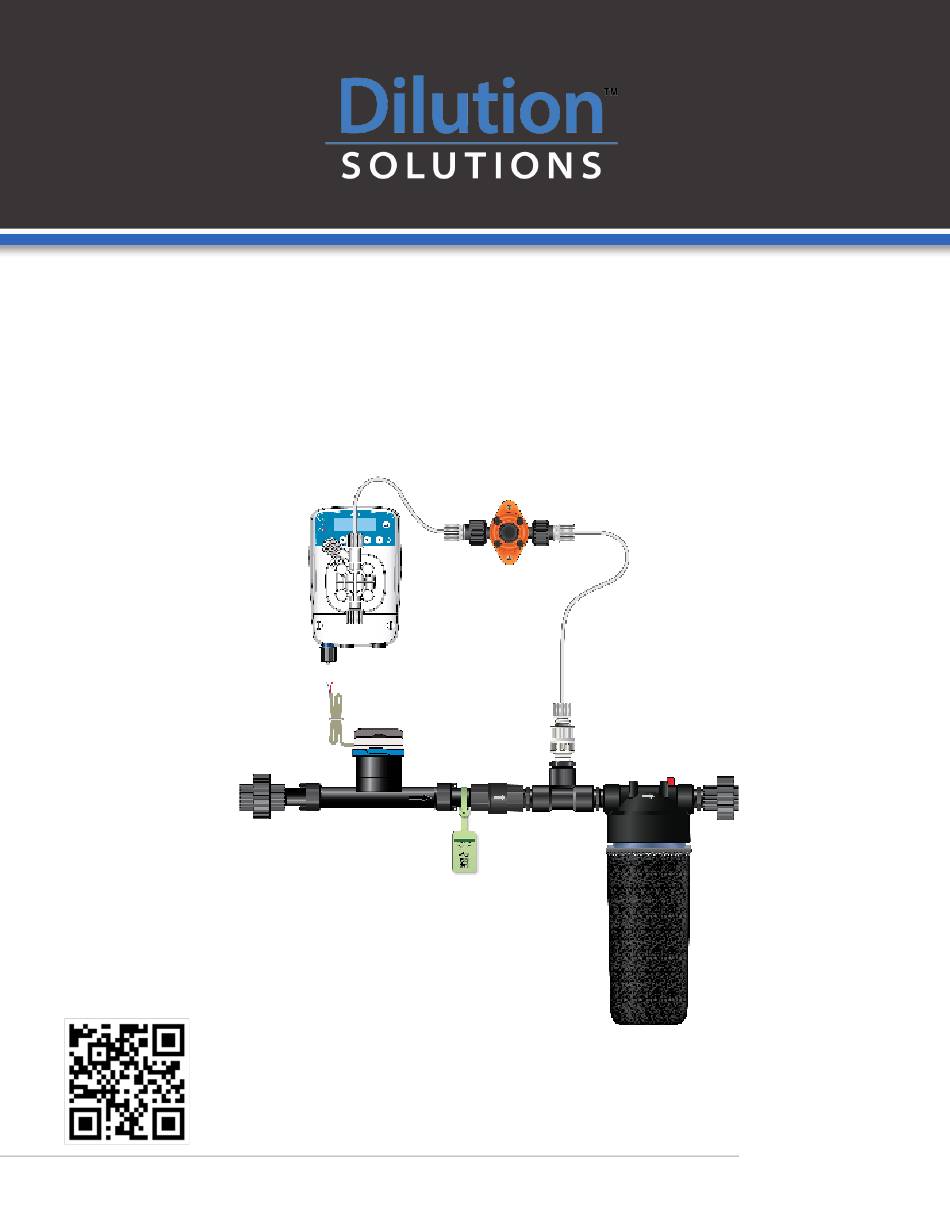

- Page 1 3/4” MICRO-DOSER KIT MANUAL Item #: MDE0110MF.75KIT Scan this QR code for digital instructions eOne eOne and support videos...

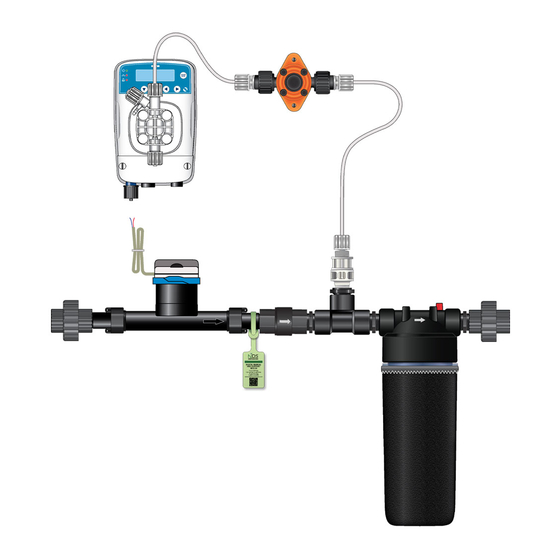

- Page 2 ¾” Micro-Doser Kit Contents Included in the MicroDoser ¾” Kit: PACK Part Item Number Part Image gaskets nuts Water Meter with Adapters WM34-1PPG (1 pulse per 1 gallon) adapters water meter PACK Part Item Number Part Image ¾” Threaded Union BK034-U ¾”...
- Page 3 Included for difficult priming situations only. PACK Part Item Number Part Image eOne MF 0110 PEU483891MEA eOne pump tubing kit NOTE: Parts ordered, or pictured, may look slightly different than the image displayed, but the fit and function will be the same.
- Page 4 ¾” Micro-Doser Kit Step-by-Step Assembly Instructions INSTRUCTION TO ASSEMBLE THE MICRO-DOSER KIT PLUMBING SECTION To attach the Adapters to the ends of the Water Remove the white clear caps from the ends of the Water Meter, and discard. Meter, slide the Adapter through the Nut. Place the Gasket between the Adapter and the Water Meter threads, as indicated in the image.
- Page 5 Mixing Chamber, and attach the last Union to the points in the direction of the flow. other side of the Close Nipple. The Plumbing Assembly of your Etatron Micro-Doser ¾” System is complete. Put the Assembly aside and continue with the Pressure Relief Valve (PRV). eOne eOne...
- Page 6 Assembly & Connection of the PRV to the Etatron Pump For these steps you will need the PRV4X6 kit & the Etatron eOne MF Pump Take the PRV4X6 kit out of the box. The outer holes Take your pump from its box and mount it on the on the bracket are used for mounting the PRV4X6 wall using the bracket included with the pump.
- Page 7 Remove the Nut, Collar, and Nozzle from the top Your Micro-Doser Kit assembly is now connected of the Injection Valve, and attach the tube from to your pump. the outlet side of the PRV, following the same procedure in step 16. eOne eOne...
- Page 8 Tubing Connection - Water Meter Wiring Attaching the Foot Filter and Priming Tubing Grab the Clear Attach the end of one of flexible PVC Tube the sections to the included with your pump. Suction Valve and the Cut the Tube in half, other end to the Foot one piece for the Priming Filter, following...
-
Page 9: Pump Priming
The pump will begin to back up. stroke/click. Chemical should Push the START/STOP button to stop the priming start going up function once chemical reaches the injection valve. the discharge tube and toward the injection valve. eOne eOne... -
Page 10: Pump Programming
Pump Programming Push the right arrow until the display reads Pulse/Stroke Volume is calculated in relation to OPERATING MODE/ 1 x N (M) MODE. the pressure in the irrigation line. Use the values below to determine volume. Please see page 9 for detailed instructions to PUMP Single Pulse Maximum... - Page 11 This valve serves two purposes: a. To vacuum relief in a siphon situation. b. To make changes to the Single Pulse Volume. Using the adjustment screw, the amount of pressure that the eOne pump experiences can be increased Injection above line pressure.
-
Page 12: Standby Mode
Volumetric Testing Procedure To adjust the Single Pulse Volume with the Pressure Relief Valve (PRV), follow these steps: Remove the Black Protection Cap from the PRV. Loosen the Counter Nut from the Adjustment Screw. Black Adjustment Protection Screw Counter Turn Adjustment Screw clockwise to increase Back Pressure, and reduce Single Pulse Volume. -
Page 13: Manual Mode
Open Test/Dump Port to allow water flow. Press the START / STOP button to activate the pump. Run the pump for 1:00 Minute (use a timer). GPM of water does not matter at this time, injection will be done manually rather than proportionately. OPEN eOne eOne... - Page 14 Press the START / STOP button again to return Close the Test/Dump Port to stop water. pump to STANDBY MODE CLOSED The system should be flushed before entering / returning to Operational Modes. Note volume in graduated cylinder. DIVIDE: SUBTRACT: Total Volume drawn in 100 Pulses Volume...
- Page 15 Now, attach the QR Code tag included, to the Micro-Doser installation as shown. The QR Code on the tag will take you to a page with programming, priming and calculation videos for the Etatron eOne MF pump, as well as a digital version of this manual. *Concentrate container code tag not included.
- Page 16 Dilution Solutions • 2090 Sunnydale Blvd. • Clearwater, FL, USA 1-800-451-6628 • 727-451-1198 • www.dilutionsolutions.com...
