Smoke and Carbon Monoxide Detector (SDCO-1-F1 Series)
Introduction
SDCO-1-F1 Series is a Smoke and Carbon Monoxide Detector. It is capable of sending wireless signals to the Control Panel
upon detection of smoke particles or Carbon Monoxide. The SDCO-1 is designed to be mounted on ceiling or top of stairwells
where smoke would concentrate to raise alarm timely and protect your home from fire hazards.
The SDCO-1 Series include the following models:

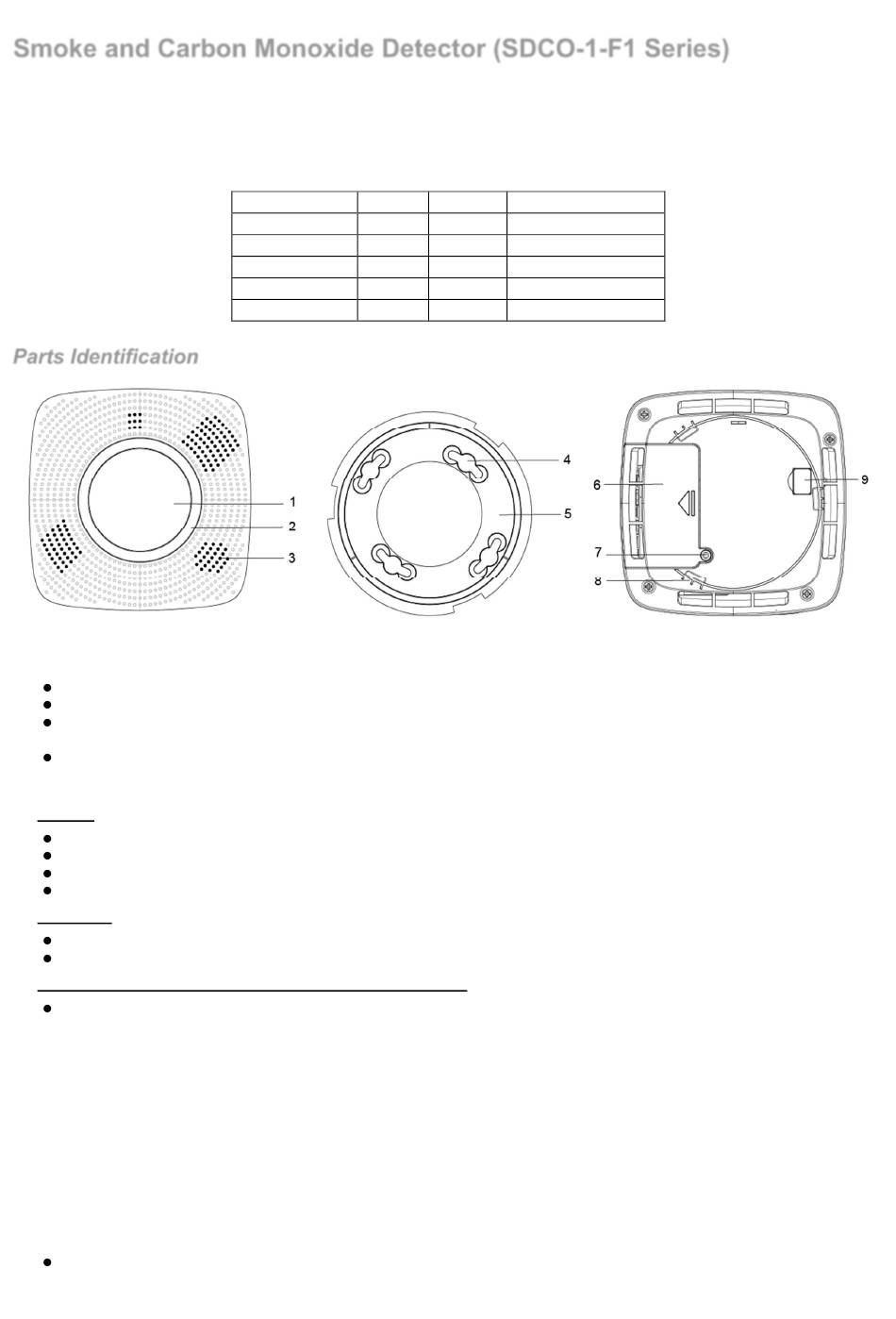

Parts Identification
1. Test Button
Press the button once to send a test/learn signal.
Press the button once during alarm to enter alarm silence mode.
Press and hold the button for 10 seconds. Release the button when the SDCO emit 2 beeps to enter smoke calibration and CO
self-diagnosis process.
Press the button twice to fully discharge before inserting new batteries.
2. LED Indicator
Red LED
Turns ON briefly: Transmitting test/learn signal.
Quick flash: Alarming.
Flashes every second: in alarm silence mode.
Flashes every 2 seconds: Under warmup and calibration process.
Amber LED
Flashes every 5 seconds: Device malfunction
Flashes every 45 seconds: Low battery condition
Both Red and Amber LED (Orange when looking from the outside)
Flashes every 4 seconds: Batteries are extremely low and need to be replaced.
3. Buzzer
4. Mounting Holes (for Hooks)
The Hooks of the Mounting Bracket can hook into its Mounting Holes.
5. Mounting Bracket
6. Battery Compartment Cover
7. Battery Compartment Cover Fixing Screw
8. Notches
9. Firmware Update Port (USB Type-C)
For firmware update with customized cable only. Please note: Misuse of normal USB Type C cable can result in device malfunction.
Model Name
Heat
SDCO-1-F1
v
SDCO-1H-SC
SDCO-1-F1-2W
v
SDCO-1H-F1
v
SDCO-1H-F1-2W
2 way
v
v
v
1
Advertisement
Table of Contents
Related Manuals for Climax Technology SDCO-1-F1 Series
Summary of Contents for Climax Technology SDCO-1-F1 Series
- Page 1 Introduction SDCO-1-F1 Series is a Smoke and Carbon Monoxide Detector. It is capable of sending wireless signals to the Control Panel upon detection of smoke particles or Carbon Monoxide. The SDCO-1 is designed to be mounted on ceiling or top of stairwells where smoke would concentrate to raise alarm timely and protect your home from fire hazards.
- Page 2 Features Battery and Low Battery Detection The SDCO-1 uses three EL123AP Lithium Batteries as its power source. The batteries are included in the package. The SDCO has a foolproof mechanism which prohibits cover closure without first installing battery. When the SDCO is low on battery, a low battery signal will be transmitted along with regular signal transmissions. The Amber LED will flash with a low-volume beep once every 45 seconds.
- Page 3 If 5 beeps (DO-Bi-Bi-Bi-DO) are emitted, it means the Heat Sensor is out-of-order. If 7 beeps (Bi-Bi-Bi-DO-Bi-Bi-Bi) are emitted, it means the CO Sensor is out-of-order. Supervision For SDCO-1(H)-F1 models, the SDCO Detector will transmit a supervision signal to report its condition regularly every 30 to 50 minutes.
- Page 4 be received by the Control Panel at mounting location. Step 2. The SDCO Detector has a mounting bracket for ceiling installation. The bracket provides bidirectional flexibility. Step 3. Use the 4 holes on the bracket as template to drill holes and insert wall plugs if required. Step 4.
