LynTec RPC Sereis Quick Start Manual

RPC
THE INDUSTRY'S MOST COMPLETE SELF-CONTAINED
ELECTRICAL CONTROL PANEL
SERIES PANELS
CONTACT CLOSURE SETUP
QUICK START GUIDE
Using a standard LynTec SS-2 Switch Set with illuminated ON switch.
(For other types of switches, consult chapter 4 of the instruction bulletin for
wiring diagrams.)
1)
Complete all steps in the "RPC Quick Start Guide"
2)
Confirm that RPC panel and any secondary panels are connected to the controller as indicated in
the "RPC Master/Secondary Quick Start Guide" bulletin.

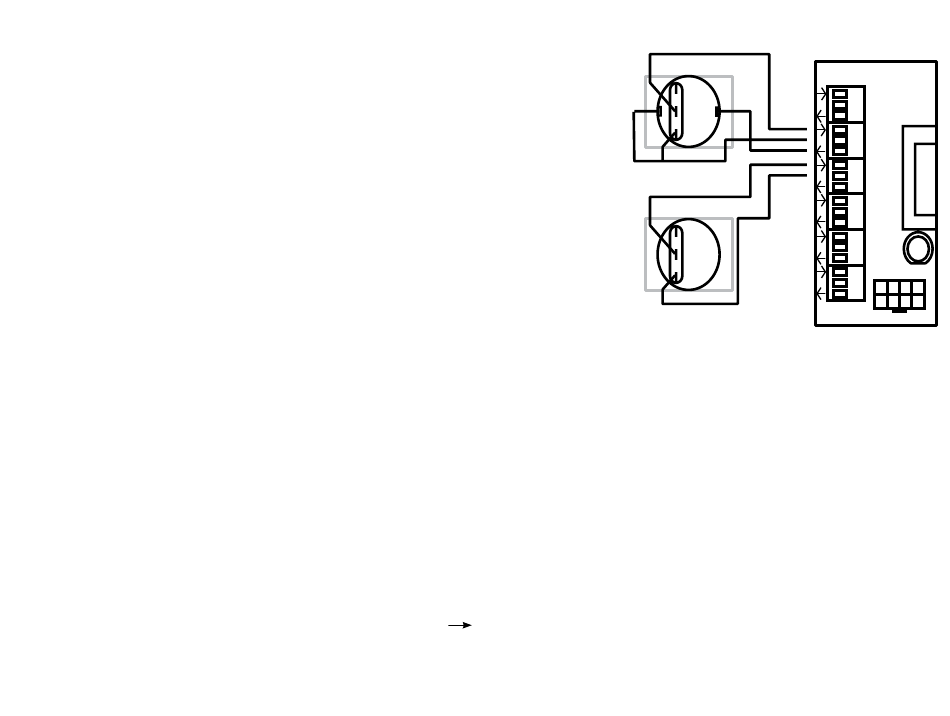

3) Wire the ON switch to a digital I/O port on the left edge of the Controller board as follows:
A. Connect the 24VDC Common (center terminal of the I/O port) to the C pin of the ON switch.
B. Connect the Input terminal (arrow pointing towards header) to the NO pin of the ON switch.
C. Connect the Output terminal (arrow pointing away from header) to the – pin of the ON switch.
D. Connect a jumper between the C pin and the + pin of the ON switch.
4)
Wire the OFF switch to the next consecutive digital I/O port on the left edge of the Controller
board as follows:
A. Connect the 24VDC Common terminal to the C pin of the OFF switch.
B. Connect the Input terminal to the NO pin of the OFF switch
5)
On the RPC web page, go to the contact closure page. (Setup
139-0716-00
ON
OFF
Contact Closures)
Digital I/O
NC
1
+ NO –
C
2
3
4
NC
5
NO
C
6
EL
Note: Ports 1 & 6 are reserved
for emergency functions
IN
EO
24V
OUT
Left Bus
