9354-CONNECT-CON-EUROPE
Operation Quick Start Guide V1.0 for
CONNECT-CONTROL-EUROPE
CONNECT-CONTROL-WORLD
This page contains the brief instructions for the CONNECT-CONTROL-devices. Here you will find an
overview of the various components on the front and back, basic hardware installation, initial login information,
device specifications and general safety instructions. It is highly recommended that you familiarize yourself with
the quick start guide before using the device. If you have a CONNECT-CONTROL-device, you will also find a
printed version of the quick start guide in the device packaging or online on the device's product page.

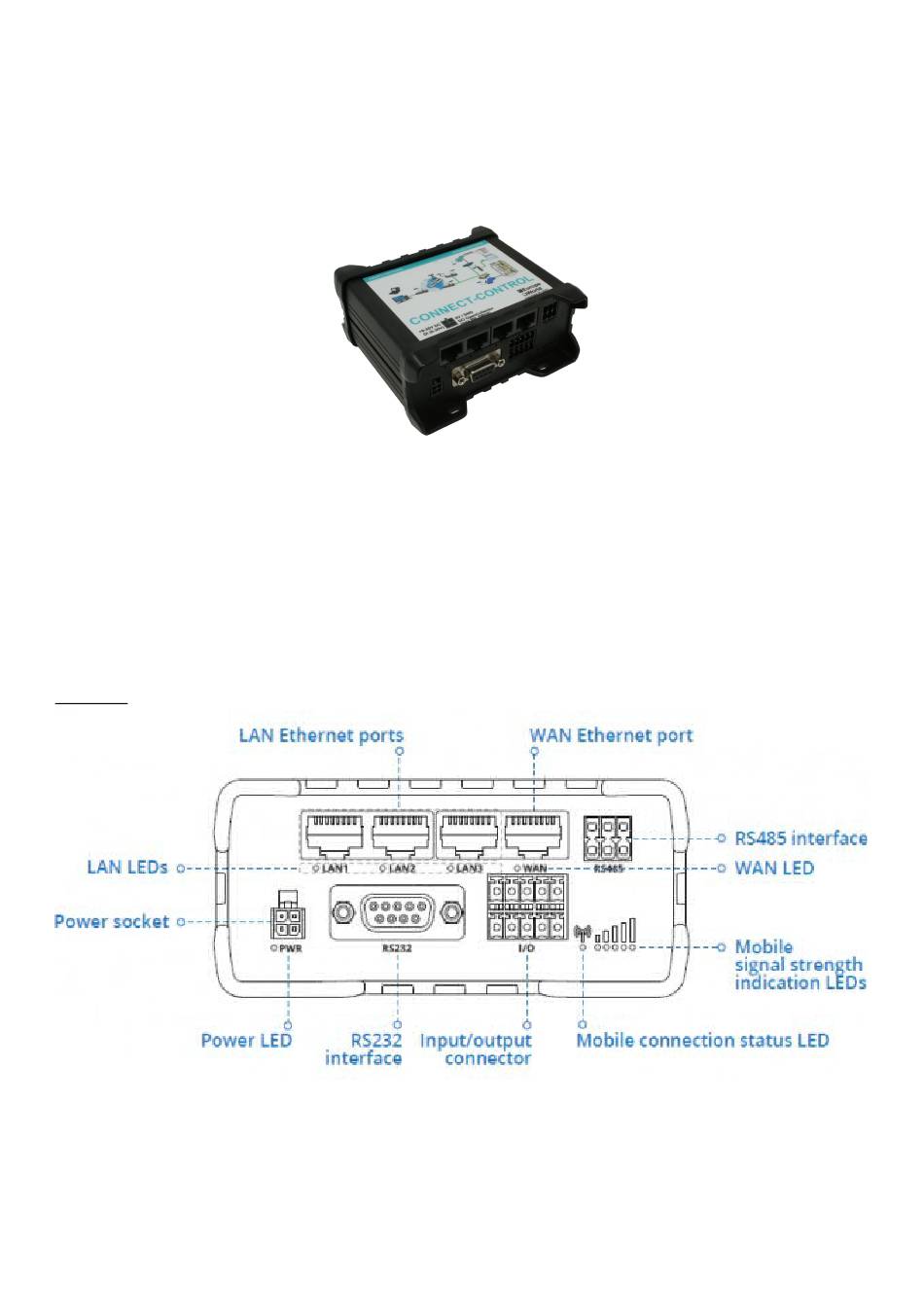

Connections:
Frontside:
Advertisement
Summary of Contents for process-informatik CONNECT-CONTROL-EUROPE
- Page 1 9354-CONNECT-CON-EUROPE Operation Quick Start Guide V1.0 for CONNECT-CONTROL-EUROPE CONNECT-CONTROL-WORLD This page contains the brief instructions for the CONNECT-CONTROL-devices. Here you will find an overview of the various components on the front and back, basic hardware installation, initial login information, device specifications and general safety instructions. It is highly recommended that you familiarize yourself with the quick start guide before using the device.
- Page 2 Backside: Power connector: Description Wire-color +9 – 30V DC Black Green White Hardware-installation 1.) Remove the SIM card slot tray(s) with the pin needle. Insert your SIM card(s) and push the tray(s) back into the router. Correct SIM card orientation can be seen in the figure below : 2.) Attach LTE, WiFi and GPS antennas 3.) Connect the power adapter to the power socket located on the front panel of the device.
- Page 3 Computer-configuration (Windows): 1.) Enable the wireless network connection (go to Start → Control Panel → Network and Internet → Network and Sharing Center. In the left panel click the Change adapter settings link. Right click on Wireless Network Connection and select Enable). 2.) Setup wireless network adapter on your computer (right click on Wireless Network Connection and select Properties.
- Page 4 5.) Choose the wireless network RUT955_**** from the list and click Connect. Enter the WiFi password located on the device's label First commissioning: Connect laptop to this WiFi network or LAN-cable in one of the 3 LAN-port and open with –...
- Page 5 – Gateway (uses own ip-address for internet connection) – LTE (uses LTE for the internet connection) Peculiarity: The APN "internet" is standard for most providers, but can be changed if necessary...
- Page 6 peripheral configuration: CONNECT + GATEWAY – – partner configuration: Explanation of parameters: device name: Device name (max. 15 characters) device number: Device number (1-65535) for assigning the connection (no double device numbers allowed, please note !) router interface: Interface of the CONNECT-CONTROL to the Internet router (depending on the Internet configuration, only sensible possible interfaces are displayed ) PC interface:...
- Page 7 Web interface (after first configuration): Open the CONNECT web interface by clicking "http://192.168.1.1" in your browser with an active WIFI- connection. Or connect your PC to the in the first-configuration specified PC-interface using a LAN-cable and enter "CONNECT" in the address-line of the browser. Click on the 3 stripes in the top left to open the device menu : Overview –...
- Page 8 The status menu shows information about the IP / MAC addresses of the connection and information about the device: IIn the Configuration menu, the expert configuration will be carried out differently from the quick commissioning of the device. For example, you can set the DHCP mode, set IP addresses, and carry out the basic configuration of the device again.
- Page 9 The status menu shows information about the IP / MAC addresses of the connection and information about the device: In the Configuration menu, the expert configuration will be carried out differently from the quick commissioning of the device. For example, you can set the DHCP mode, set IP addresses, and carry out the basic configuration of the device again.
-
Page 10: Control Device
In the Firmware Update menu, the firmware of the CONNECT-CONTROL-device is updated. To do this, download the current firmware file to your PC from the product page. With Browse you select this file and accept it. The file name is displayed in the user interface for checking. By clicking Update firmware, the firmware file is loaded into the device and burned to the flash memory after a positive check. - Page 11 Under the web-address https://www.process-informatik.de are product specific documentations or software-driver/-tools available to download. If you have questions or suggestions about the product, please don’t hesitate to contact us. Process-Informatik Entwicklungsgesellschaft mbH Im Gewerbegebiet 1 DE-73116 Wäschenbeuren +49 (0) 7172-92666-0 info@process-informatik.de https://www.process-informatik.de...
- Page 12 Remote Maintenance via keyboard and voice The MESSI remote-station will be called directly by integrated mobile-phone. If a connection comes off, digital In- and Outputs for teleswitching will be transmitted. Each device can both transmit state of things and accordingly receive switch signals. Data backup S7-PLC PN-port on SD-card via dig.
