traulux WAS215BT Quick Start Manual

4

BLUETOOTH PAIRING

Ensure the speaker is connected to the power supply and turned on.
Any Bluetooth device (such as phones, tablets, laptops etc.) is available
for pairing.
15:10 50% 15:10 50%
Settings Bluetooth Settings Bluetooth
Bluetooth Bluetooth
Location accuracy and nearby services are Now discoverable as "My iPhone".
improved when Bluetooth is turned on.
DEVICES
TADS
To pair an Apple Watch with your iPhone,
go to the Apple Watch app.
1. Open the setting menu 2. Turn on Bluetooth
and select Bluetooth. and search devices.
Note:
·There will be a prompt sound when Bluetooth is connected/disconnected.
·
Bluetooth Input has the priority when Bluetooth input and RCA input are
connected simultaneously. To listen to RCA input audio, disconnect from
Bluetooth before using a RCA input device.
·
One device can only connects or control one Bluetooth speaker at a time.
If device A connects and controls Bluetooth, device B cannot search or
control the Bluetooth speaker. Device A MUST no longer be connected,
then device B can connect and control.
·
If pairing fails the first time, restart all the equipment and then follow the
above instructions.
·
If you are unable to reconnect a previously connected device, remove the
"BT Speaker" from the list of paired devices, and then follow the above
instructions again.
·
The Bluetooth connection will be lost if the distance between the speaker
and the Bluetooth device exceeds 10m(32.8 ft.).

CARE AND MAINTENANCE

·
Turn off the power to the speaker when unused for long periods of time.
·
Ensure all equipment is turned off prior to cleaning. Surfaces and cabinet
need only occasional dusting/cleaning. Never use chemicals or solvents
as they may damage the surface. Always clean using a dry cloth.
·
Never touch the speaker drivers.

SPECIFICATIONS

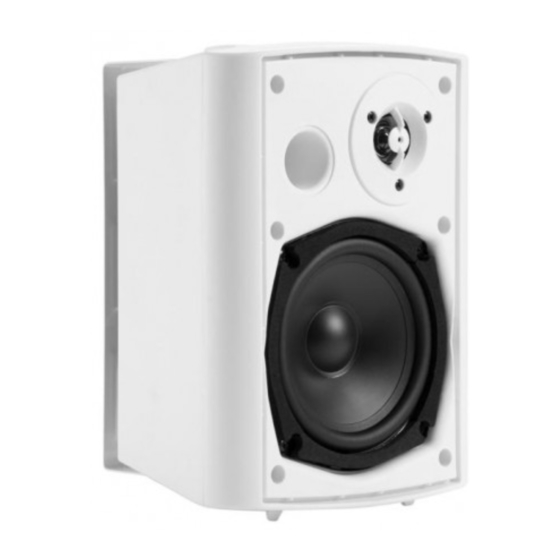

WAS215BT Bluetooth On-Wall Speaker Pair (Active + Passive)
Speaker
Woofer
Tweeter
15:10 50%
Settings Bluetooth
Frequency Response
Bluetooth
Now discoverable as "My iPhone".
Nominal Impedance
DEVICES
TADS
connected
Sensitivity(1M/1W)
To pair an Apple Watch with your iPhone, go
to the Apple Watch app.
Amplifier Power
RMS Power
Bluetooth Version
Bluetooth Distance
Power Supply
Cabinet Size
3. Click "WAS215BT" to pair
with your device.
5
Active Speaker (Master) Passive Speaker (Slave)
5.25" Paper Cone 5.25" Paper Cone
0.5" Mylar Dome 0.5" Mylar Dome
70Hz-16kHz 70Hz-16kHz
8Ω 8Ω
86dB 86dB
2x15W/8Ω /
30W
/
V5.0 /
10m(32.8ft) /
AC100-240V /
183x164x245mm 183x164x245mm
(7.2"x6.5"x9.6") (7.2"x6.5"x9.6")
INDOOR POWERED
ON-WALL
SPEAKER
(PAIR SET)
WAS215BT
