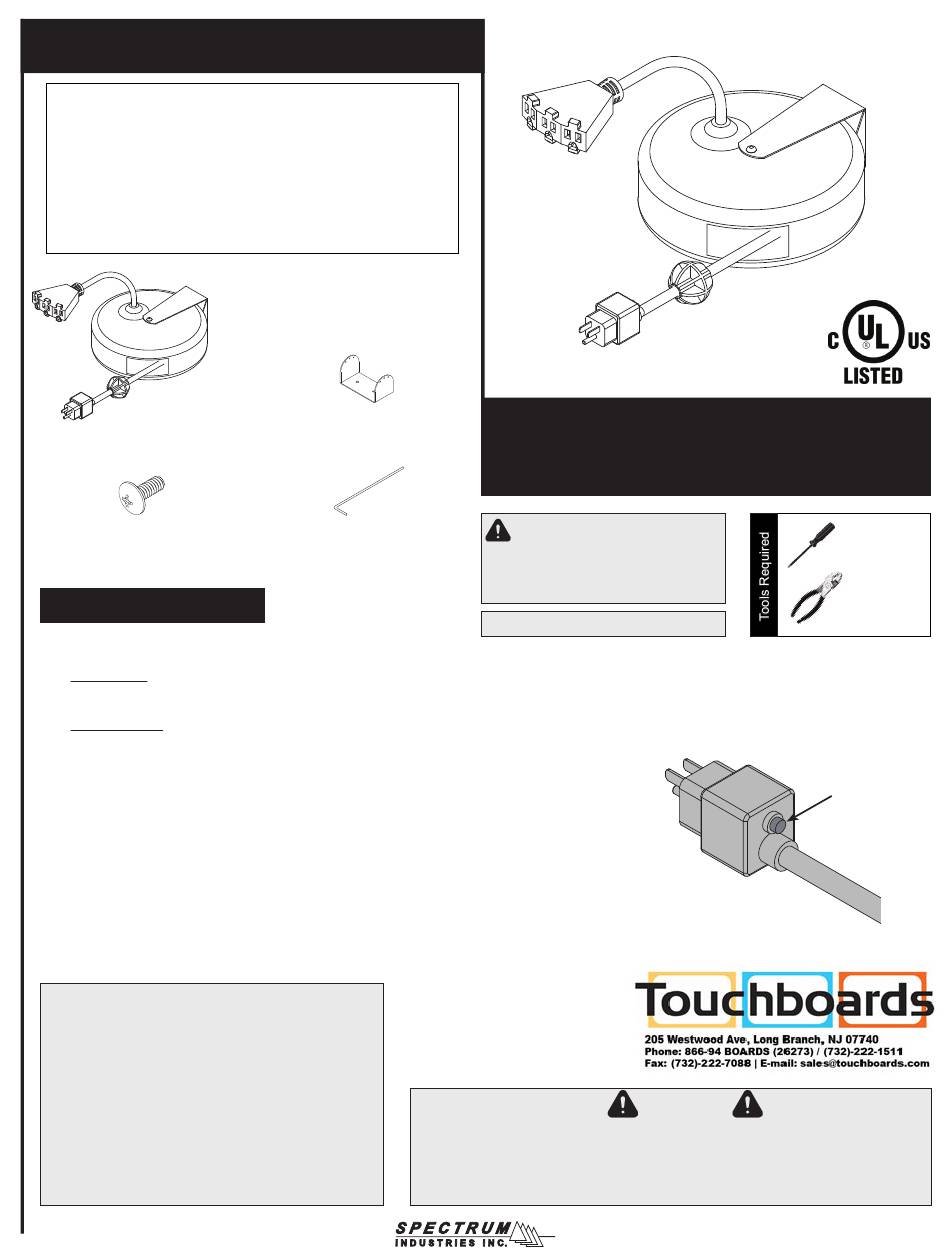

Spectrum Industries 99029 Assembly Instructions

Assembly Instructions
Before you begin, please make sure all parts and proper quantities
are included. Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regarding damage, to
purchase parts or accessories, or if you have any questions, please
contact us at:
www.spectrumfurniture.com
715-723-6750, 800-235-1262
Thank you for purchasing Spectrum products!
(1) 0114320
cord reel with 15' cord
(2) 021601
10-24 x 1/2" THMS

Cord reel operation

Operating Instructions:

1. To latch cord - Pull cord out to full length. Allow the cord to retract 1-2 feet back into
the reel. Pull the cord out slowly. When a 'click' is heard, the cord will latch in place.
2. Plug into 110-125V (single phase), 3-conductor wall outlet.
3. To release cord - Unplug from wall outlet. Pull cord out slowly until clicking stops.
The latch will release and the cord can be guided back into the reel. Do not allow the
cord to fly unrestricted back into the reel.
4. Do not overload or circuit breaker (15-amp maximum) will cut off current. To restore
power, remove overload, wait two minutes, then reset the circuit breaker by pressing
the button on the back of the 3-prong male power plug.

Maintenance:

1. Remove dirt and grime as soon as it accumulates on the reel case by using a soft,
damp cloth (a mild detergent may be used if needed), being careful not to wet
the electrical plug. Never immerse any part of the unit in any solution to clean.
DO NOT use solvents such as gasoline, turpentine, etc. to clean unit.
2. Keep cord clean to assure smoothest automatic retraction. Simply pull cord to its
full length and allow to retract through a dampened rag. Pull out full length again
and sprinkle cord with talcum powder.

Specifications:

• Steel housing with black polyester baked-on finish
• 12 AWG cord
• 15' retractable power cord with cord stop and
3-prong male plug with reset button and overcurrent
protection
• 4' pigtail with molded tri-tap female receptacle
• 1875W, 15A, 125V
• Max amp rating: 15-amp
• UL listed and cUL listed
• Includes mounting hardware
• Weight: 8 lbs
Important
(1) mounting bracket
(included with reel)
(1) connector pin
(included with reel)
Retractable Cord Reel
The cord reel is intended to provide
temporary access to electrical out-
lets for Spectrum mobile lecterns.
Check local electrical codes prior to
installation.
See p.2-3 for installation instructions.
• This cord reel is intended for general indoor use only. It is not intended to be used
in potentially dangerous locations such as flammable or explosive atmospheres.
The reel is not waterproof and not intended for use in potentially wet locations.
• Do not overload (15-amp maximum).
99029
power plug
WARNING
0106243R3 Page 1 of 4
Phillips
screwdriver
Pliers
reset button
