- Page 1 Rollators USER MANUAL Please ensure this manual is read and understood before using the product. Nov 2017...
-
Page 2: Table Of Contents
Contents Page Introduction Intended Use Technical Specification Feature Guide 4 - 7 Safety Advice Assembly 9 - 11 Folding Opening Adjustment Brake Operation & Adjustment 12 & 13 Maintenance Cleaning Warranty... -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of the Roma medical three or four wheeled rollator. These range of walkers are manufactured from high quality materials and may include a seat, small bag and locking brakes. The handles are adjustable in height and the rollator folds easily for transport or storage. -
Page 4: Feature Guide
FEATURE GUIDE (3 Wheel Model – 2320) 1. Loop brake lever 2. Brake cable adjustment 3. 20cm / 8” wheels 4. Swivel front castor 5. Folding hinge assembly Handle height adjustment hand knob... - Page 5 FEATURE GUIDE (3 Wheel Model – 2330) 1. Adjustable height push handles 2. Handle height adjustment hand knob 3. Brake tension adjustment 4. 20cm / 8” wheels 5. Swivel front castor 6. Folding hinge assembly...

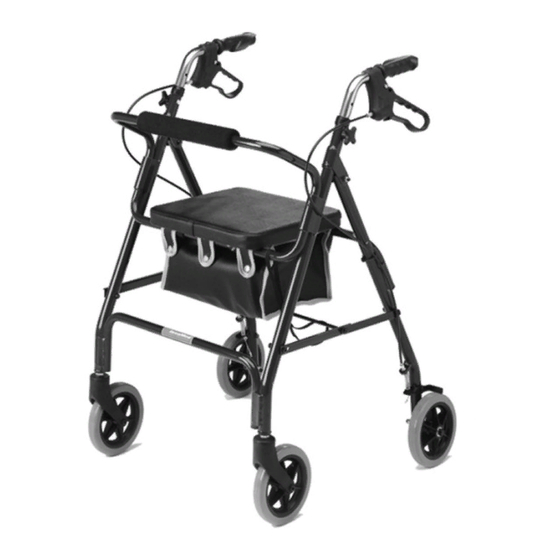

- Page 6 FEATURE GUIDE (4 Wheel Model – 2462 / 3 / 7 / 2470) 1. Loop brake lever 2. Brake cable adjustment 3. 20cm / 8” wheels 4. Swivel front castors 5. Folding hinge assembly 6. Folding ‘pull’ strap 7. Handy storage bag 8.
- Page 7 FEATURE GUIDE (4 Wheel Model – 2410) 1. Loop brake lever 2. Handle height adjustment handknob 3. Rear frame assembly 4. 20cm / 8” wheels 5. Release / unlock lever 6. Swivel front castors 7. Removeable basket 8. Brake cable adjustment 9.
-
Page 8: Safety Advice
SAFETY ADVICE This rollator is designed to be used as a mobility aid, creating a natural gate as the user walks securely with their primary weight between the handlebars with the unit in front of the user. Read this manual carefully before using your rollator ... -
Page 9: Assembly
ASSEMBLY (3 Wheel Models) Remove all packaging, ensuring wheels and tyres are free from the protective wrapping. Fit handles as described below ensuring they are at the same height. Remove outer packing from handles. Insert the handles in the down tubes of the main frame to the height required. - Page 10 ASSEMBLY (4 Wheel Models – not 2410) Remove all packaging, ensuring wheels and tyres are free from the protective wrapping. Fit handles as described previously ensuring they are at the same height. Fit the backrest by depressing the spring release buttons and push the tubes of the backrest into...
- Page 11 MODEL 2410 ASSEMBLY, OPENING & FOLDING Remove all packaging and take care not to discard the handknobs and bolts for the push handles. It is easier to fit the handles after the rollator has been opened. Open rollator holding the seat pad and gently pulling rear...
-
Page 12: Brake Operation & Adjustment
Models 2320, 2340, 2462 & 2463 These models have further adjustment at the brake as shown opposite. Turn the adjuster screw anti- clockwise to increase the... - Page 13 Continued….. achieve correct setting brake shoe should be approximately 2-3mm from the wheel (a 10p coin can be used as shown in the image). Model 2330 Rollator model 2330 uses a push down type brake where the user physically pushes down the rear of the frame to stop the rollator.
-
Page 14: Maintenance
MAINTENANCE Over a period of time the brake cables may stretch, and if no further adjustments can be made the cables should be replaced. Seek the help of your dealer when replacing brake cables. The castors should be checked that they are secure each time before using the rollator. - Page 15 Notes...
- Page 16 The guarantee excludes parts, which have been subjected to natural wear and tear during this period (Tyres and plastic parts). Model No:…………………………… Serial No:……………………………. Purchase Date:…………………….. Dealer’s Stamp Roma Medical Aids Ltd. York Road, Bridgend Industrial Estate, Bridgend. CF31 3TB Tel: 01656 674488 Fax: 01656 674499 Email: sales@romamedical.co.uk...
