Lekolar 119366 Assembly Instructions

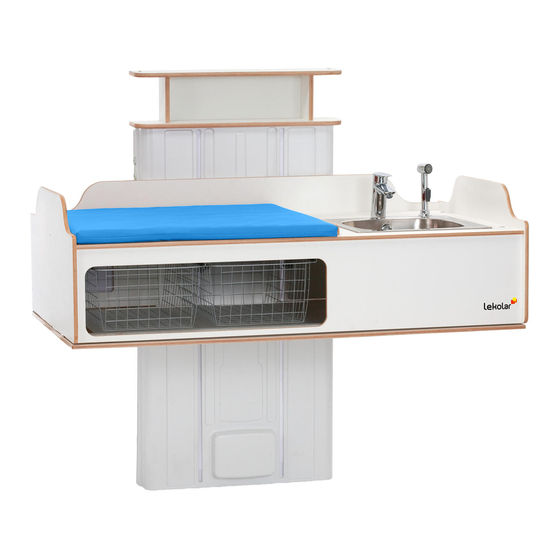

Assembly instructions Changing table Elise wall mounted with and without sink.
(Item.nr 119366, 119367, 35441, 35442 and 35446)
•
The changing table must be mounted on a free surface without nearby fixed obstacles on the
walls.
•
The floor must be stable and leveled.
•
Position the changing table so that there is no risk of squeezing adjacent objects. It is the
installer and the user's responsibility to position the changing table so that there is no risk of
squeezing. Remember that you as a user are responsible for ensuring that no one is harmed.
•
The distance to adjacent objects should be as following:
- No openings between 7 and 12 mm
- No openings between 25 and 45 mm
- No openings between 65 and 223 mm
•
The changing table must be mounted as low as possible.
•
The adjustable feet on the stand are there to make it easier to get the changing table in
balance (horizontal position).
•
Electrical connection must be made via a standard 230V socket with timer.
This equipment must not be permanently connected to the mains.
•
Water and drains must be connected by a qualified installer.
•
The table must not be loaded with more than a maximum of 40kg in the
stationary position and 20kg in the driving position.
•
Ladder shall not be mounted due to low minimum height.
•
If any part of the changing table is damaged or if there is a suspicion of
damage, take the changing table out of operation immediately.
Disconnect the power supply and contact your supplier.

Use

The table is intended for care, laundry, diaper changes, etc. of small children in kindergartens,
preschools and similar functions.
•
All other use is prohibited and falls outside the product / supplier's product
liability.
