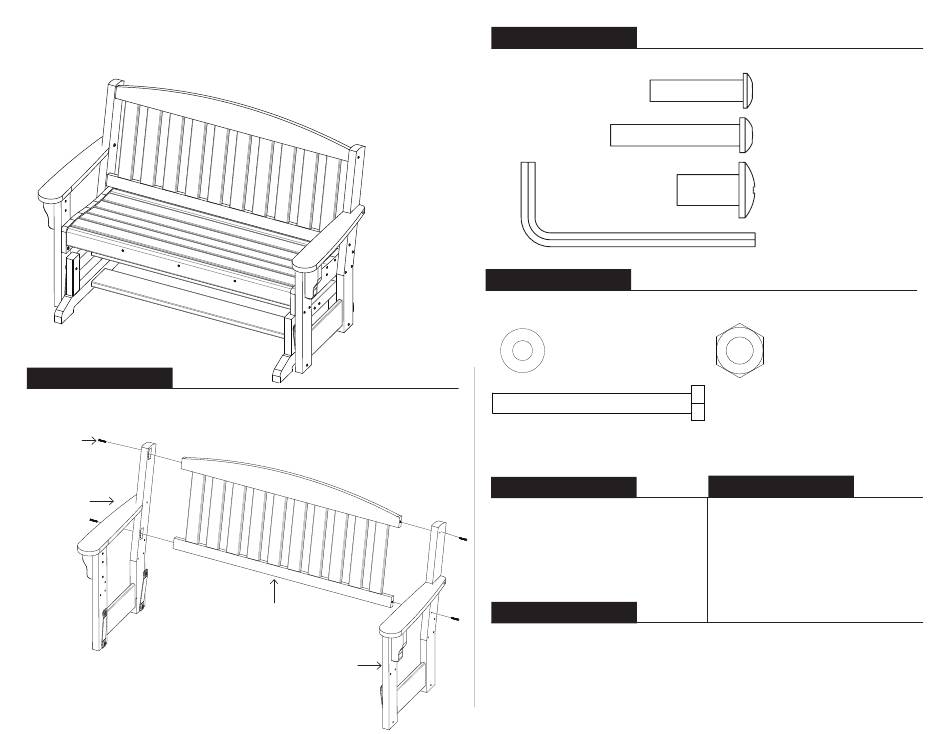

DURAWOOD GLIDER
I N ST R U C T I O N S
ASSEMBLY
STEP 1. Attach Glider Back to left and right arm assemblies using
(4) 1.5" barrel bolts.
1.5" BARREL
1.5" BARREL
BOLT
BOLT
RIGHT ARM
RIGHT ARM
ASSEMBLY
ASSEMBLY
GLIDER BACK
GLIDER BACK
LEFT ARM
LEFT ARM
ASSEMBLY
ASSEMBLY
HARDWARE PACK
Hardware Pack Weight: 3.5 oz.
HARDWARE PACK 2
Hardware Pack Weight: 3.5 oz.
(16) 5/16" WASHERS*
CHAIR PARTS BOX 1
• GLIDER BACK
• GLIDER SEAT
• (2) GLIDER LEG ASSEMBLY
• (2) GLIDER FRAME SPREADER
SUGGESTED TOOLS
• RUBBER MALLET
• PHILLIPS HEAD SCREWDRIVER
• 1/2" WRENCH OR SOCKET
(12) 1.5" BARREL BOLTS
(12) 2" BARREL BOLTS
(12) BARREL NUTS
(1) ALLEN WRENCH
(4) 5/16" LOCK NUTS*
(4) 5/16" DIA 2.5" HEX BOLTS*
* Used for attaching to glider frame
CHAIR PARTS BOX 2
• LEFT ARM ASSEMBLY
• RIGHT ARM ASSEMBLY
