Summary of Contents for TM Easytherm 1

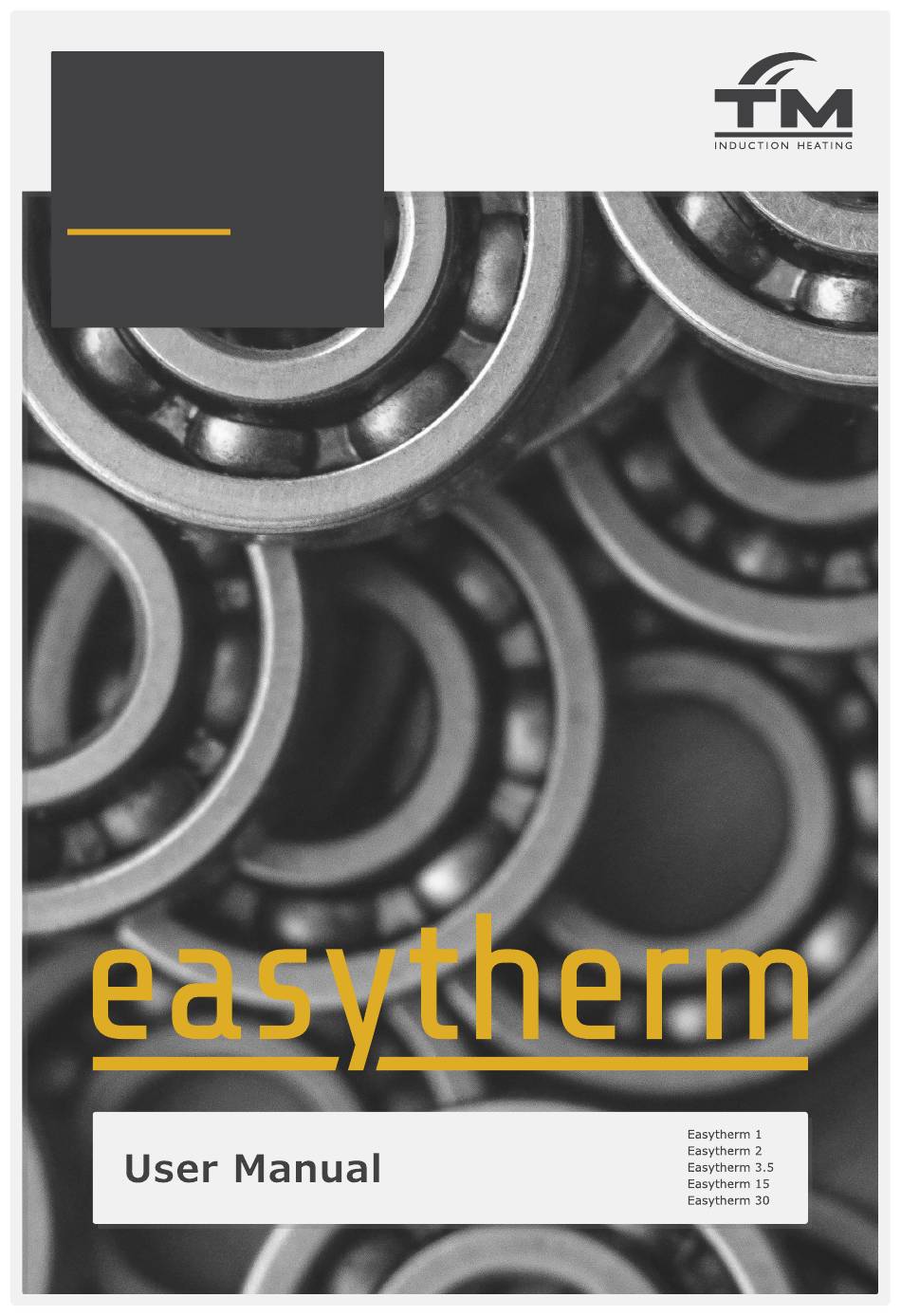

- Page 1 BEARING INDUCTION HEATER INDUKTIONS-ANWÄRMGERÄT FÜR LAGER CHAUFFAGE PAR INDUCTION DE ROULEMENTS INDUCTIEVERHITTER VOOR LAGERS CALENTADOR POR INDUCCIÓN DE RODAMIENTO...
-
Page 2: Table Of Contents
Check delivery for possible damage caused by transport without delay. Should damage be detected, please inform carriers immediately. As our products are subject to continuous improvement, we reserve the right to make changes. ADDRESS TM Induction Heating tminductionheating.com Nobelstraat 14 MAIL info@tminductionheating.com... -
Page 3: Induction Heating
SAFETY INSTRUCTIONS The operating instructions should always be followed when using an induction heater. TM Induction Heating shall not be held liable for damages caused by improper handling or by use which does not comply with the designated purpose. - Page 4 Use protective gloves as protection against burns to hands. The gloves delivered are suitable for use up to temperatures of 240°C (464°F). Hot surface, avoid contact Do not operate an induction heater in areas where there is risk of explosion. Wear safety shoes TM INDUCTION HEATING ET 2.0 |...
- Page 5 MP1y (30 cm) MP2y (60 cm) MP3y (90 cm) Total 50Hz RMS field for magnetic measurement results. Max. magnetic flux in safe exposure area, according to the German BG 11 Regulations is 423 µT. TM INDUCTION HEATING ET 2.0 |...
-
Page 6: Installation & Workpiece Set-Up
INSTALLATION & WORKPIECE SET-UP SCOPE OF DELIVERY 1. Easytherm 1 / 2 / 3.5 / 15 / 30 2. Yoke(s) 3. Magnetic temperature sensor 4. Support rails 5. Heat-resistant gloves 6. User Manual INSTALLATION Remove all packing material and place the induction heater on a non-ferrous, stable, flat surface. - Page 7 (on the yoke). Using a heavier workpiece may cause the induction heater to tip over, causing personal injury and damage to the heater. TM INDUCTION HEATING ET 2.0 |...
-
Page 8: Operation
OPERATION TEMPERATURE MODE Available on Easytherm 1 / 2 / 3.5 / 15 /30 When the operator switches the heater on, the LED display will show 110°C (230°F). With the buttons labeled UP and DOWN you can increase or decrease the temperature. The temperature range for Easytherm is from 0°C (32°F) to 240°C (484°F). -
Page 9: Maintenance
Proper maintenance and handling practices are critical. Failure to follow installation and maintenance instructions can result in equipment failure, creating a risk of serious bodily harm. TM INDUCTION HEATING ET 2.0 |... -
Page 10: Troubleshooting
4. Turn on the heater and start a heating cycle. A bearing is not required. 5. Fasten the bolts again during the heating cycle. 6. Stop the heating cycle and the yokes are now adjusted. TM INDUCTION HEATING ET 2.0 |... - Page 11 Isolate the induction heater and contact your local distributor. If in any doubt, isolate the induction heater and contact your local distributor. You can find the contact details for your nearest distributor on www.tminductionheating.com/distributors. TM INDUCTION HEATING ET 2.0 |...
-
Page 12: Technical Data
Max. Weight (kg) The dimensions shown above are theoretical. In practice there are multiple factors (e.g. workpiece weight, material and placement) that influence the possibility and/or the time needed to heat the workpiece properly. TM INDUCTION HEATING ET 2.0 |... - Page 13 70 x 70 Ø ≥100 ✖ ✖ ✖ ✔ ⭕ Included ✔ Optional ⭕ 80 x 80 Ø ≥115 ✖ ✖ ✖ ✖ ✔ ✖ Not available ELECTRICAL DRAWINGS Easytherm 1 / 2 Easytherm 3.5 TM INDUCTION HEATING ET 2.0 |...
-
Page 14: Statement Of Conformity
European regulations; CE compliant. As CE marking is a mandatory conformity marking for products sold within the European Economic Area these declarations do not cover any regions outside Europe. However, these declarations do ensure the quality of TM Induction Heating products. TM INDUCTION HEATING... - Page 15 We hereby declare that the supplied version of Product Induction heater Type Easytherm 1 / 2 / 3.5 / 15 / 30 This product complies with technical standards specifications as defined by MACHINE DIRECTIVE 2006/42/EC, LOW VOLTAGE DIRECTIVE 2014/35/EU and EMC DIRECTIVE 2014/30/EU.
- Page 16 User Manual Easytherm v2.0 - 2022...
