Solarwatt Solar Panel Pole-Mount Kit
INTRODUCTION
Thank you for choosing the Solarwatt solar panel pole-mount kit. These Solarwatt pole-mount kits
are compliant with the Australian / New Zealand Standard on Wind Actions
(AS.NZS 1170.2:2011).
Please read these guidelines completely before proceeding.
Model
SMP-5-10W
SMP-20-30W
SMP-40-50W
They are intended for mounting on a 50mm diameter secured steel pole.
WHATS INCLUDED IN THE KIT
1.
Part Assembled pole mount and rail
2.
Pole mount U bolt clamp kit (including nuts & washers)
3.
2 x 28mm end clamps (including hardware)
INS-42276-1
Installation Guide

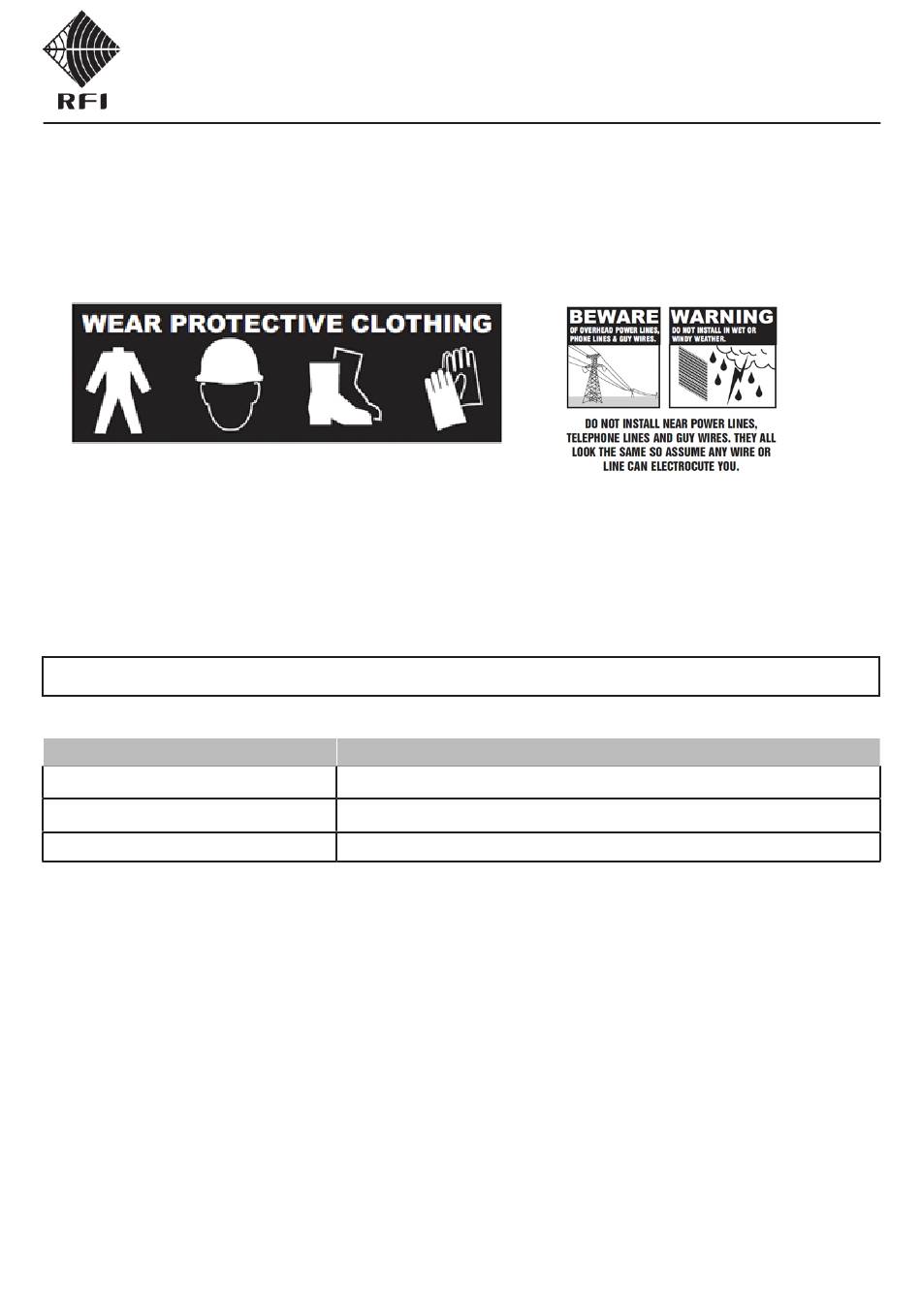

Please Ensure, SAFETY AT ALL TIMES
Module Sizing
5 & 10 Watt Solarwatt Modules (up to 235mm wide)
20 & 30 Watt Solarwatt Modules (up to 355mm wide)
40 & 50 Watt Solarwatt Modules (up to 540mm wide)
rfi.com.au
1
Advertisement
Table of Contents
Summary of Contents for RFI SMP-5-10W
- Page 1 Australian / New Zealand Standard on Wind Actions (AS.NZS 1170.2:2011). Please read these guidelines completely before proceeding. Model Module Sizing SMP-5-10W 5 & 10 Watt Solarwatt Modules (up to 235mm wide) SMP-20-30W 20 & 30 Watt Solarwatt Modules (up to 355mm wide) SMP-40-50W 40 &...
- Page 2 30 foot-pounds. Torque the bracket/rail bolts to 30 foot-pounds (40 newton-metres). Torque module bolts to 15 foot-pounds (20 newton- metres). If desired, install the self-tapping screws to permanently fix the angle of the pole kit/PV module assembly. INS-42276-1 rfi.com.au...
- Page 3 Region C areas (66m/sec) are generally referred to as cyclonic and are generally limited to northern coastal areas. Most Region C zones end 100km inland. • Region D (80m/sec) Australia’s worst Cyclonic Region between Carnarvon and Pardoo in Western Australia. Solar Panel Size SMP-5-10W SMP-20-30W SMP-40-50W 250 x 185 x 25mm Region A, B, C & D 335 x 235 x 25mm Region A, B, C & D 430 x 345 x 25mm Region A, B, C &...
- Page 4 The benefits provided to you under this warranty are in addition to any other rights or remedies you may have, as a consumer, under any other law which applies to RFI products. RFI goods come with guaranties that cannot be excluded under the Australian Consumer Law.
