Summary of Contents for Kedacom KB-30
- Page 1 KEYBOARD KB-30 (Ver.B) User Manual...

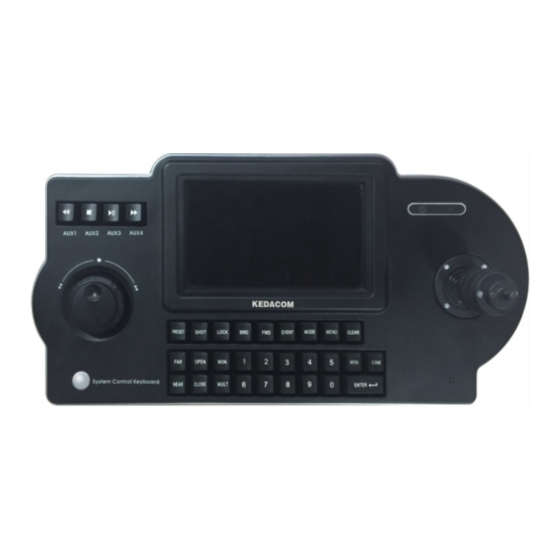

- Page 2 Introduction of KB-30 (Ver.B) KB-30 is a useful auxiliary device in a complete surveillance system. It connects to VMS through LAN and could control cameras remotely and could perform PTZ control and video wall scheduling on PTZ cameras. KB-30 (Ver. B) supports video compression of H.264 and H.265.
- Page 3 1.3 Interface HDMI NET RS232/422 POWER HDMI RS232/422 POWER 1.4 Panel Introduction...
- Page 4 Focal Length Aperture Display Screen Indicator Vector Joystick SHOT MODE PRESET CLOSE NEAR OPEN ENTER Part/Key Function Note Display function menu: when operating, the screen displays the operation; Display display menu display live video. Screen power indicator When the keyboard is powered on, the red indicator will always be on. Indicator Operate to rotate the PTZ holder in any direction at different speed and rotate the joystick to zoom in or zoom out the camera.
- Page 5 To save or load preset positions. It needs to be used in groups. Please refer to preset position PRESET 1.6.4 and 1.6.5. To save preset positions. It needs to be used in groups. Please refer to 1.6.4. SHOT shot Press [MODE] to switch between scheduling mode and direct connection to camera. MODE mode Delete input values;...
- Page 6 2. Login. Open browser on PC and enter keyboard IP address. On the popup interface, input username: admin and password: 12345. [Note] Support browser IE 6 and IE8. 3. Configure VMS IP address. Go to System set > Advanced option > Control device, as shown in Picture 7. Fill parameters according to the actual setting and click “Save”.
- Page 7 Port Num: Local preview COM port of the keyboard, default 554. [Note] After configuring Stream Path, when the video source is displayed on video wall, the keyboard can also browse the video on its screen locally. KB-30(Ver.B) supports H.264 and H.265 video compression for local view. Link Mode...
-
Page 8: Main Functions
1.6 Main Functions After networking and setting the keyboard, it can realize functions such as displaying video source and scheme on video wall, PTZ operations on camera, preset position setting and loading. 1.6.1 Display Video Source on Video Wall Use keyboard to display video source on video wall. Then perform PTZ operations, preset position setting and loading. - Page 9 position and press number > [SHOT]> [PRESET]. [Note] If the camera has not been displayed on the video wall, display its video on the video wall first. Please refer to 1.6.1 for detailed steps. 1.6.5 Load Preset Position Saving the usual camera positions and zooming (field of view) as preset positions can facilitate loading and viewing them.
