Soss UltraLatch Instructions

Instructions for changing Privacy Stops from standard
Pull Side Configuration to Push Side Configuration
Tools needed to Change SOSS®
UltraLatch® Privacy Stops
• #2 Sq. Drive Screwdriver (Robertson)
• #2 Phillips Screwdriver (Asian Model)
1
• / " (1.59mm Hex Bit)
16
1

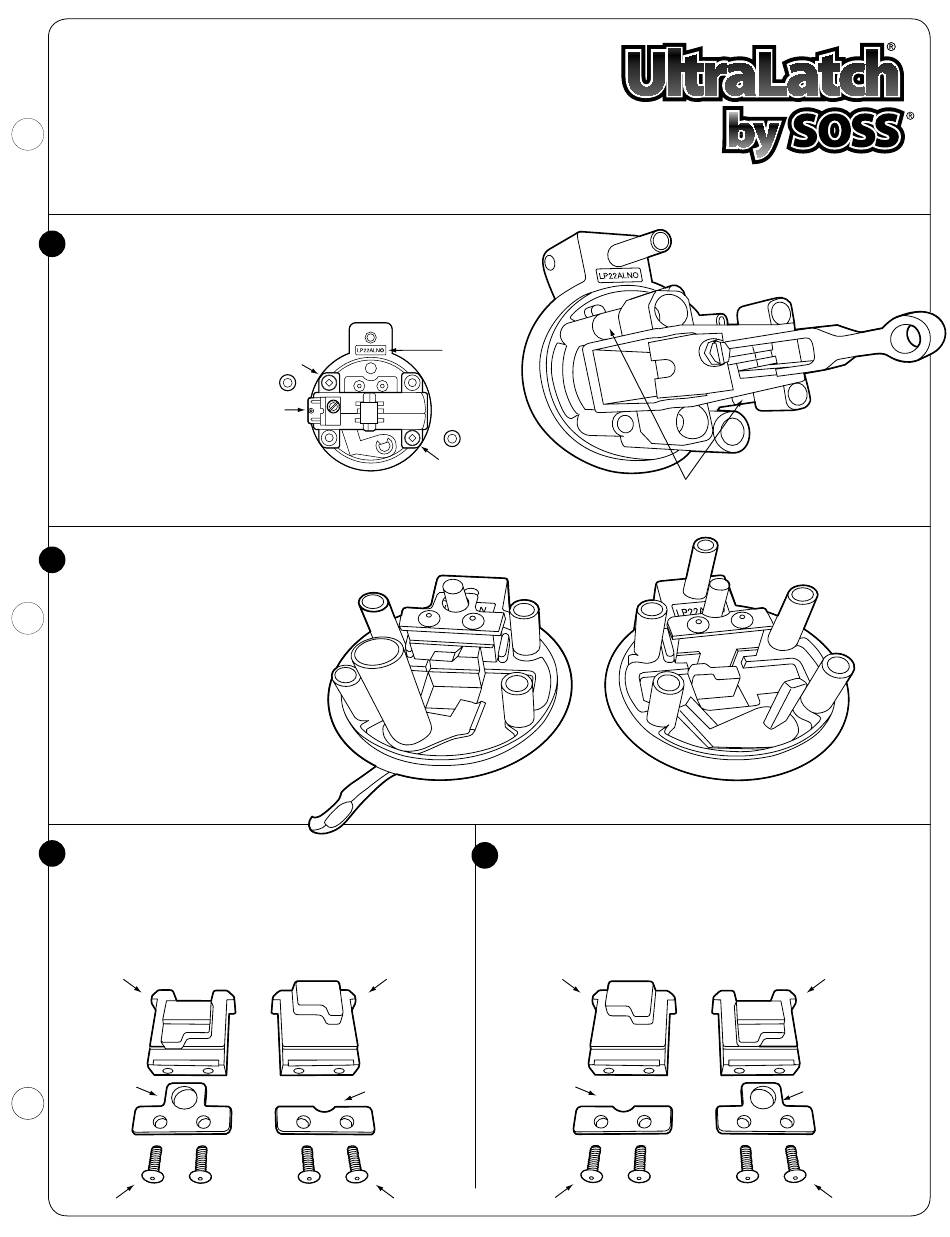

Chassis Disassembly

Use #2 square drive or #2 phillips screwdriver to remove chassis
from lock side unirose. The unirose will be stamped with either
part # LP22ALNO or # LP22ALEO.
If this is a 2" door installation (L3)
there will be spacers between
the chassis and unirose
at the 4 and 10
o'clock positions.
2" Doors Only
Chassis faces
9 O'clock Position
2

Separate Unirose Bodies

Separate the unirose bodies as shown
in the illustration. The latch side unirose
will be stamped with part # LP22ALN
or # LP22ALE. The lock side unirose will
be stamped with part # LP22ALNO or
# LP22ALEO.
3

Remove Stop and Retainers

Use 1/16" (1.59 mm) hex bit to remove stops and retainers from
above assemblies and layout as shown below. The stops will be
stamped with their part numbers LPBAA3 and LPBAA4.
Note: The stop part numbers are located on the back side of
the part.
Stop
Part # LPBAA3
3-Hole Retainer
Screws
Screw at
10 O'clock
Spacer for
Unirose Set Up for
Left Hand Door (Factory Setup)
Latch Side Unirose
Stop
Part # LPBAA4
2-Hole Retainer
Screws
Screw at
Part #
10 O'clock
Stamp
Location
Spacer for
2" Doors Only
Spacer for
2" Doors Only
Screw at
4 O'clock
Right Hand Door (Chassis Rotated 180°)
4

Orient Stops

Orient the stops into position shown below.
Stop
Part # LPBAA4
2-Hole Retainer
Screws
1
Chassis faces
3 O'clock Position
Spacer for
2" Doors Only
Screw at
4 O'clock
Unirose Set Up for
Spacer Locations
Lock Side Unirose
Stop
Part # LPBAA3
3-Hole Retainer
Screws
