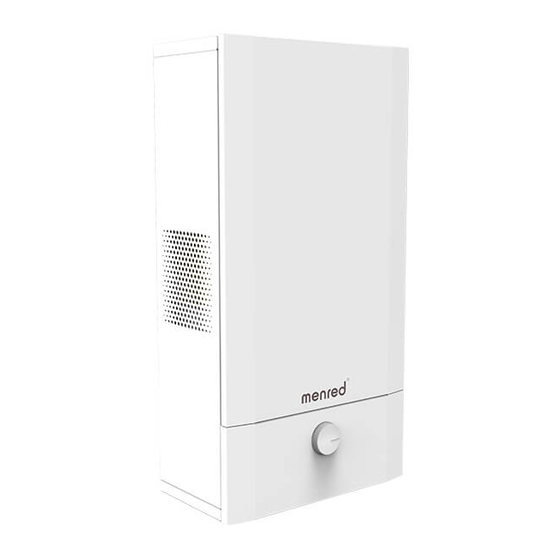

Summary of Contents for Menred Mair IT90
- Page 1 User Manual Wall Mounted Ventilator ( IT90)
- Page 2 Air outlet High efficiency filter Front panel Return air inlet Return air primary filter Packing list Medium efficiency filter Unit(pcs) Primary efficiency filter Host Rotary switch User Manual Serial number Bar code Certificate of quality Screws package Wall pipe www.menred.com...
- Page 3 2.MENRED ventilation equipment must be installed by professional technicians. 3.If users install the product by themselves, or by their own installation material, MENRED will not be responsible for any consequence or loss (such as pipe leakage, machine crash, abnormal operation or use because of improper installation, damage etc.).
- Page 4 Performance parameter Model Power V/Hz) Air volume m /h) Power W) Noise dB(A)) Weight kg) 220/50 IT90 Note: if the design changes, the above data will be modified without prior notice. Please refer to the product for the exact size. www.menred.com...
- Page 5 Make sure that there is no obstacle within 50mm in the right foaming agent in the four holes and cut off the redundant wall pipes. side of the machine when repairing and maintaining. 5.Hang the machine on the mounting board and fix it by screws. www.menred.com...
- Page 6 Primary efficiency filter: effectively block particles greater than PM10. Medium efficiency filter: intercept particles with diameter above 2.5um, efficiently protect filters and prolong the high efficiency filter working life. High efficiency filter: efficiently filter PM2.5. Large dust capacity and low wind resistance. www.menred.com...
- Page 7 When the switch is in the figure 4 position, the ventilator is in gear 3 and the air volume is 70m3/h. When the switch is in the figure 5 position, the ventilator is in gear 4 and the air volume is 90m3/h. www.menred.com...
